IMBA-C604EP ATX Server Board
Page 37
Pin Description Pin Description
1 LCLK 2 GND2
3 LERAME# 4 KEY
5 LRESRT# 6 +5V
7 LAD3 8 LAD2
9 +3V 10 LAD1
11 LAD0 12 GND3
13 SCL 14 SDA
15 SB3V 16 SERIRQ
17 GND1 18 GLKRUN#
19 LPCPD# 20 LDRQ#
Table 3-20: TPM Connector Pinouts
3.2.22 USB 2.0 Connectors
CN Label: USB1, USB2, USB3
CN Type: 10-pin header
CN Location: See Figure 3-23
CN Pinouts: See Table 3-21
The USB connectors connect to USB 2.0/1.1 devices. Each pin header provides two USB
2.0/1.1 ports.

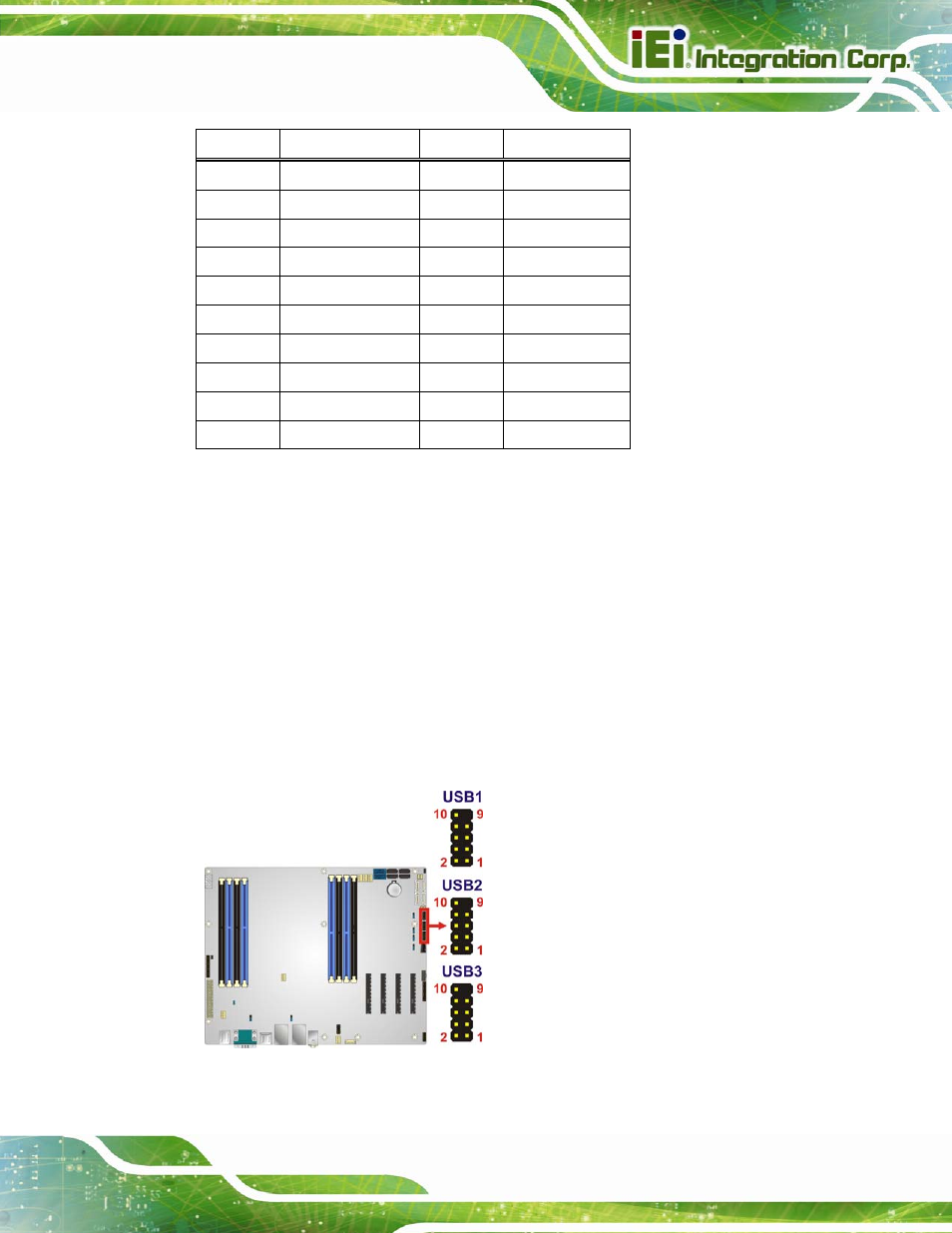

Figure 3-23: USB 2.0 Connector Pinout Locations
