IMBA-C604EP ATX Server Board

Page 36

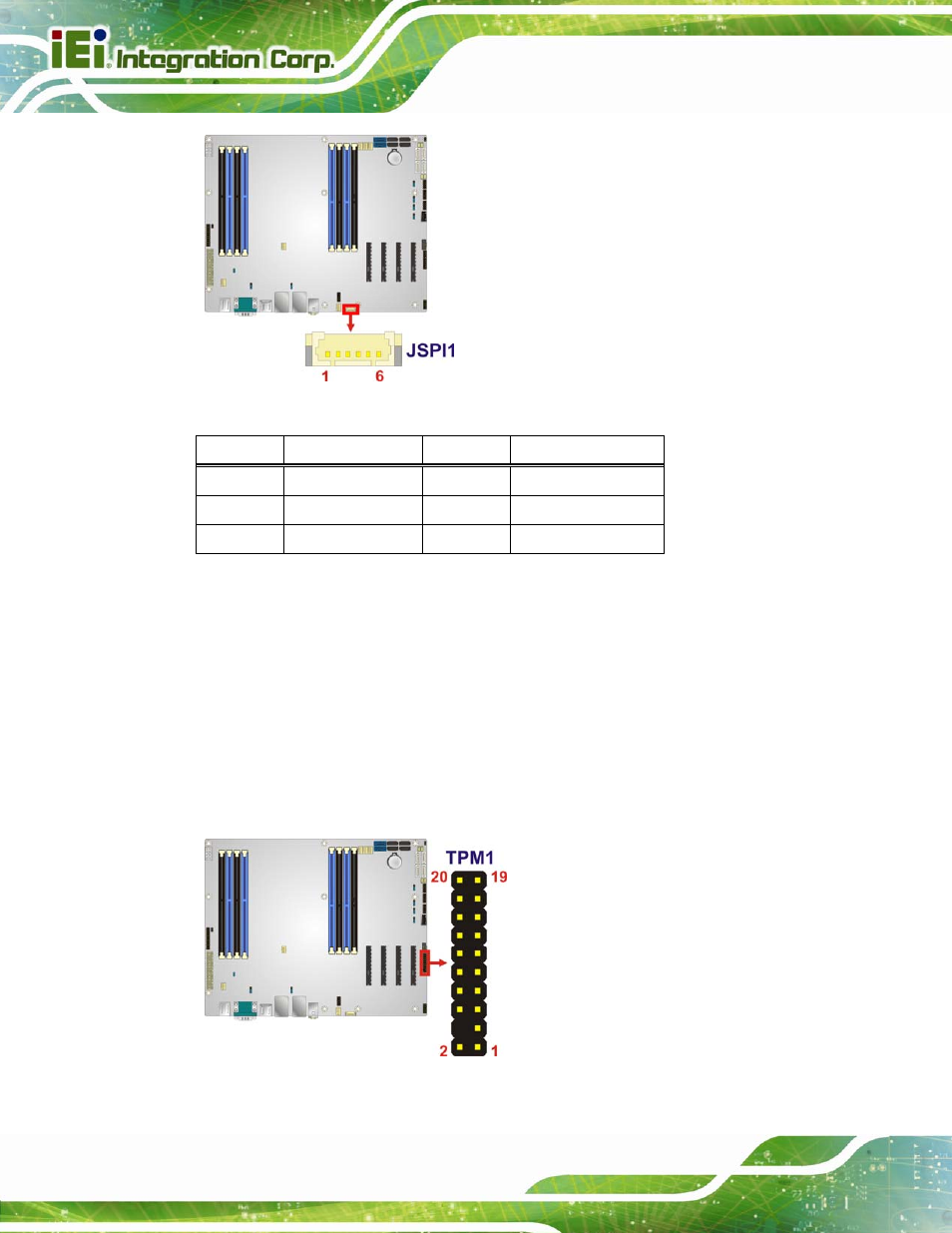

Figure 3-21: SPI ROM Connector Location

Pin

Description

Pin

Description

1

SPI_VCC

2

SPI_CS#

3

SPI_SO

4

SPI_CLK

5

SPI_SI

6

GND

Table 3-19: SPI ROM Connector Pinouts

3.2.21 TPM Connector

CN Label:

TPM1

CN Type:

20-pin header

CN Location:

See Figure 3-22

CN Pinouts:

See Table 3-20

The TPM connector connects to a TPM module.

Figure 3-22: TPM Connector Location
