IMBA-C604EP ATX Server Board

Page 23

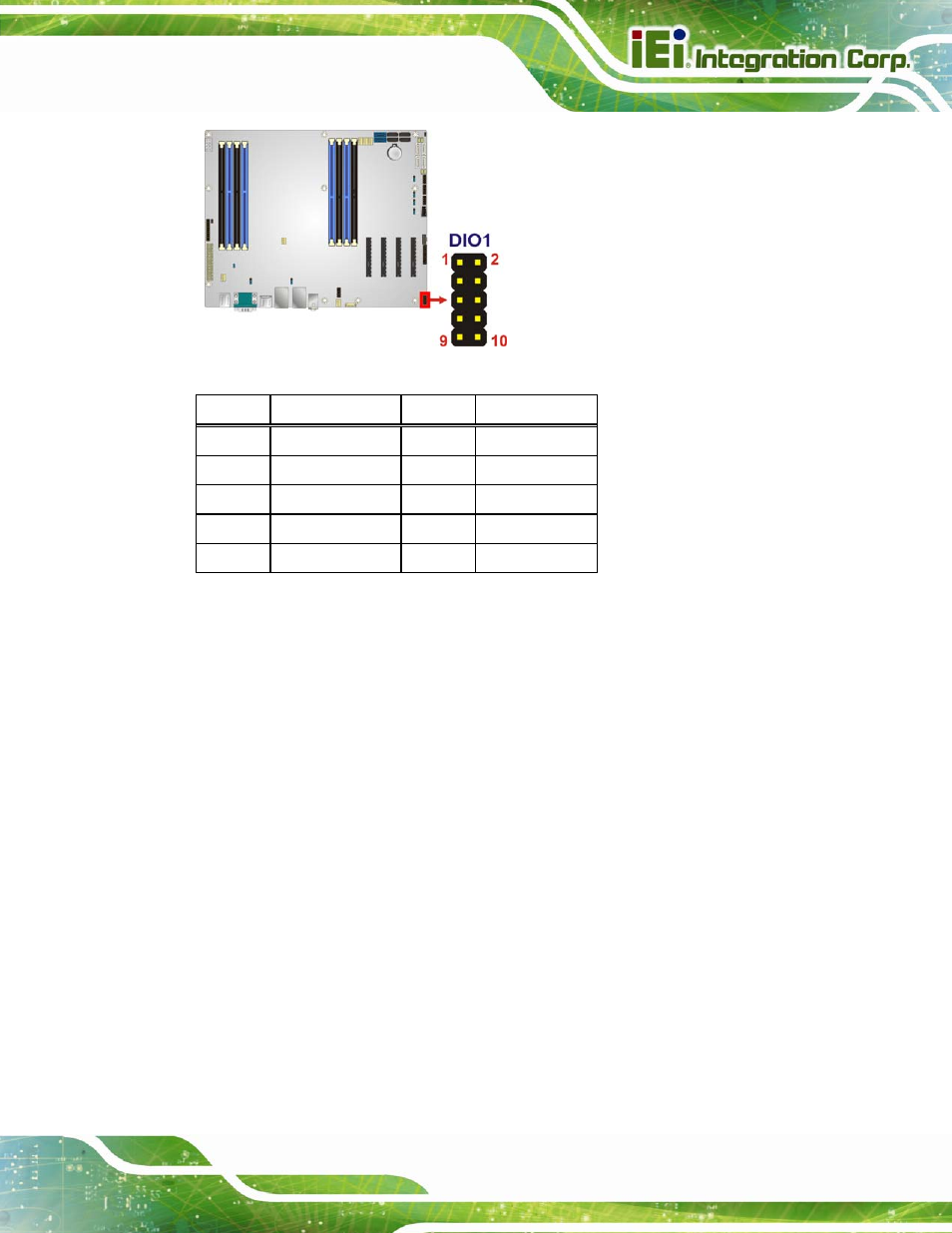

Figure 3-7: Digital I/O Connector Location

Pin

Description

Pin

Description

1

GND

2

VCC

3

Output 3

4

Output 2

5

Output 1

6

Output 0

7

Input 3

8

Input 2

9

Input 1

10

Input 0

Table 3-6: Digital I/O Connector Pinouts

3.2.7 Fan Connector (CPU)

CN Label:

CPU_FAN1

CN Type:

4-pin wafer

CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-7

The fan connector attaches to a CPU cooling fan.
