IMBA-C604EP ATX Server Board

Page 33

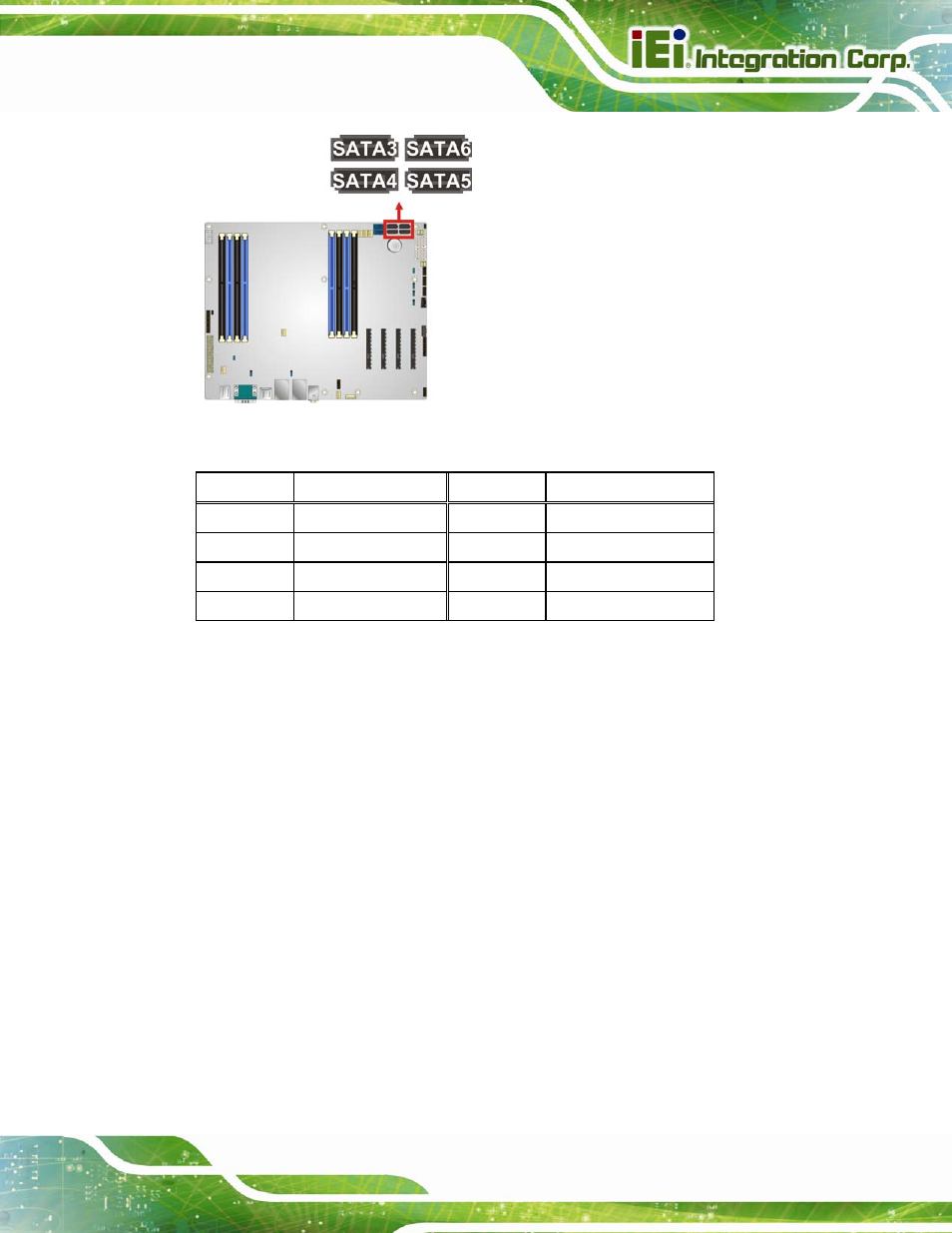

Figure 3-18: SATA 3Gb/s Drive Connector Locations

Pin Description Pin Description

1 GND

5 RXN

2 TXP

6 RXP

3 TXN

7 GND

4 GND

Table 3-16: SATA 3Gb/s Drive Connector Pinouts

3.2.18 SATA 6Gb/s Drive Connectors

CN Label:

SATA1, SATA2

CN Type:

7-pin SATA connector

CN Location:

See Figure 3-19

CN Pinouts:

See Table 3-17

The SATA drive connectors can be connected to SATA drives and support up to 6Gb/s

data transfer rate.
