IMBA-C604EP ATX Server Board
Page 44

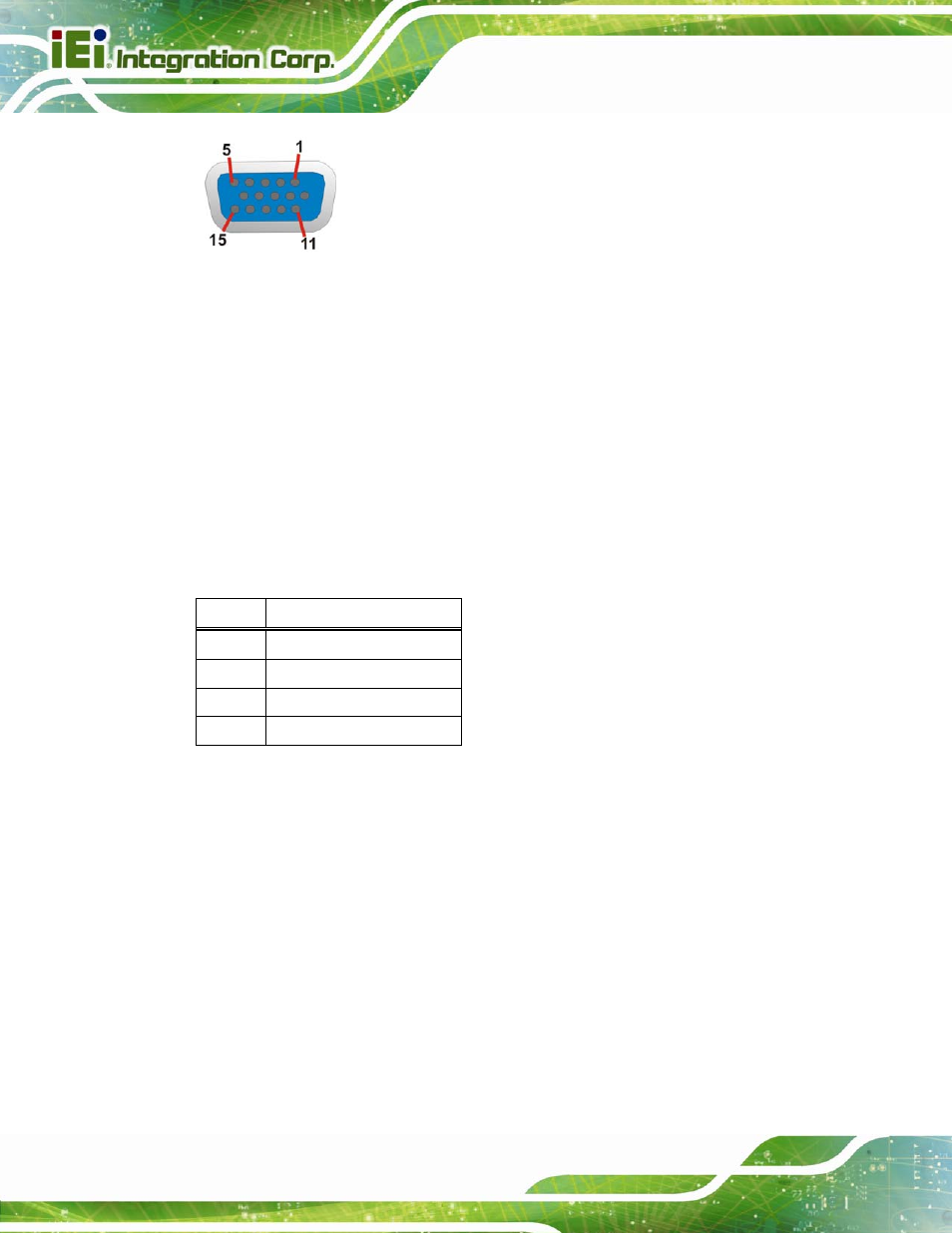

Figure 3-30: VGA Connector
3.3.6 USB 2.0 Connector
CN Label: LAN2_USB01_1
CN Type: USB 2.0 port
CN Location: See Figure 3-25
CN Pinouts: See Table 3-32
The IMBA-C604EP has four external USB 2.0 ports. Each USB 2.0 port can be connected
to a USB 2.0/1.1 device.
Pin Description
1 VCC
2 DATA-
3 DATA+
4 GND
Table 3-32: USB 2.0 Port Pinouts
