Page 42

IMBA-C604EP ATX Server Board

Page 26

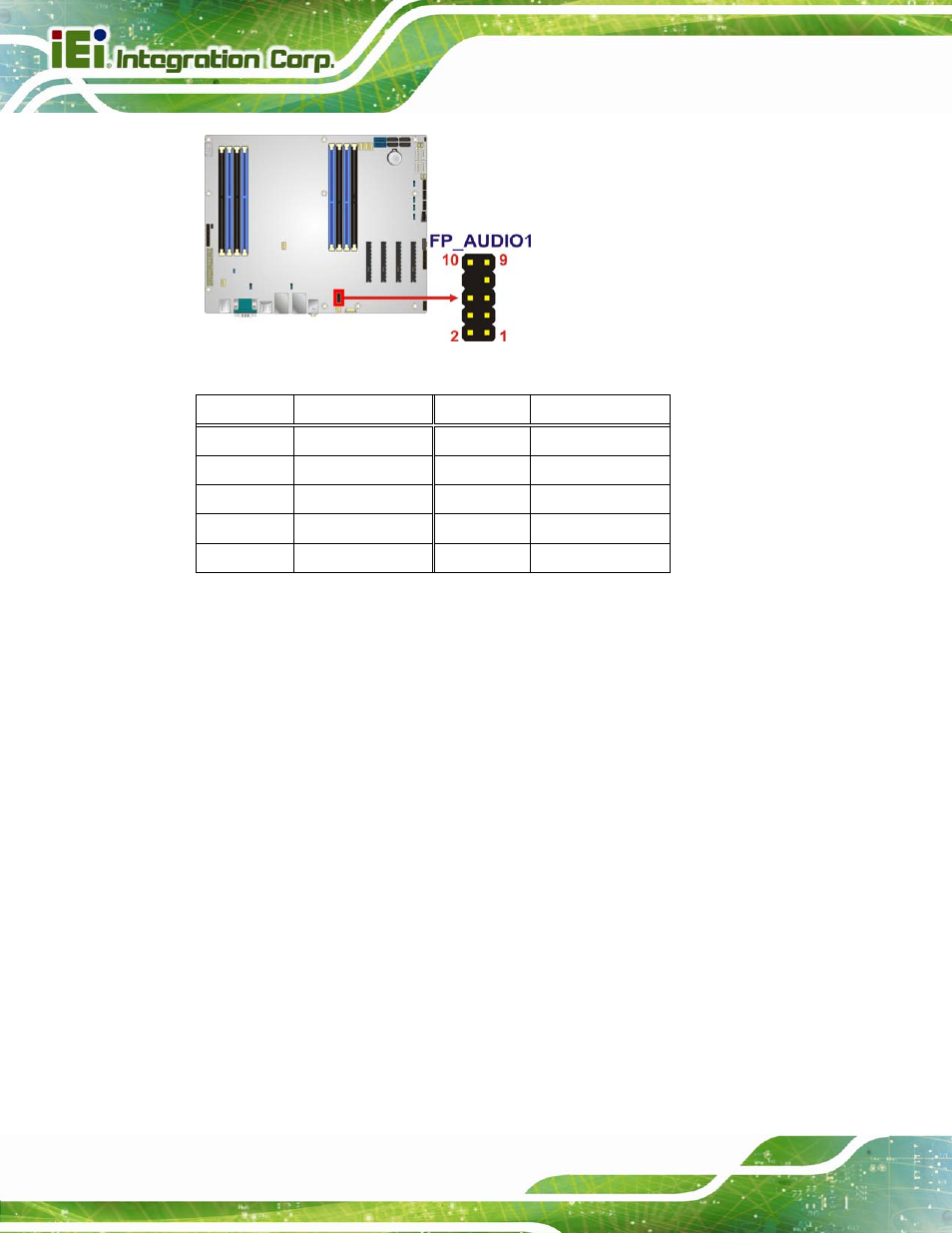

Figure 3-10: Front Panel Audio Connector Location

Pin Description

1 LMIC2_L 2 AUD

GND

3 LMIC2_R 4 PRESENCE#

5 LLINE2-R

6 MIC2-JD

7 F_SENSE 8 NC

9 LLINE2-L 10

LINE2-JD

Table 3-9: Front Panel Audio Connector Pinouts

3.2.10 Front Panel Connector

CN Label:

SSI_F_PANEL1

CN Type:

24-pin header

CN Location:

See Figure 3-11

CN Pinouts:

See Table 3-10

The front panel connector connects to the indicator LEDs and buttons on the computer's

front panel.
