IMBA-C604EP ATX Server Board
Page 41
Pin Description Pin Description
1 VCC 2 DATA-
3 DATA+ 4 GND
Table 3-25: USB 2.0 Port Pinouts
3.3.3 Ethernet and USB 3.0 Connectors
CN Label: LAN1_USB3_1
CN Type: RJ-45 and USB 3.0 ports
CN Location: See Figure 3-25
CN Pinouts: See Table 3-26 and Table 3-28
The LAN connector connects to a local network.
Pin Description Pin Description
1 MDIA3- 5 MDIA2+
2 MDIA3+ 6 MDIA1+
3 MDIA1- 7 MDIA0-
4 MDIA2- 8 MDIA0+
Table 3-26: LAN Pinouts

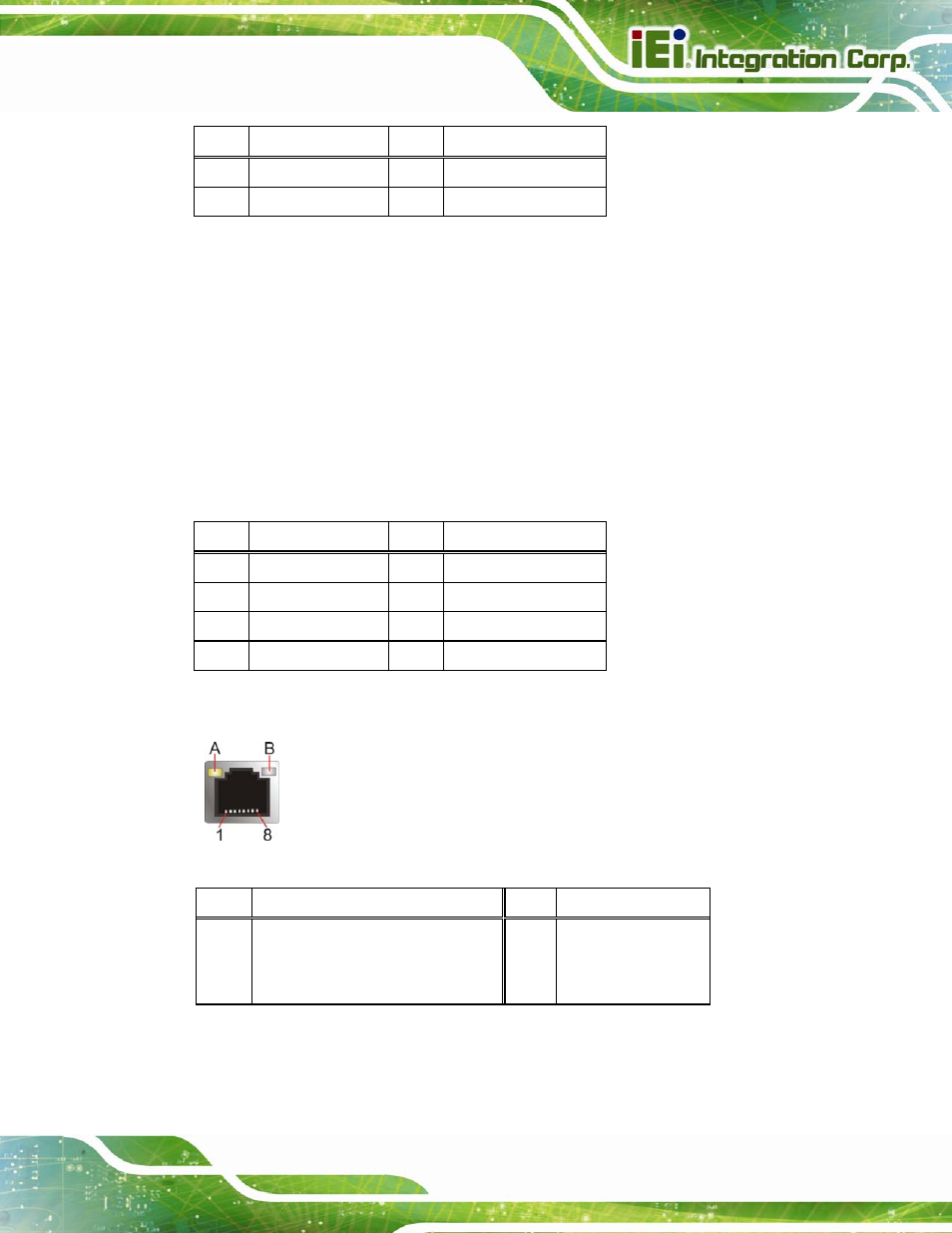

Figure 3-28: Ethernet Connector
LED Description LED Description
A on: linked
blinking: data is being sent/received
B off: 10 Mb/s
green: 100 Mb/s
orange: 1000 Mb/s
Table 3-27: Connector LEDs
