IMBA-C604EP ATX Server Board

Page 39

3.3 External Peripheral Interface Connector Panel

The figure below shows the external peripheral interface connector (EPIC) panel. The

EPIC panel consists of the following:

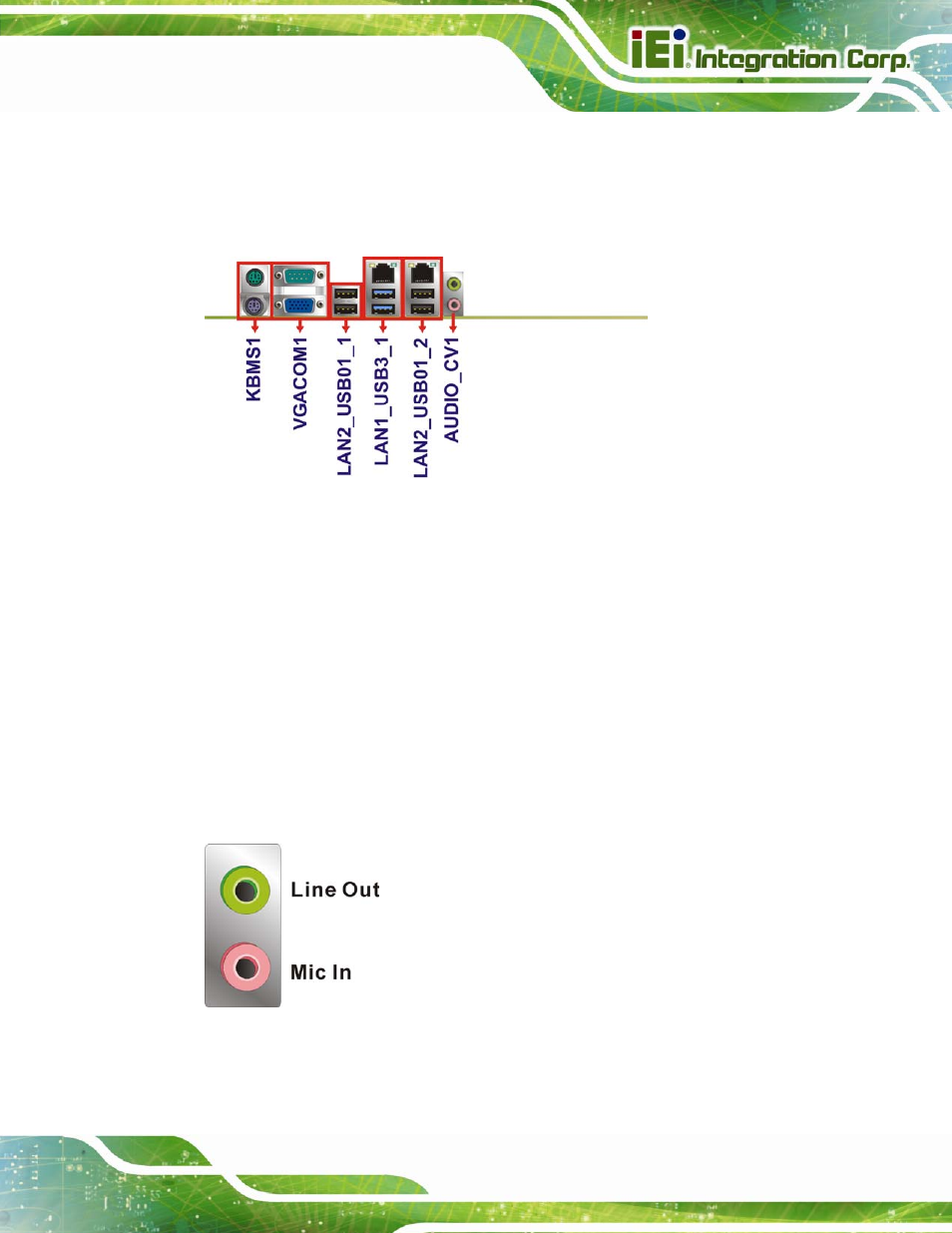

Figure 3-25: External Peripheral Interface Connector

3.3.1 Audio Connector

CN Label:

AUDIO_CV1

CN Type:

Audio jack

CN Location:

See Figure 3-25

The audio jacks connect to external audio devices.

ƒ Line Out port (Lime): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also connect to front speakers.

ƒ Microphone (Pink): Connects a microphone.

Figure 3-26: Audio Connector
