IMBA-C604EP ATX Server Board

Page 38

Pin

Description

Pin

Description

1

VCC

2

VCC

3

DATA-

4

DATA-

5

DATA+

6

DATA+

7

GND

8

GND

9

KEY

10

NC

Table 3-21: USB 2.0 Connector Pinouts

3.2.23 USB 2.0 Connector (Type A)

CN Label:

USB4

CN Type:

4-pin Type A

CN Location:

See Figure 3-24

CN Pinouts:

See Table 3-22

The USB connector can be connected to a USB 2.0/1.1 device.

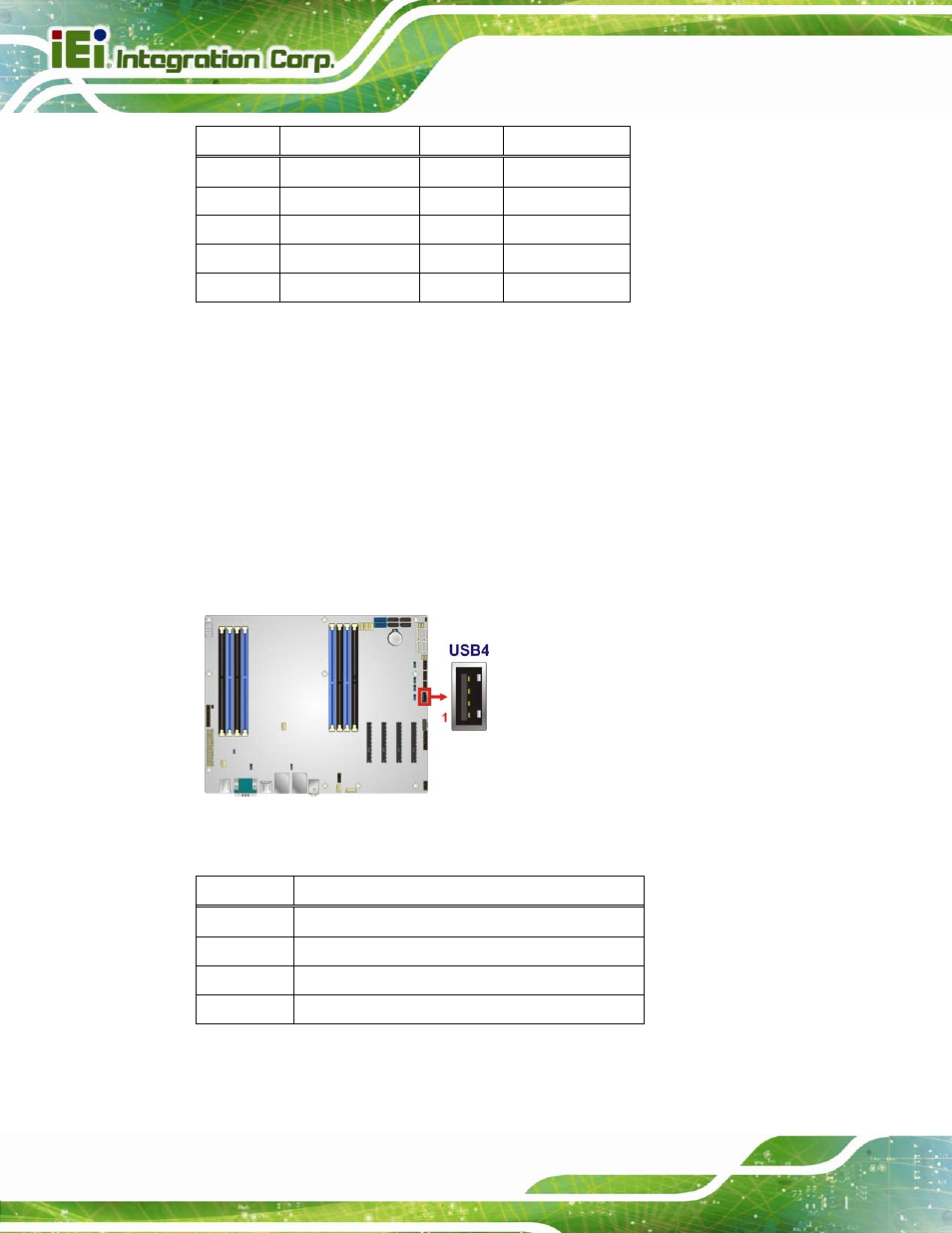

Figure 3-24: USB 2.0 Connector (Type A) Location

Pin Description

1 VCC

2 DATA-

3 DATA+

4 GND

Table 3-22: USB 2.0 Connector (Type A) Pinouts
