3.2.3 Battery Connector

CAUTION:

Risk of explosion if battery is replaced by an incorrect type. Only

certified engineers should replace the on-board battery.

Dispose of used batteries according to instructions and local

regulations.

CN Label:

BAT1

CN Type:

Battery holder

CN Location:

See Figure 3-4

This is connected to the system battery. The battery provides power to the system clock to

retain the time when power is turned off.

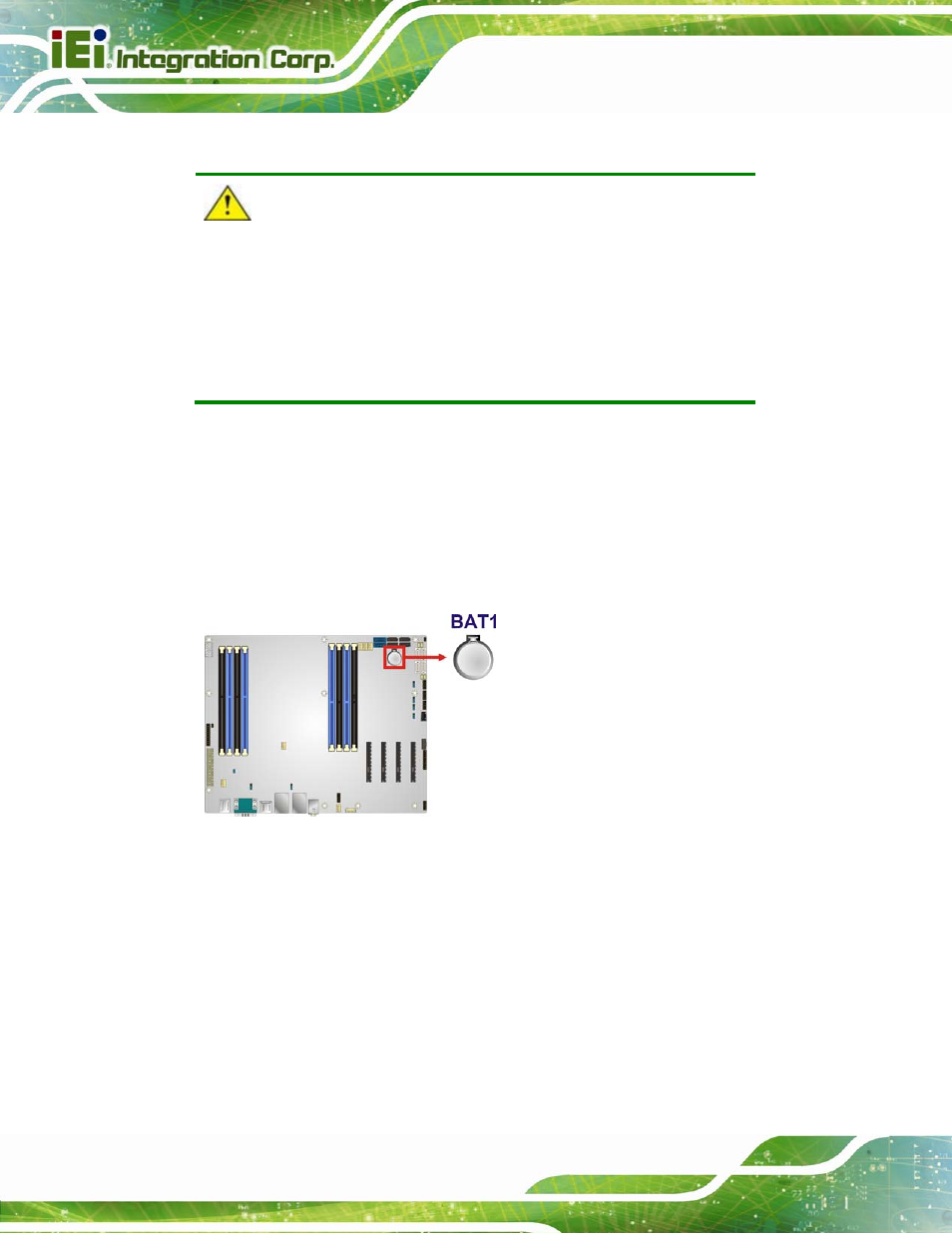

Figure 3-4: Battery Connector Locations

3.2.4 Chassis Intrusion Connector

CN Label:

JCHASSIS1

CN Type:

2-pin header

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-5
