IMBA-C604EP ATX Server Board

Page 31

3.2.15 SAS LED Connector

CN Label:

SAS_LED1

CN Type:

4-pin wafer

CN Location:

See Figure 3-16

CN Pinouts:

See Table 3-14

The SAS LED connector allows the SAS LED to be connected to the system.

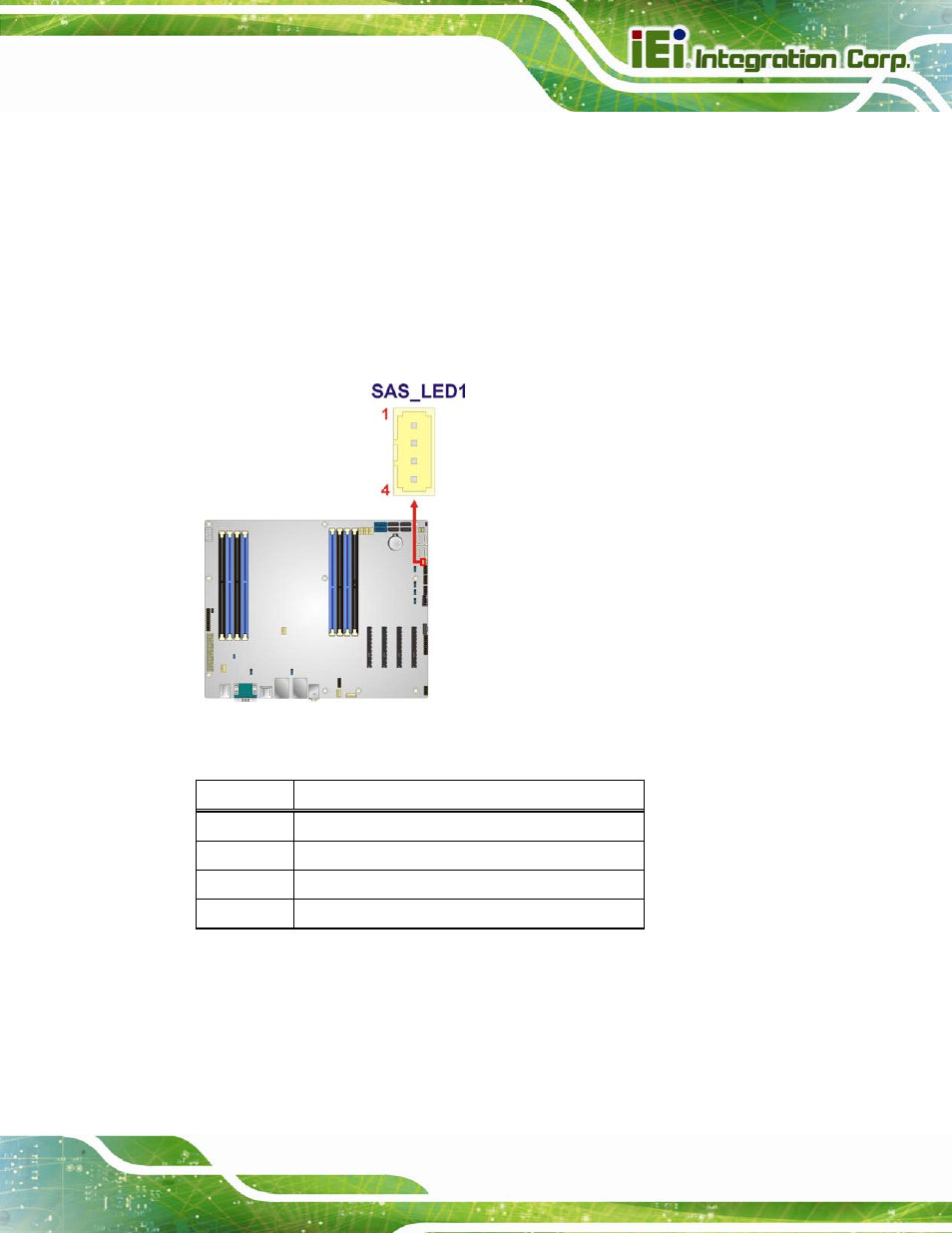

Figure 3-16: SAS LED Connector Location

Pin Description

1 GPIO_CLK1

2 SGPIO_LD1

3 SGPIO_DIN1

4 SGPIO_DO1

Table 3-14: SAS LED Connector Pinouts

3.2.16 SAS SMBus Connector

CN Label:

SAS_SMBUS1

CN Type:

4-pin wafer
