KINO-AQ670

P a g e 56

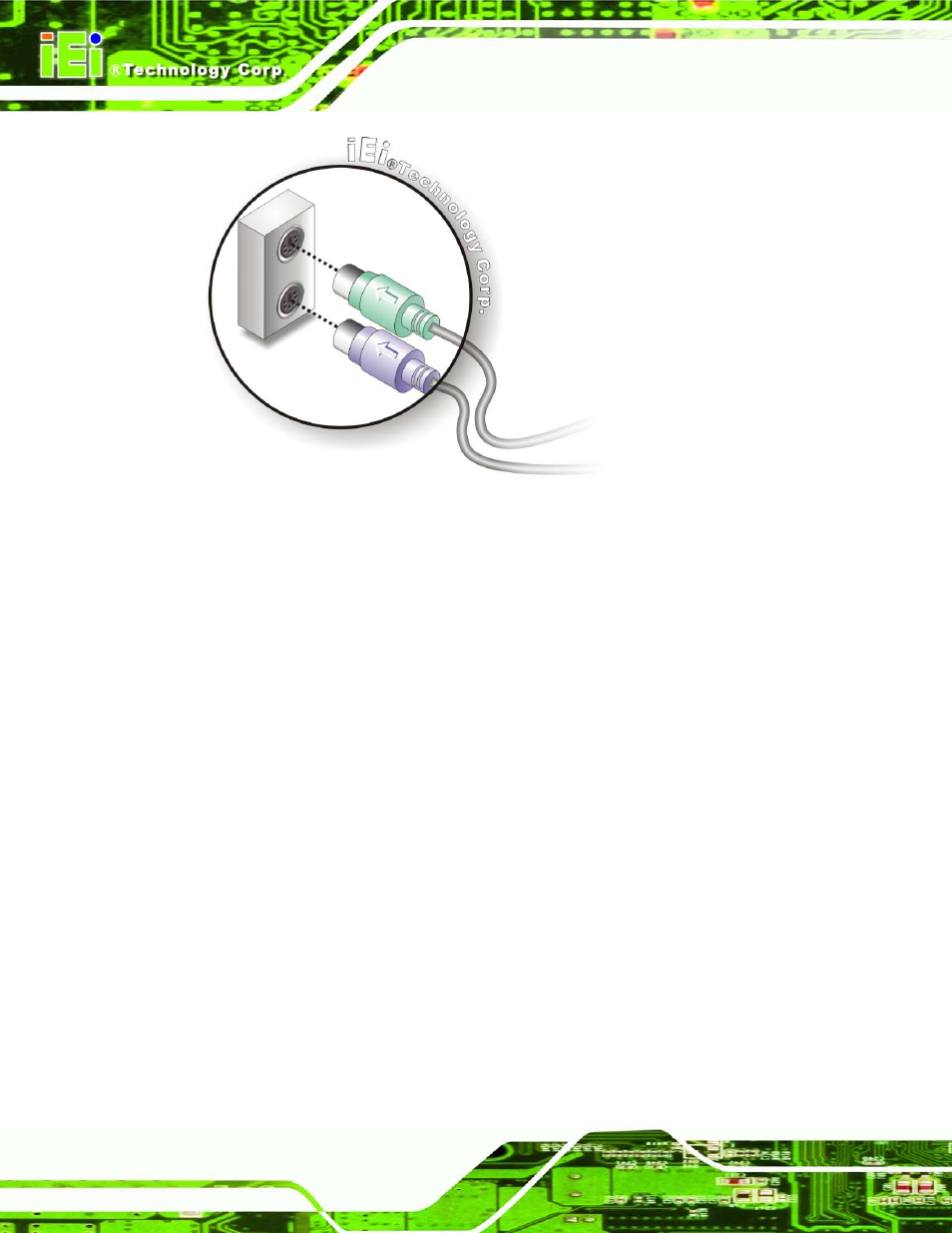

Figure 4-17: PS/2 Keyboard/Mouse Connector

4.6.5 S e ria l De vic e Co n n e c tio n

The KINO-AQ670 has a single female DB-9 connector on the external peripheral interface

panel for a serial device. Follow the steps below to connect a serial device to the

KINO-AQ670.

S te p 1:

Locate the DB-9 connector. The location of the DB-9 connector is shown in

Chapter 3.

S te p 2:

Insert the serial connector.

Insert the DB-9 connector of a serial device into

the DB-9 connector on the external peripheral interface. See Figure 4-18.
