KINO-AQ670
P a g e 30

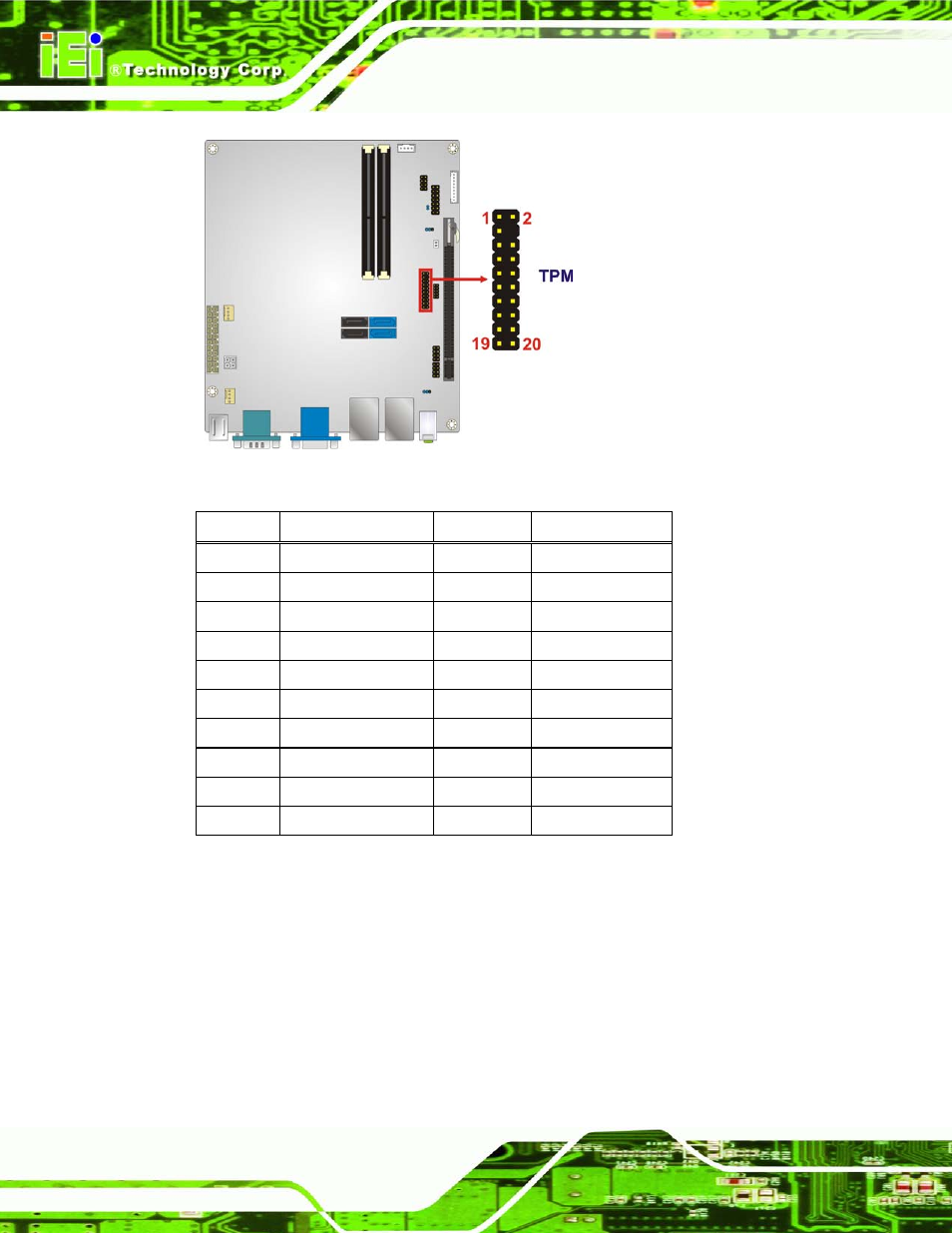

Figure 3-16: TPM Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TPMPCLK 2 GND
3 LPC_FRAME# 4
5 BUF_PCIRST# 6 +5V
7 LPC_AD3 8 LPC_AD2
9 +3.3V 10 LPC_AD1
11 LPC_AD0 12 GND
13 SMBCLK_RESUME 14 SMBDATA_RESUME
15 +3V_DUAL 16 SERIRQ
17 GND 18 +3.3V
19 LPCPD_N 20 LDRQ0#
Table 3-13: TPM Connector Pinouts
3.2.16 US B Co n n e c to rs
CN La b e l: USB1, USB4
CN Typ e : 8-pin header
CN Lo c a tio n : See Figure 3-17
CN P in o u ts : See Table 3-14
