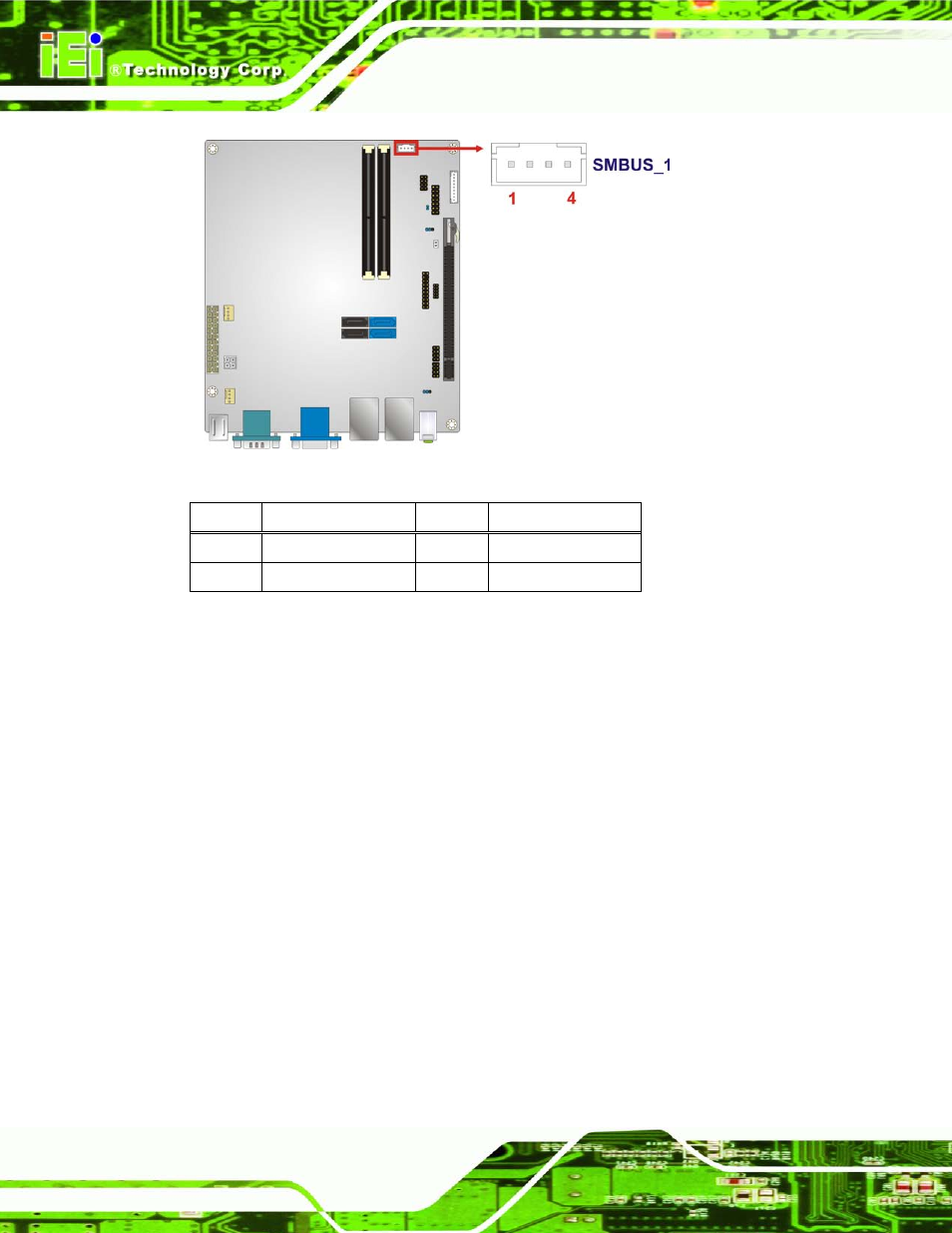

Figure 3-14: SMBus Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

+5V_DUAL

2

SMBCLK_RESUME

3

SMBDATA_RESUME

4

GND

Table 3-11: SMBus Connector Pinouts

3.2.14 S P I Co n n e c to r

CN La b e l:

S P I

CN Typ e :

8-pin connector

CN Lo c a tio n :

See Figure 3-15

CN P in o u ts :

See Table 3-12

The SPI connector is for BIOS updating.
