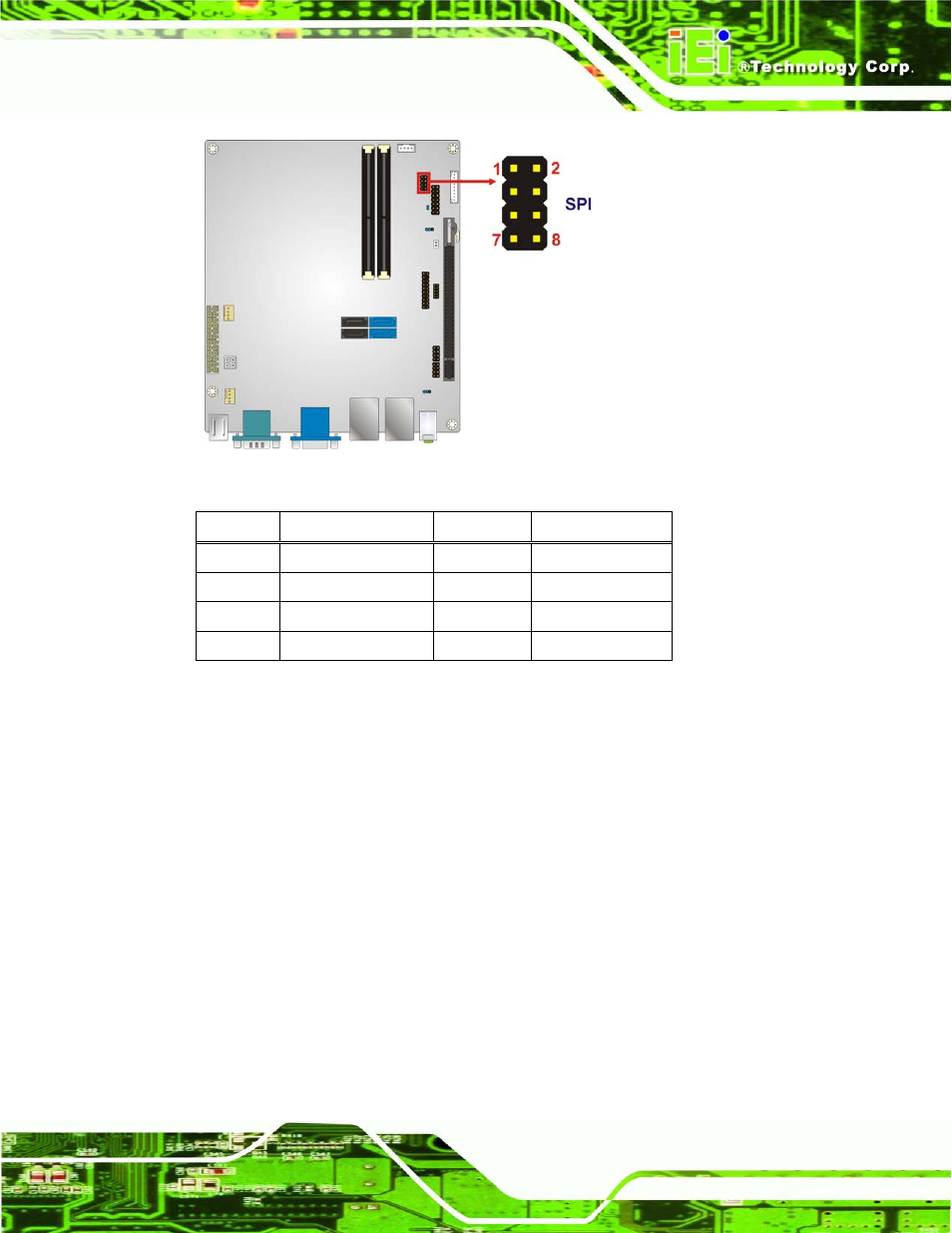

Figure 3-15: SPI Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +SPI_VCC 2 GND
3 SPI_CS0#_CN_P 4 SPI_CLK0_CN_P
5 SPI_SO0_CN_P 6 SPI_SI0_CN_P
7 NC 8 NC
Table 3-12: SPI Connector Pinouts
3.2.15 TP M Co n n e c to r
CN La b e l: TP M
CN Typ e : 20-pin connector
CN Lo c a tio n : See Figure 3-16
CN P in o u ts : See Table 3-13
The Trusted Platform Module (TPM) connector secures the system on bootup.
