KINO-AQ670

P a g e 50

J u m p e r Typ e :

3-pin header

J u m p e r S e ttin g s :

See Table 4-4

J u m p e r Lo c a tio n :

See Figure 4-11

The Wake-on LAN (WOL) mode select jumper allows the user to enable or disable the

WOL function. WOL mode select jumper settings are shown in Table 4-2.

Setting

Description

Short 1-2

WOL Mode Enable

Default

Short 2-3

WOL Mode Disable

Table 4-4: WOL Mode Select Jumper Settings

The location of the WOL mode select jumper is shown in Figure 4-9 below.

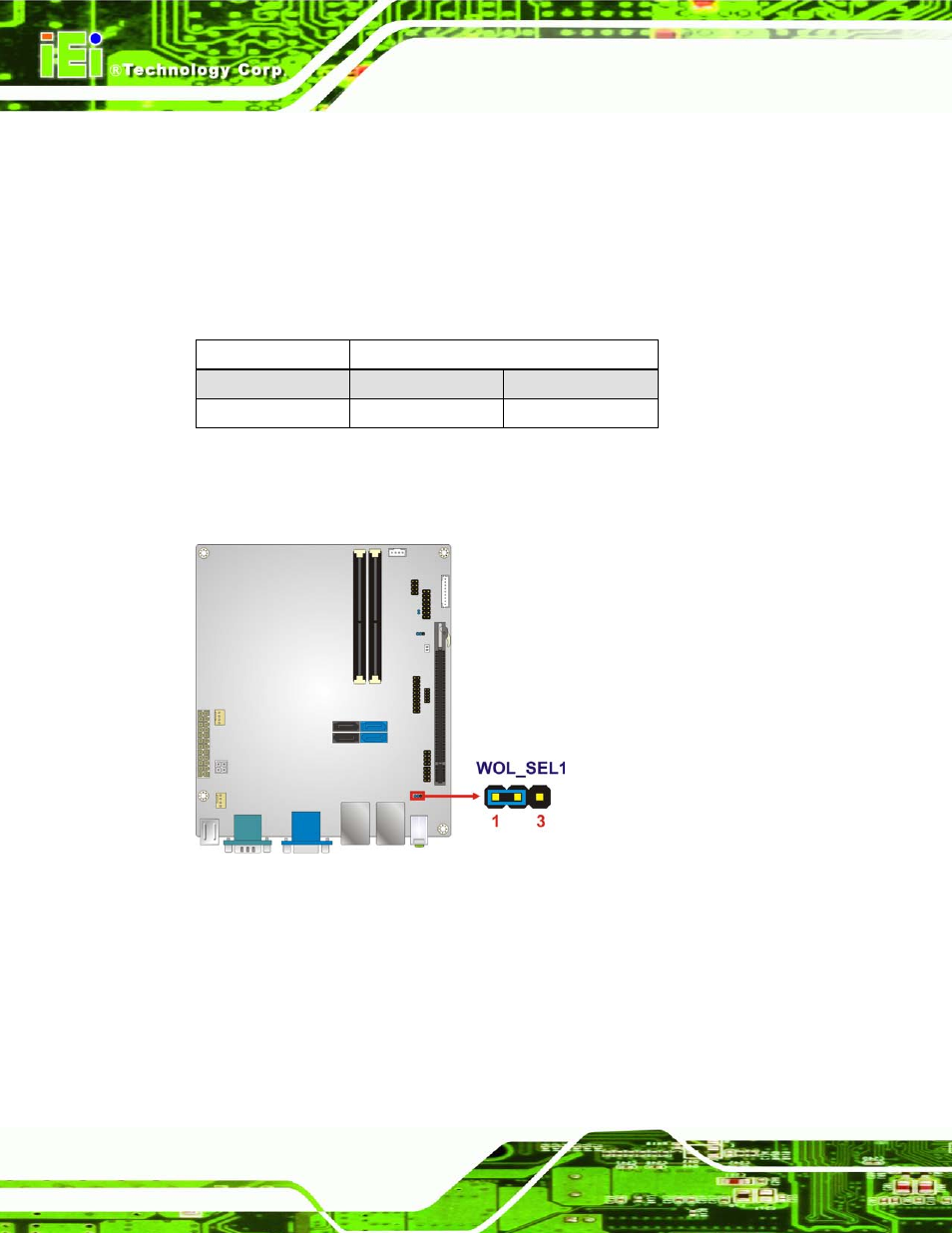

Figure 4-11: WOL Mode Select Jumper Location

4.5 In te rn a l P e rip h e ra l De vic e Co n n e c tio n s

This section outlines the installation of peripheral devices to the on-board connectors
