KINO-AQ670

P a g e 24

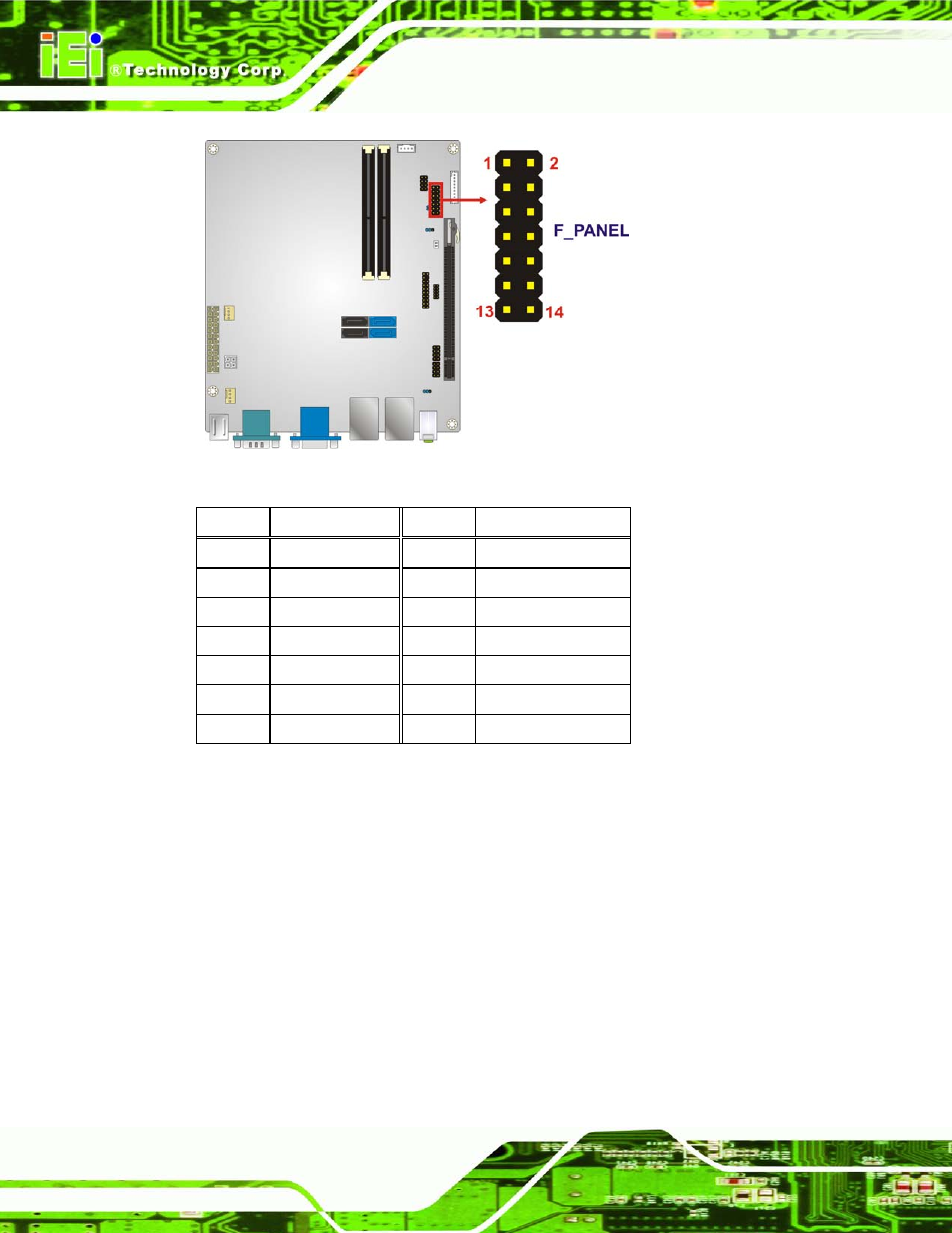

Figure 3-10: Front Panel Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

ACPILED

2

BEEP_PWR

3

NC

4

NC

5

GND

6

NC

7

PWRBTN_SW

8

PC_BEEP

9

GND

10

NC

11

IDELED

12

EXTRST#

13

IDELED#

14

GND

Table 3-10: Front Panel Connector Pinouts

3.2.10 P CIe x16 S lo t

CN La b e l:

P CIEX16

CN Typ e :

PCIe x16 slot

CN Lo c a tio n :

See Figure 3-11

The PCIe x16 slot is for PCIe x16 expansion cards.
