KINO-AQ670

P a g e 19

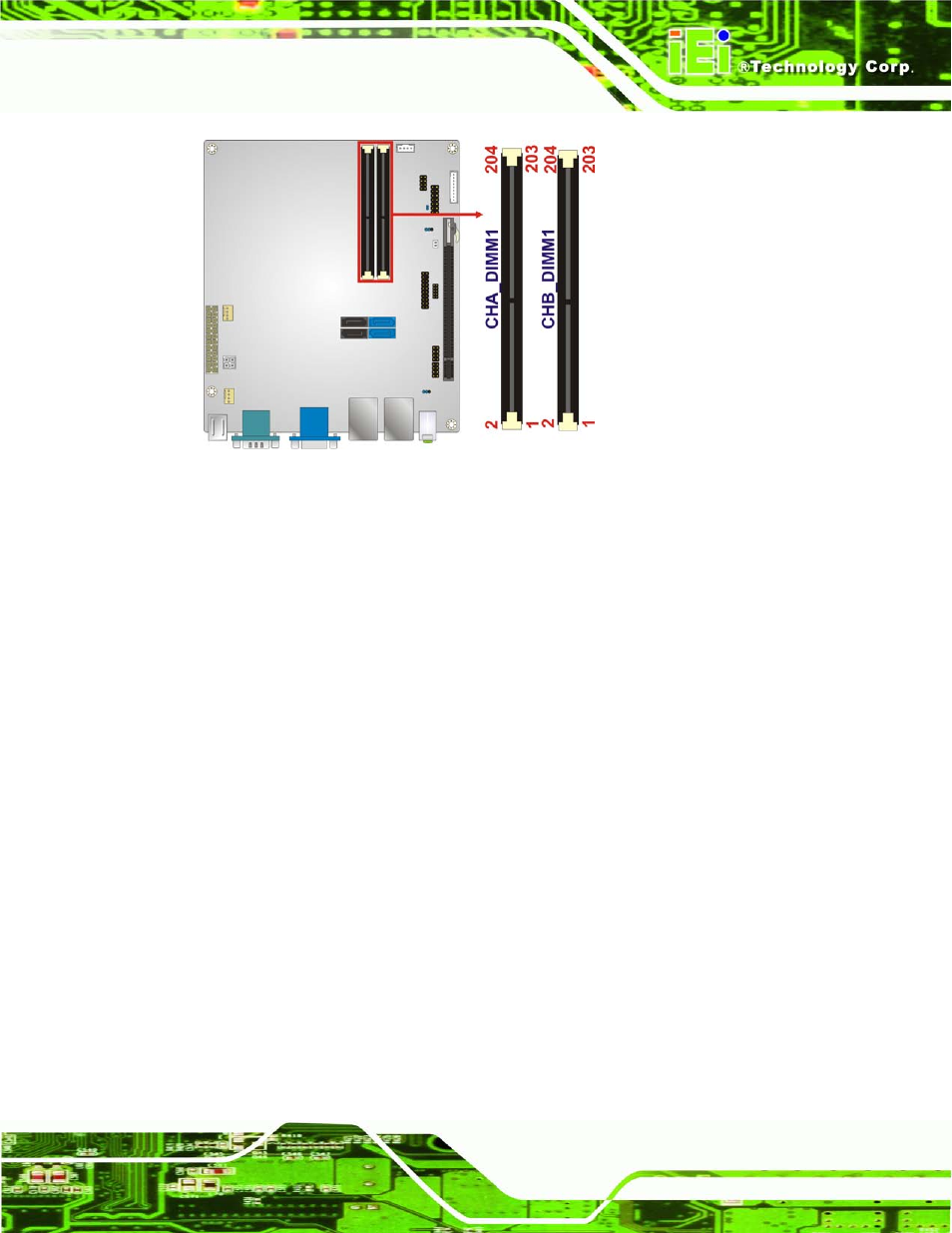

Figure 3-5: DDR3 SO-DIMM Slot Locations

3.2.5 De b u g P o rt Co n n e c to r

CN La b e l:

DEBUGCN1

CN Typ e :

9-pin header

CN Lo c a tio n :

See Figure 3-6

CN P in o u ts :

See Table 3-6

The debug port connector is for system debug.
