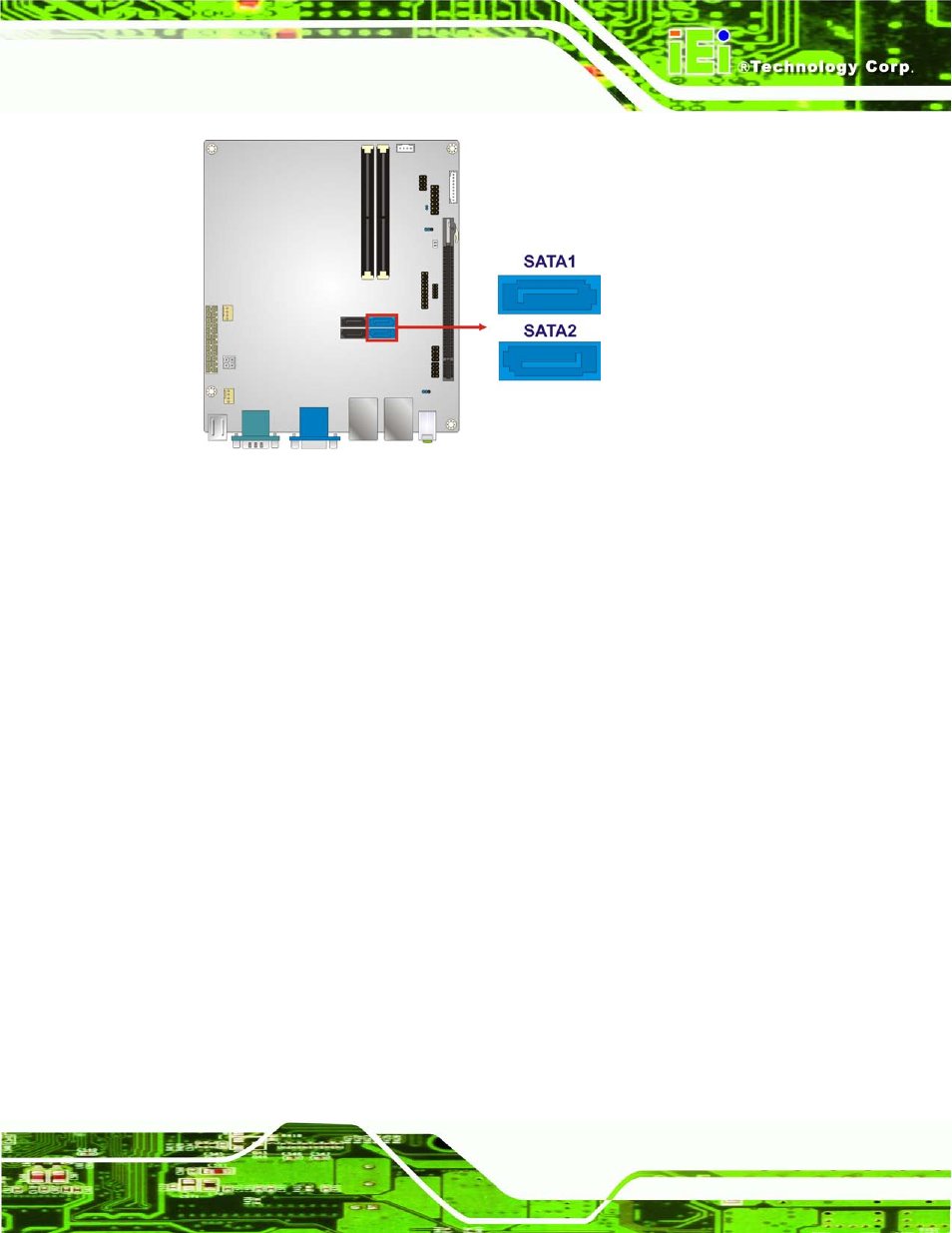

Figure 3-13: SATA 6Gb/s Drive Connector Locations
3.2.13 S MBUS Co n n e c to r
CN La b e l: S MBUS _1
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 3-14
CN P in o u ts : See Table 3-11
The SMBus (System Management Bus) connector provides low-speed system
management communications.
