KINO-AQ670

P a g e 48

Setting

Description

Open

AT Mode

Short

ATX Mode

Default

Table 4-2: AT/ATX Mode Select Jumper Settings

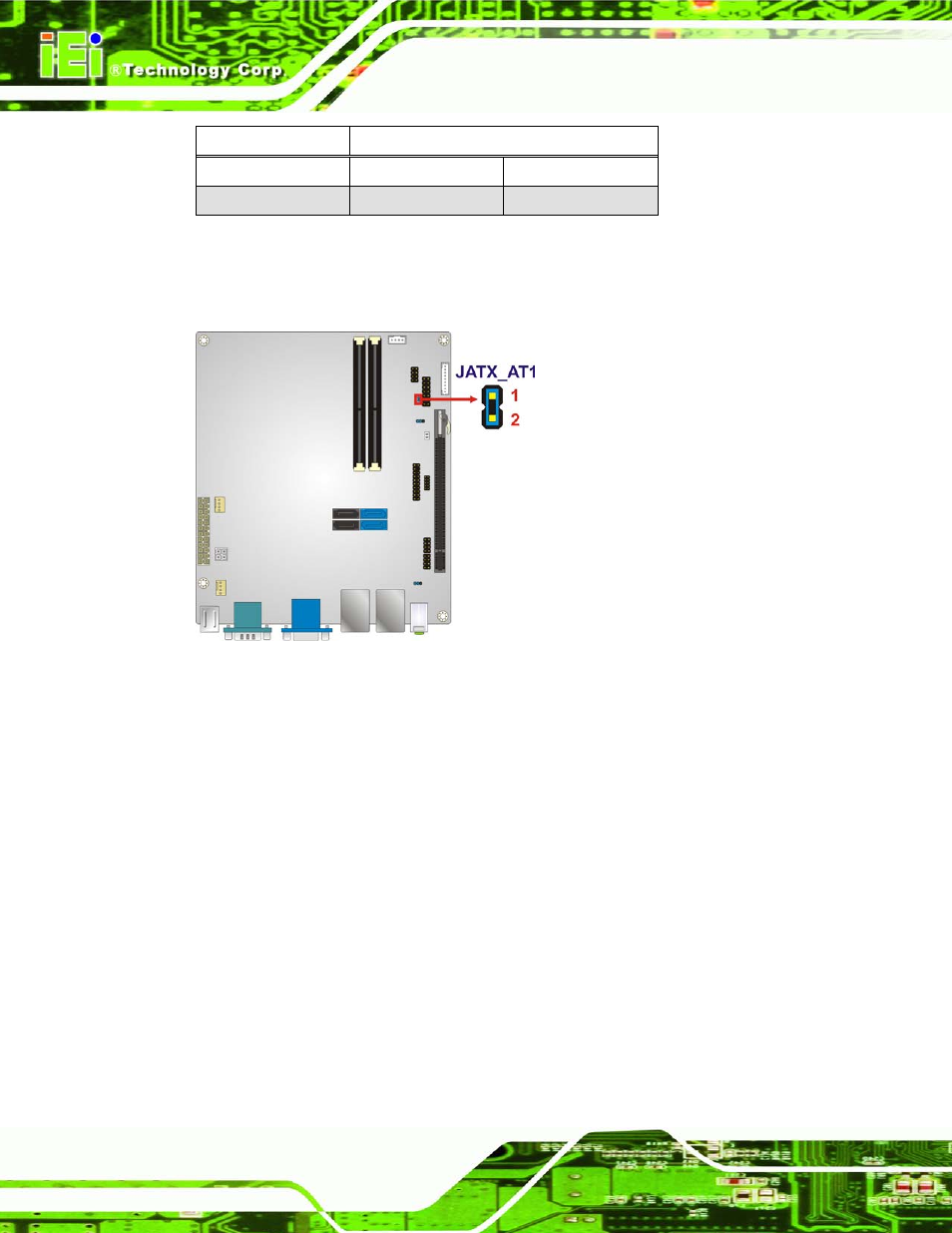

The location of the AT/ATX mode select jumper is shown in Figure 4-9 below.

Figure 4-9: AT/ATX Mode Select Jumper Location

4.4.2 Cle a r CMOS J u m p e r

J u m p e r La b e l:

J _CMOS 2

J u m p e r Typ e :

3-pin header

J u m p e r S e ttin g s :

See Table 4-3

J u m p e r Lo c a tio n :

See Figure 4-10

If the KINO-AQ670 fails to boot due to improper BIOS settings, the clear CMOS jumper

clears the CMOS data and resets the system BIOS information. To do this, use the jumper

cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1

and 2.
