KINO-AQ670

P a g e 23

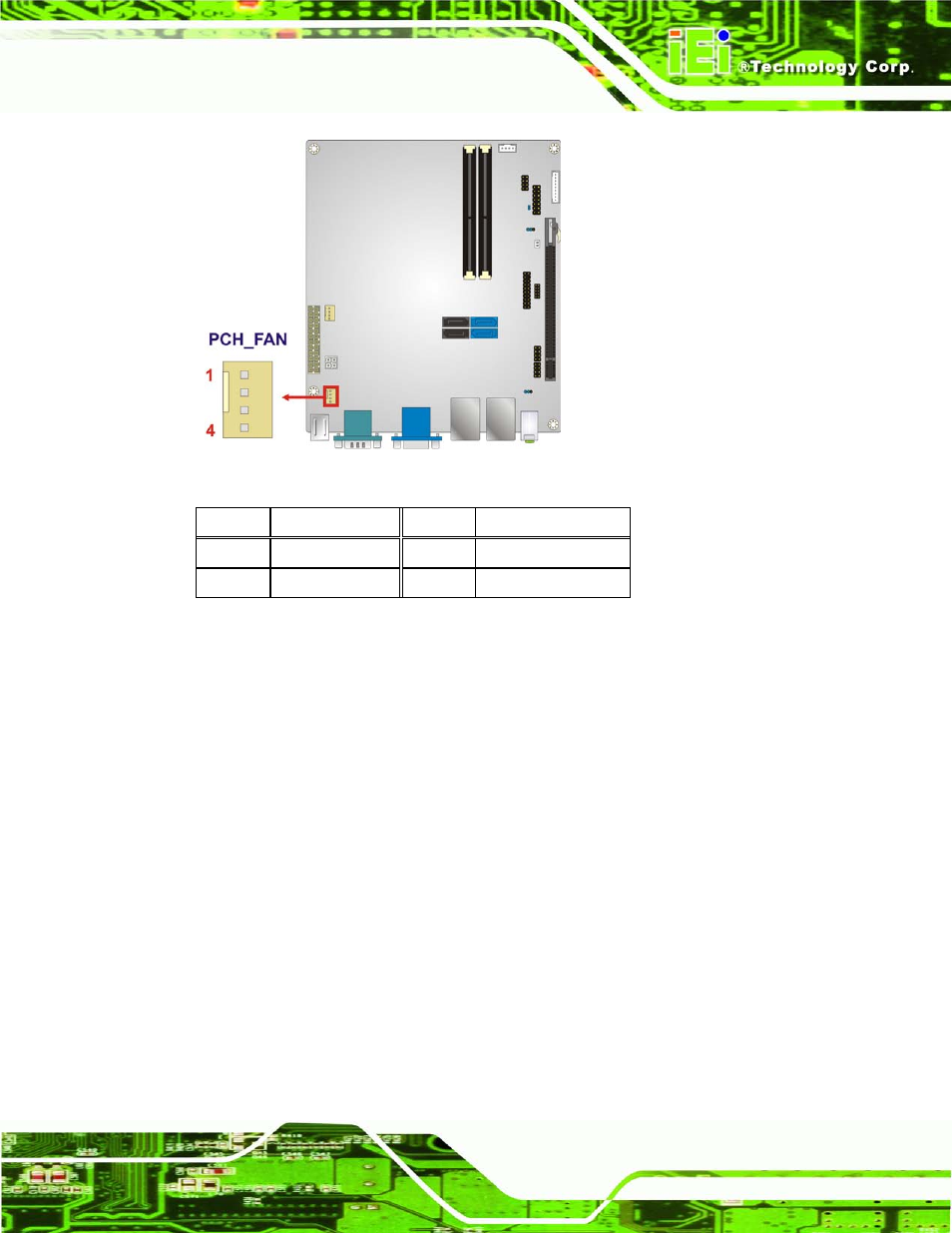

Figure 3-9: PCH Fan Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

FAN12V

3

FANIO2

4

NC

Table 3-9: PCH Fan Connector Pinouts

3.2.9 Fro n t P a n e l Co n n e c to r

CN La b e l:

F_P ANEL

CN Typ e :

14-pin header

CN Lo c a tio n :

See Figure 3-10

CN P in o u ts :

See Table 3-10

The front panel connector connects to the indicator LEDs and buttons on the computer’s

front panel.
