KINO-AQ670
P a g e 36
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
15 NDSR2# 16 NRTS2#
17 NCTS2# 18 NRI2#
Table 3-18: RS-232 Serial Port Connector Pinouts
3.3.5 VGA a n d DVI Co n n e c to r
CN La b e l: DVI+CRT
CN Typ e : 15-pin female (VGA) , 24-pin female (DVI)
CN Lo c a tio n : See Figure 3-18
CN P in o u ts : See Figure 3-22 , Table 3-19 and Table 3-20
The VGA port connects to a monitor that accepts a standard VGA input.

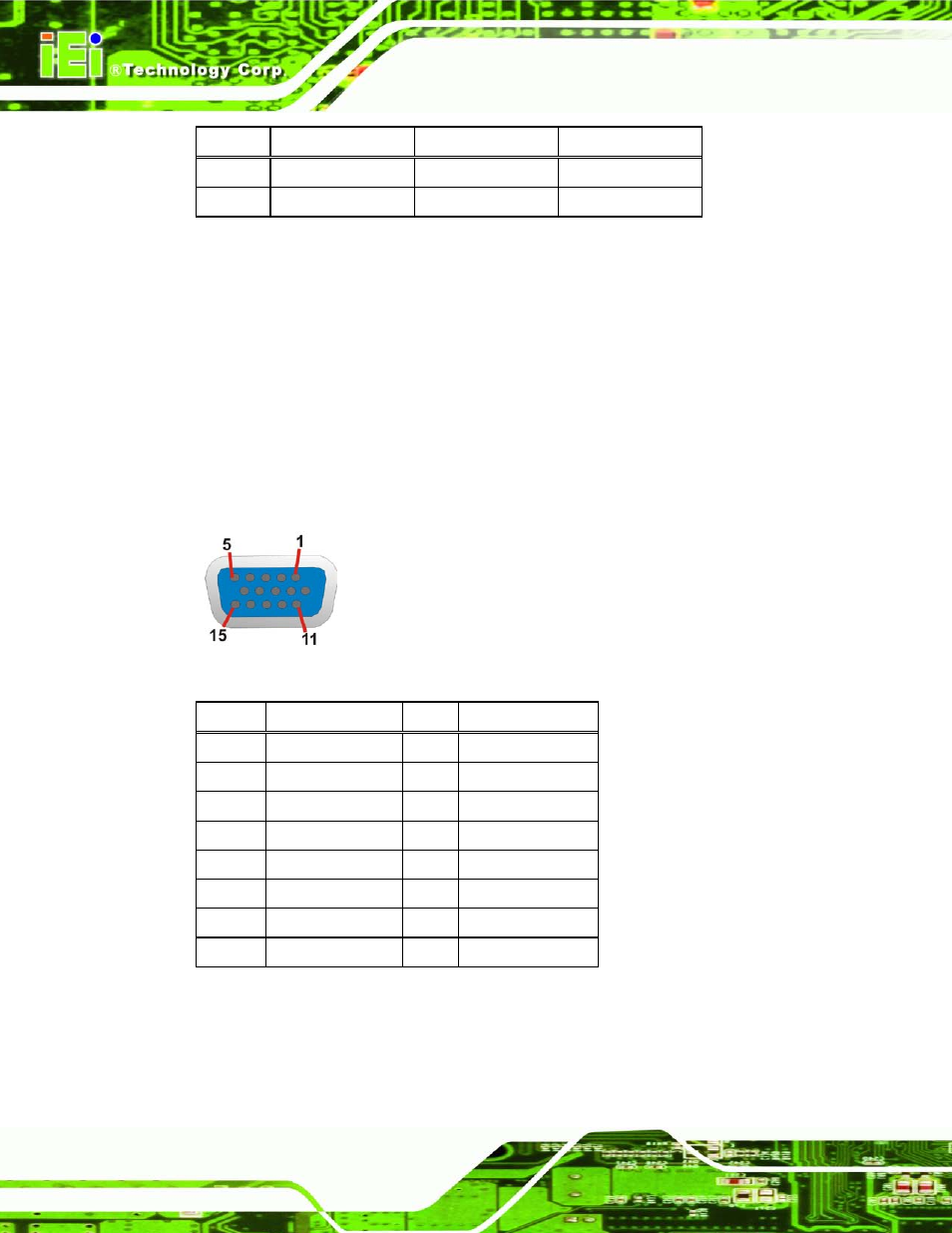

Figure 3-22: VGA Connector
PIN DESCRIPTION PIN DESCRIPTION
1 Red 2 Green
3 Blue 4 NC
5 GND 6 GND
7 GND 8 GND
9 VGAVCC 10 HOTPLUG
11 NC 12 DDCDAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-19: VGA Connector Pinouts
The DVI (Digital Visual Interface) port connects to a monitor that supports DVI video input.
