KINO-AQ670

P a g e 46

S te p 4:

Secure the cooling kit by fastening the four retention screw of the cooling kit.

S te p 5:

Connect the fan cable. Connect the cooling kit fan cable to the fan connector

on the KINO-AQ670. Carefully route the cable and avoid heat generating chips

and fan blades.

4.3.3 DIMM In s ta lla tio n

To install a DIMM, please follow the steps below and refer to Figure 4-7.

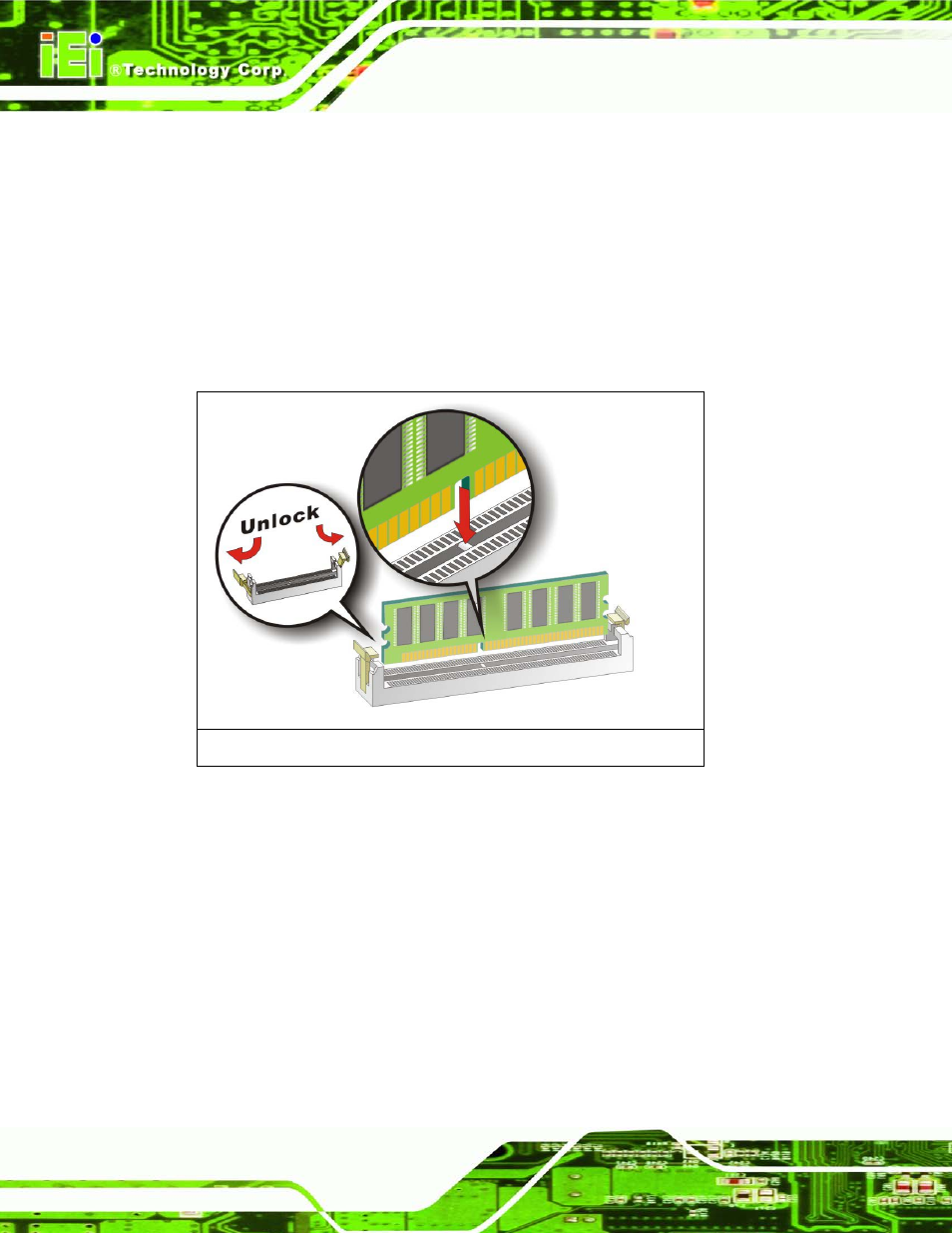

Figure 4-7: DIMM Installation

S te p 1:

Open the DIMM socket handles. Open the two handles outwards as far as they

S te p 2:

Align the DIMM with the socket. Align the DIMM so the notch on the memory

lines up with the notch on the memory socket. See Figure 4-7.

S te p 3:

Insert the DIMM. Once aligned, press down until the DIMM is properly seated.

Clip the two handles into place. See Figure 4-7.

S te p 4:

Remove a DIMM. To remove a DIMM, push both handles outwards. The

memory module is ejected by a mechanism in the socket.
