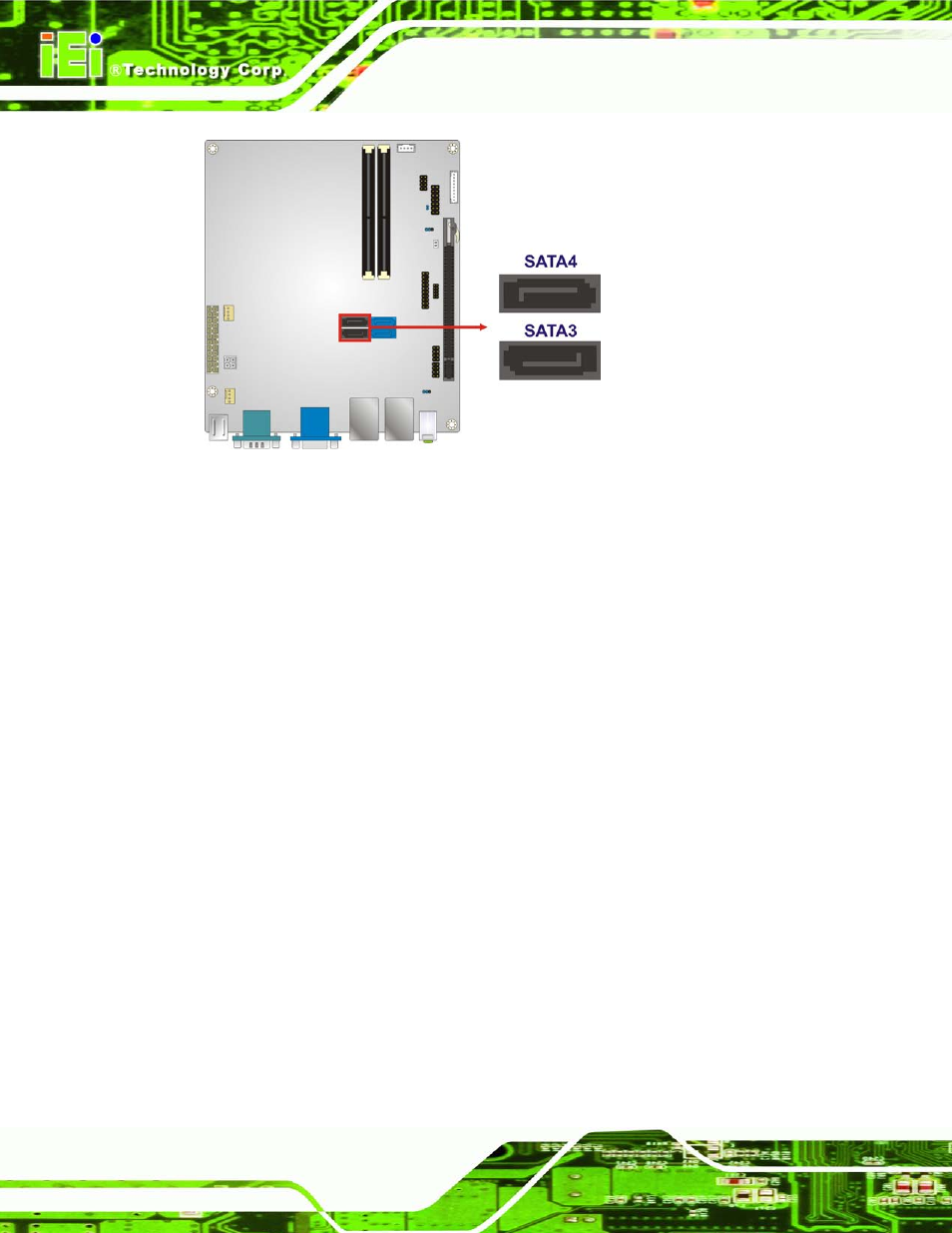

Figure 3-12: SATA 3Gb/s Drive Connector Location

3.2.12 S ATA 6Gb /s Drive Co n n e c to rs

CN La b e l:

SATA1, SATA2

CN Typ e :

7-pin SATA connector

CN Lo c a tio n :

See Figure 3-13

The two SATA 6Gb/s drive connectors are each connected to a SATA 6Gb/s drive. The

SATA 6Gb/s drives transfer data at speeds as high as 6Gb/s.
