P a g e 44

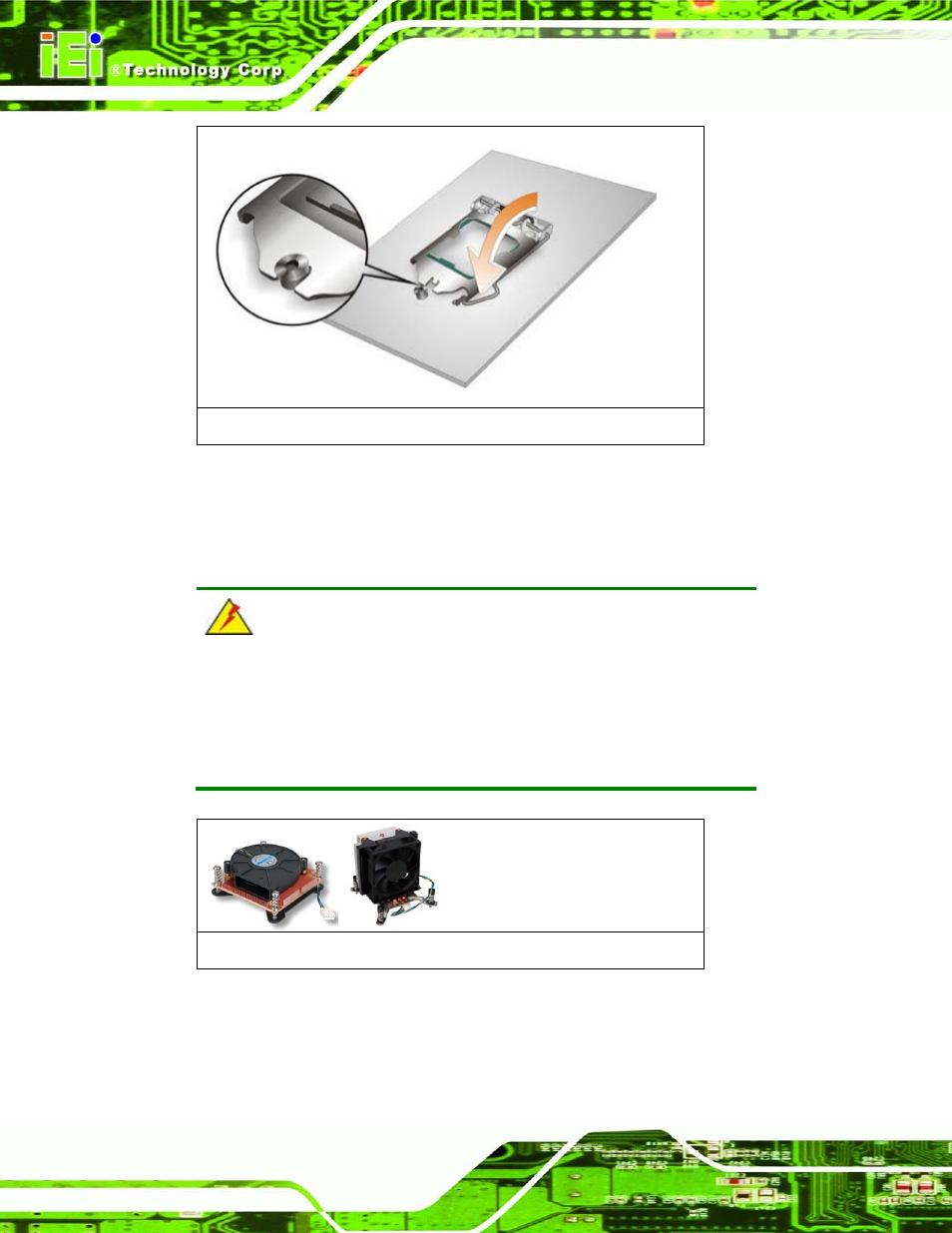

Figure 4-4: Close the Socket LGA1155

S te p 9:

Connect the 12 V power to the board. Connect the 12 V power from the power

supply to the board.

4.3.2 Co o lin g Kit In s ta lla tio n

WARNING:

DO NOT attempt to install a push-pin cooling fan.

The pre-installed support bracket prevents the board from bending and

is ONLY compatible with captive screw type cooling fans.

Figure 4-5: Cooling Kits (CF-1156A-RS, CF-1156B-RS)

The cooling kits can be bought from IEI. The cooling kit has a heat sink and fan.
