KINO-AQ670

P a g e 32

 1 x VGA connector

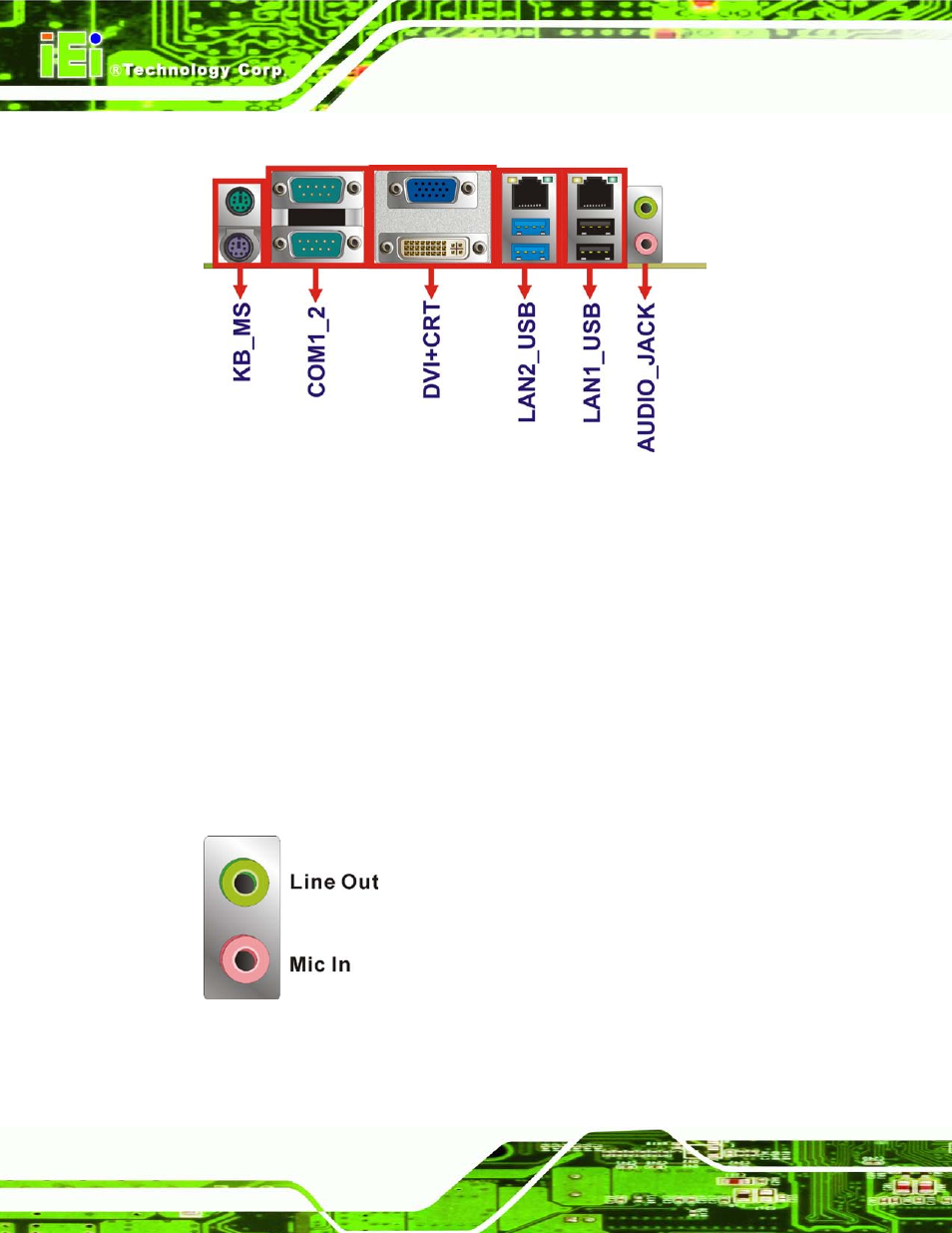

Figure 3-18: KINO-AQ670 External Peripheral Interface Connector

3.3.1 Au d io Co n n e c to r

CN La b e l:

AUDIO_JACK

CN Typ e :

Audio jack

CN Lo c a tio n :

See Figure 3-18

The audio jacks connect to external audio devices.

 Line Out port (Lime): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also connect to front speakers.

 Microphone (Pink): Connects to a microphone.

Figure 3-19: Audio Connector
