KINO-AQ670
P a g e 16

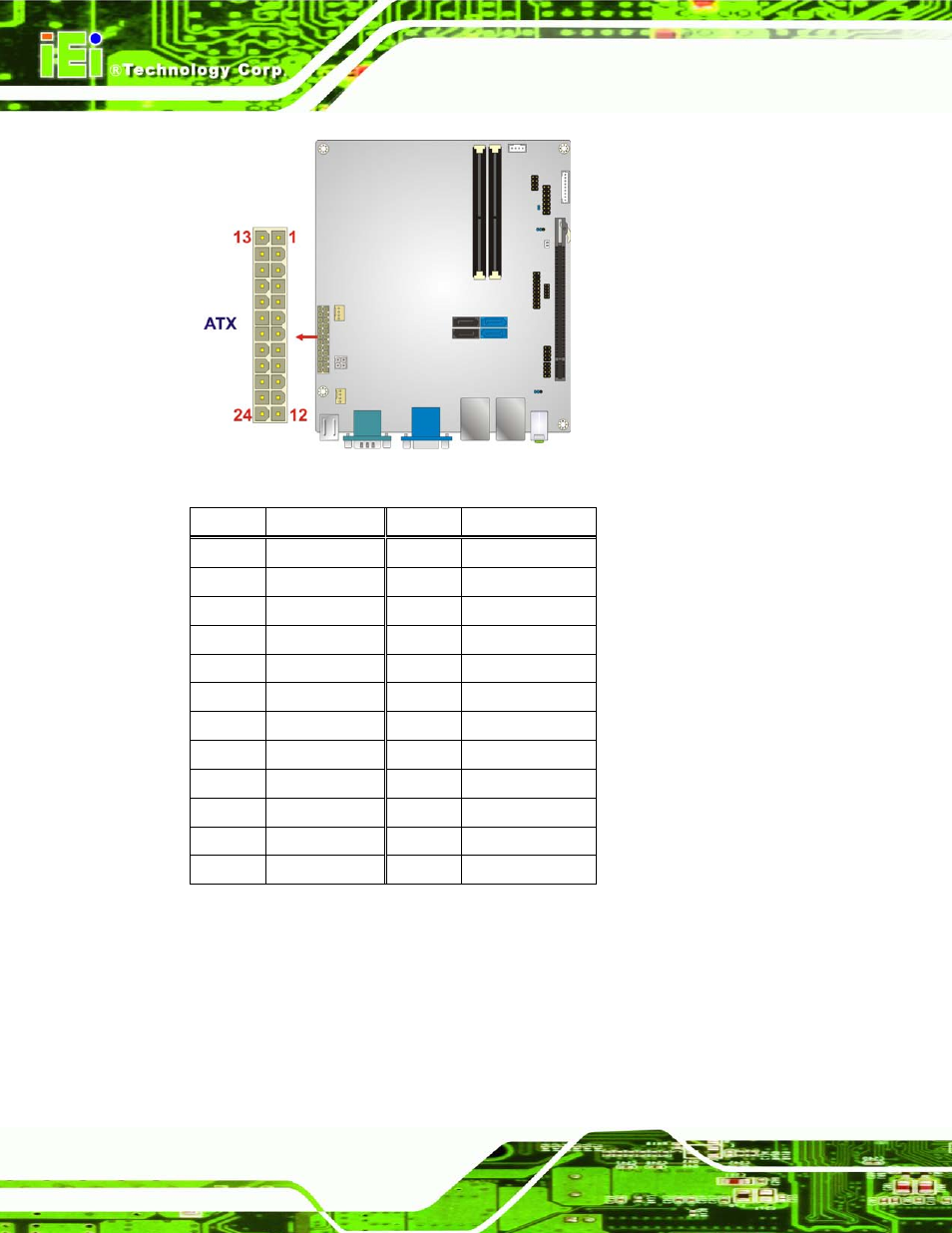

Figure 3-2: ATX Power Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +3.3 V 2 +3.3 V
3 GND 4 +5 V
5 GND 6 +5 V
7 GND 8 PWRGD_PS
9 5VSB 10 +12 V
11 +12 V 12 +3.3 V
13 +3.3 V 14 -12 V
15 GND 16 IO_PSON#
17 GND 18 GND
19 GND 20 N/A
21 +5 V 22 +5 V
23 +5 V 24 GND
Table 3-3: ATX Power Connector Pinouts
3.2.2 Ba tte ry Co n n e c to r
CN La b e l: BAT2
CN Typ e : 2-pin wafer
CN Lo c a tio n : See Figure 3-3
