8 fan connector (pch), Figure 3-8: cpu fan connector locations, Table 3-8: cpu fan connector pinouts – IEI Integration KINO-AQ670 User Manual

Page 36

background image

KINO-AQ670

P a g e 22

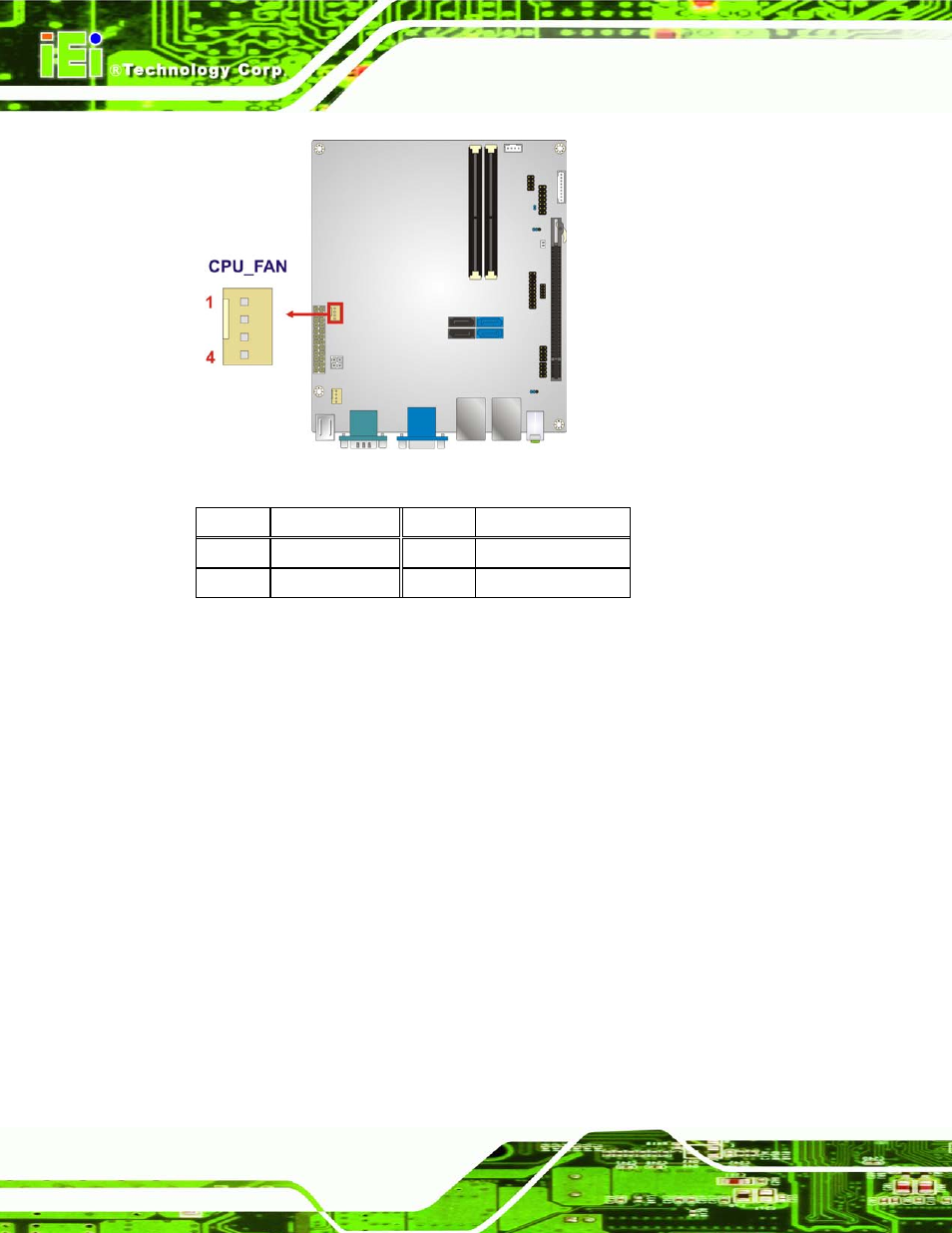

Figure 3-8: CPU Fan Connector Locations

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

+12V

3

FANIO1

4

FANOUT1

Table 3-8: CPU Fan Connector Pinouts

3.2.8 Fa n Co n n e c to r (P CH)

CN La b e l:

P CH_FAN

CN Typ e :

4-pin wafer

CN Lo c a tio n :

See Figure 3-9

CN P in o u ts :

See Table 3-9

The fan connector connects to a PCH cooling fan.
