KINO-AQ670

P a g e 25

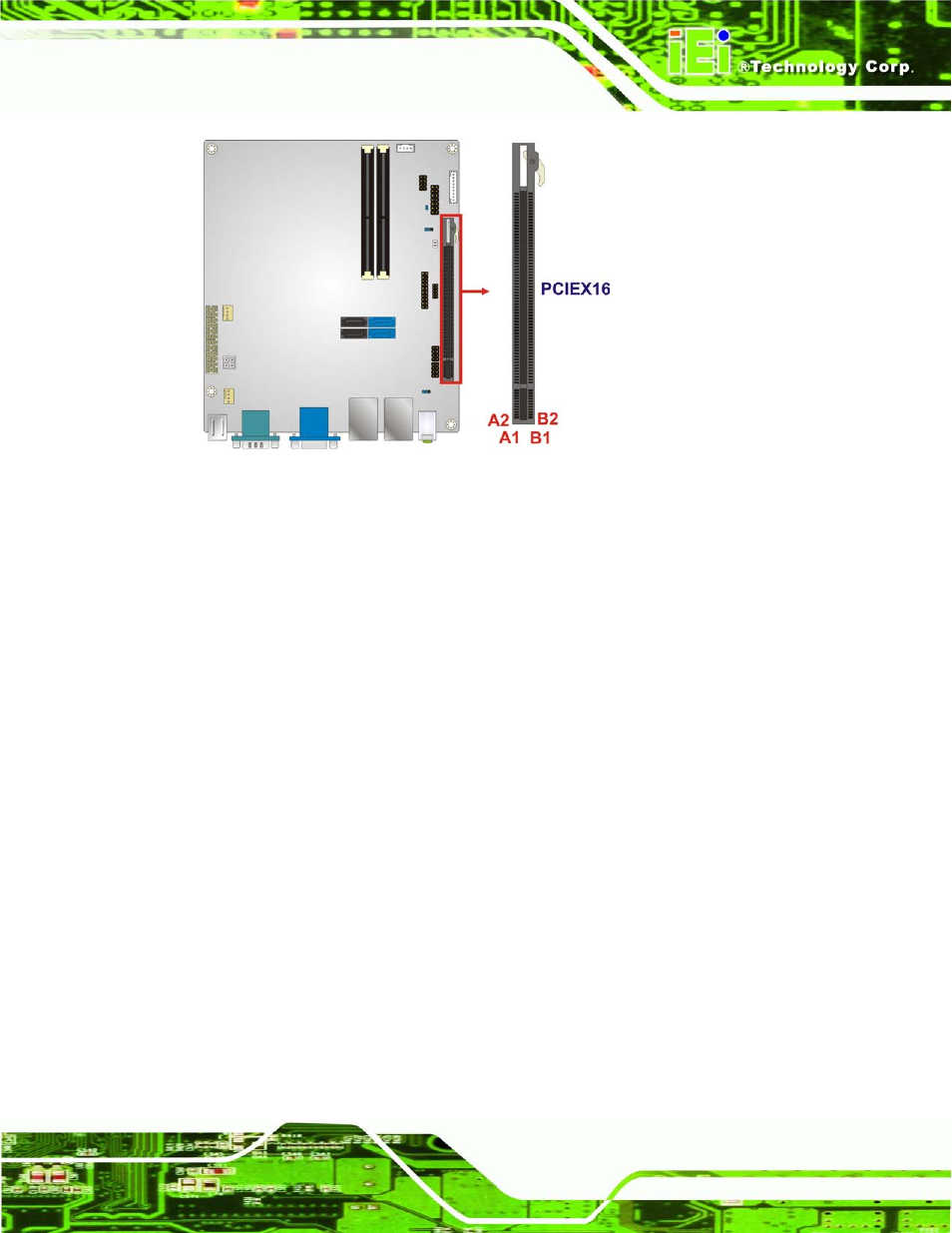

Figure 3-11: PCIe x16 Slot Location

3.2.11 S ATA 3Gb /s Drive Co n n e c to rs

CN La b e l:

SATA3, SATA4

CN Typ e :

7-pin SATA connector

CN Lo c a tio n :

See Figure 3-12

The two SATA 3Gb/s drive connectors are each connected to a SATA 3Gb/s drive. The

SATA 3Gb/s drives transfer data at speeds as high as 3Gb/s.
