KINO-AQ670

P a g e 31

The USB connectors connect to USB devices. Each pin header provides two USB ports.

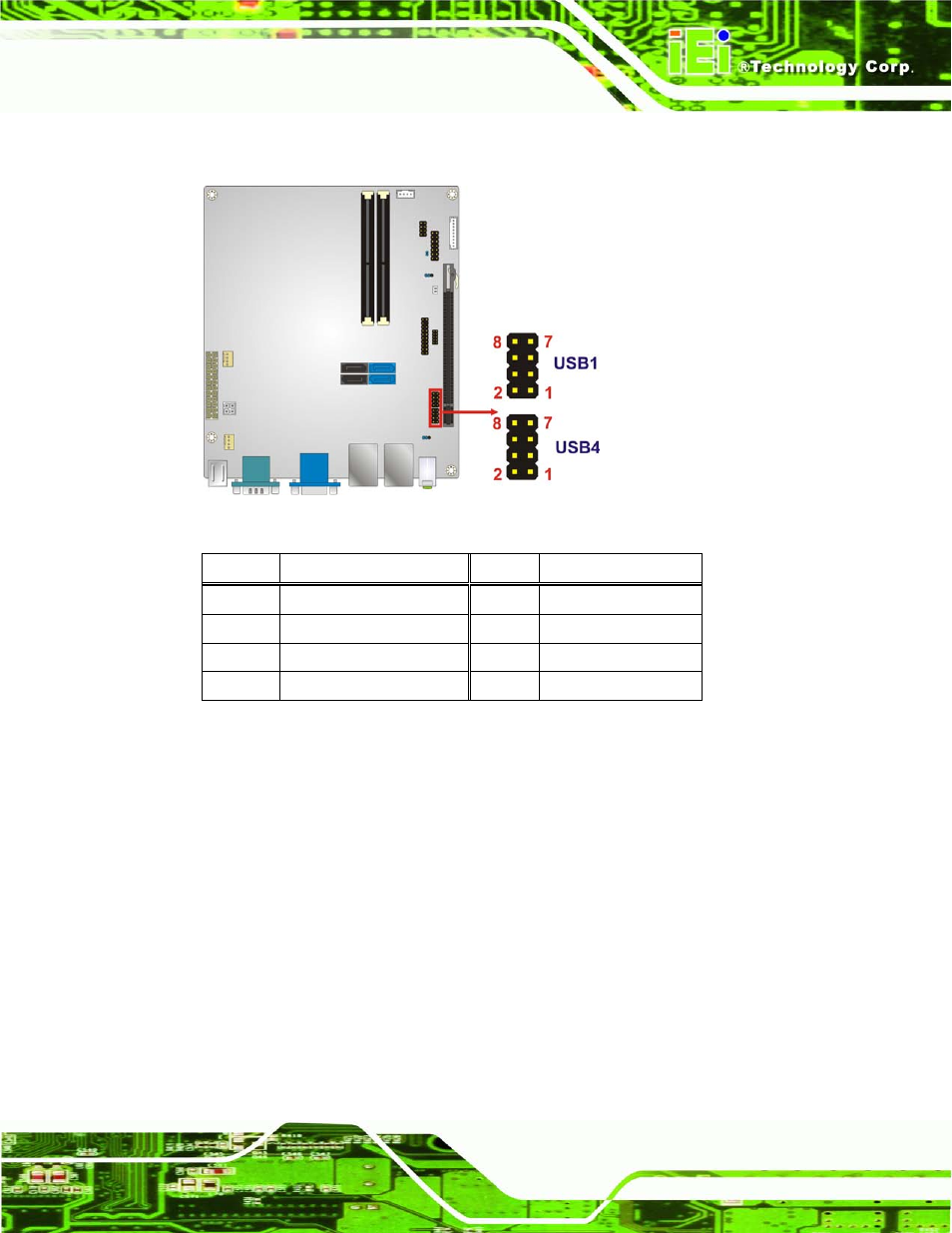

Figure 3-17: USB Connector Locations

PIN NO.

DESCRIPTION

PIN NO. DESCRIPTION

1

+5V

2

GND

3

USB20_C_N0/2

4

USB20_C_P1/3

5

USB20_C_P0/2

6

USB20_C_N1/3

7

GND

8

+5V

Table 3-14: USB Connector Pinouts

3.3 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c to r P a n e l

Figure 3-18 shows the KINO-AQ670 external peripheral interface connector (EPIC) panel.

The EPIC panel consists of the following:

 2 x Audio jacks

 1 x DVI connector

 2 x Ethernet connectors

 1 x Keyboard connector

 1 x Mouse connector

 2 x RS-232 serial port connectors

 2 x USB 2.0 connectors

 2 x USB 3.0 connectors
