KINO-AQ670

P a g e 47

4.4 J u m p e r S e ttin g s

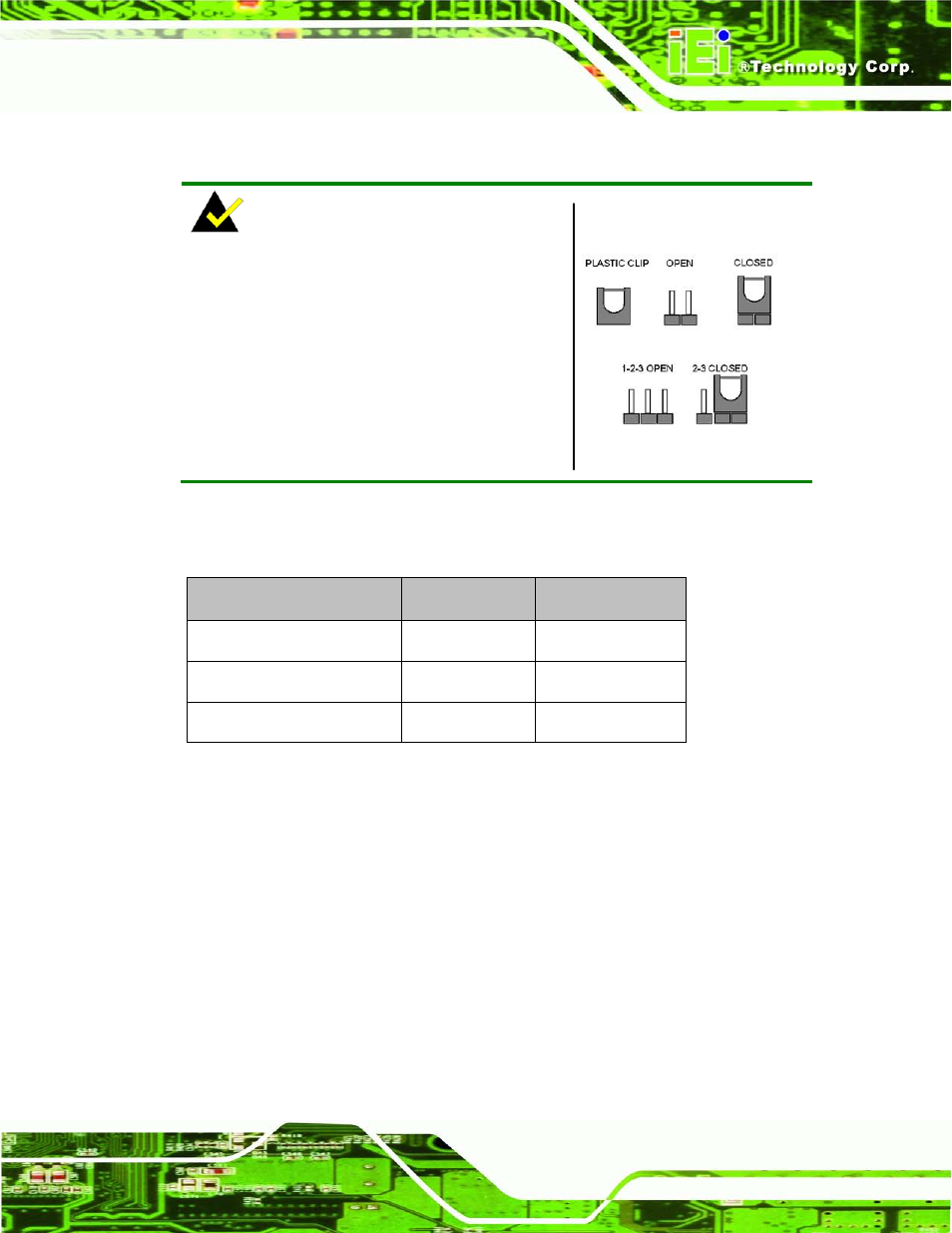

NOTE:

A jumper is a metal bridge used to close an

electrical circuit. It consists of two or three metal

pins and a small metal clip (often protected by a

plastic cover) that slides over the pins to connect

them. To CLOSE/SHORT a jumper means

connecting the pins of the jumper with the plastic

clip and to OPEN a jumper means removing the

plastic clip from a jumper.

Figure 4-8: Jumper Locations

Before the KINO-AQ670 is installed in the system, the jumpers must be set in accordance

with the desired configuration. The jumpers on the KINO-AQ670 are listed in Table 4-1.

Description

Type

Label

AT/ATX mode select

2-pin header

JATX_AT1

Clear CMOS

3-pin header

J_CMOS2

WOL Mode select

3-pin header

WOL_SEL1

Table 4-1: Jumpers

4.4.1 AT/ATX Mo d e S e le c t J u m p e r

J u m p e r La b e l:

JATX_AT1

J u m p e r Typ e :

2-pin header

J u m p e r S e ttin g s :

See Table 4-2

J u m p e r Lo c a tio n :

See Figure 4-9

The AT/ATX mode select jumper specifies the systems power mode as AT or ATX.

AT/ATX mode select jumper settings are shown in Table 4-2.
