1.1 In tro d u c tio n

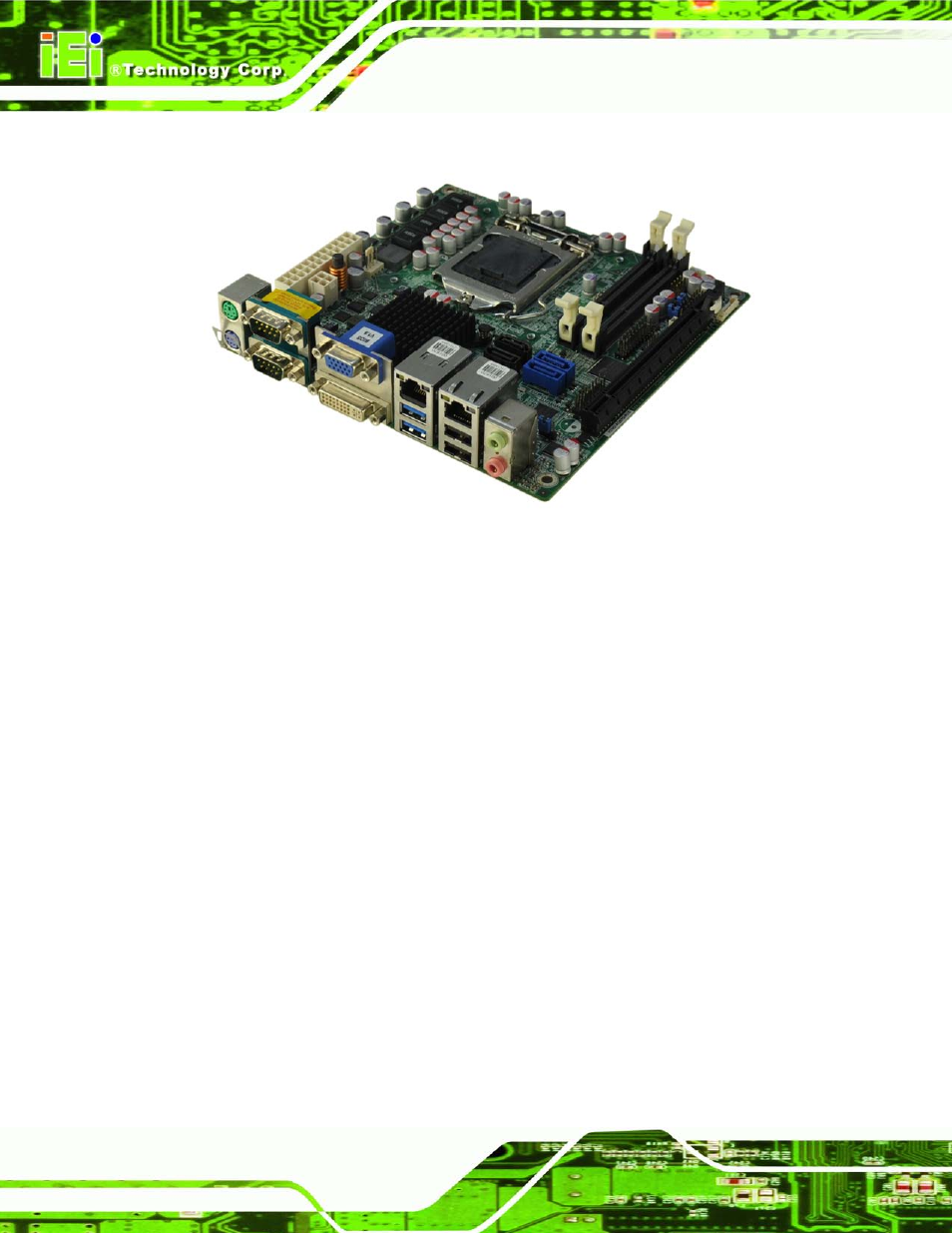

Figure 1-1: KINO-AQ670

The KINO-AQ670 is a Mini-ITX motherboard. It accepts a LGA1155 Intel® Core™ i7/ i5/

i3/ Celeron® processor and supports two 204-pin 1066/1333 MHz dual-channel DDR3

SO-DIMM modules up to 16 GB.

The integrated Intel® Q67 System Chipset supports two GbE LAN: one through the Intel®

82579 PHY with Intel® AMT 7.0 support and the other through the Intel® 82583V PCIe

controller.

The KINO-AQ670 includes a VGA connector and a DVI-D connector. Expansion and I/O

include one PCIe x16 slot, two USB 3.0 connectors on the rear panel by Fresco FL009,

two USB 2.0 connectors on the rear panel, four USB 2.0 by pin header, two SATA 6Gb/s

connectors, two SATA 3Gb/s connectors and one external PS/2 keyboard/mouse

connector. Serial device connectivity is provided by two external RS-232 connectors.
