68
CATC M ERLIN ’ S W AND 2.00 C HAPTER 7
User’s Manual Data Transfer Manager and Data Pipes

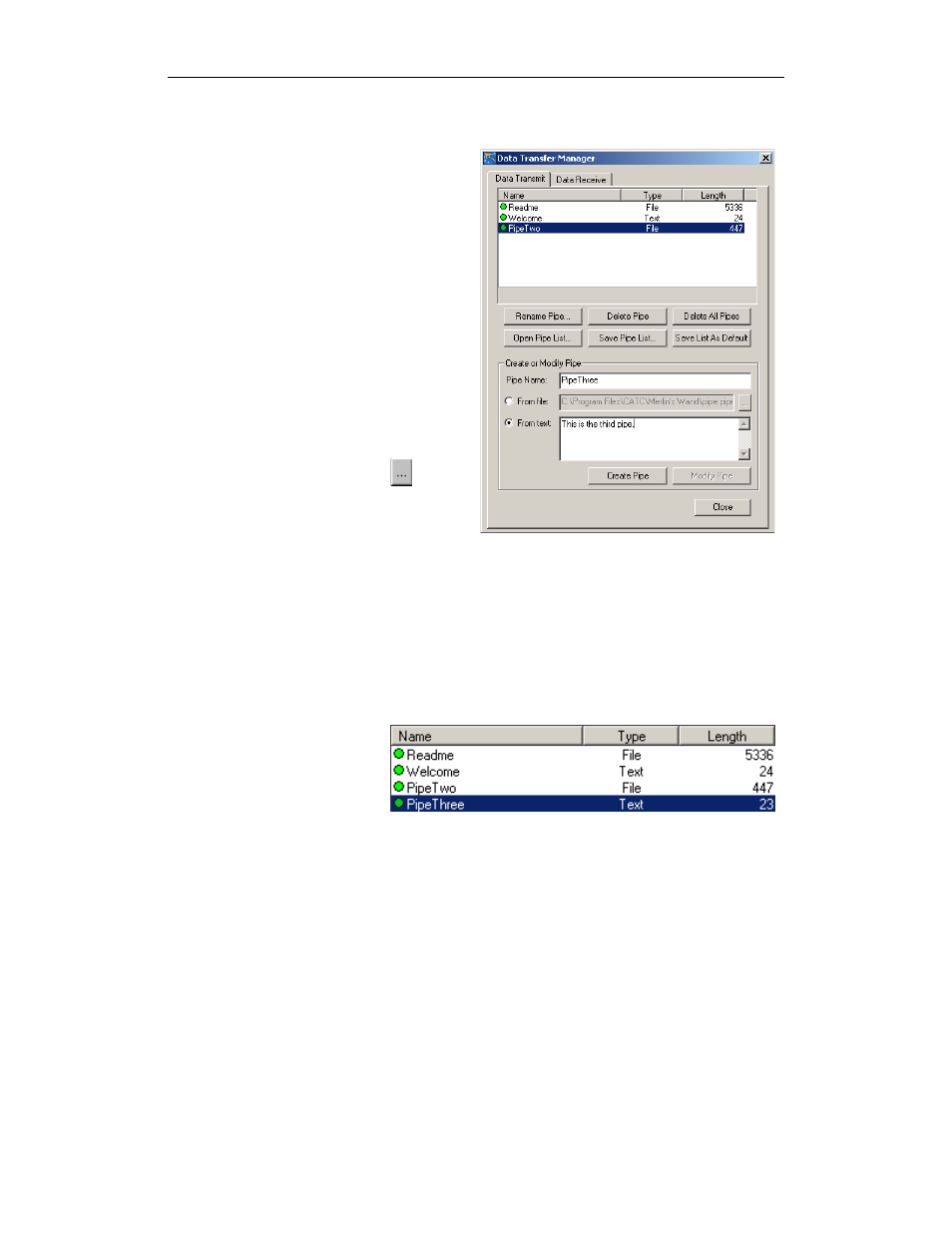

Data Transfer
Manager will open,
displaying the Data
Transmit page.
Step 2 Name the pipe by typing
a name into the text box
labeled Pipe Name.
Step 3
To create a pipe from a
file:
Select the From file
radio button. Type in a
filename and path or
navigate to the desired
file by clicking the
browse button
to
bring up the Open
dialog.
To create a pipe from
text:
Select the From text radio button and type text into the box
to its right.
Step 4 Click the Create Pipe button.
The pipe will be created, and its name, type and length will be displayed
in the list at the top of the Data Transmit page.
7.2 Using Data Pipes
Data Transfer Manager works in conjunction with Command Generator and
Script Manager to provide an easy way to transfer files between Merlin's
Wand and a Bluetooth wireless device over an RFCOMM or L2CAP
channel.
