11
CATC M ERLIN ’ S W AND 2.00 C HAPTER 2
User’s Manual Getting Started

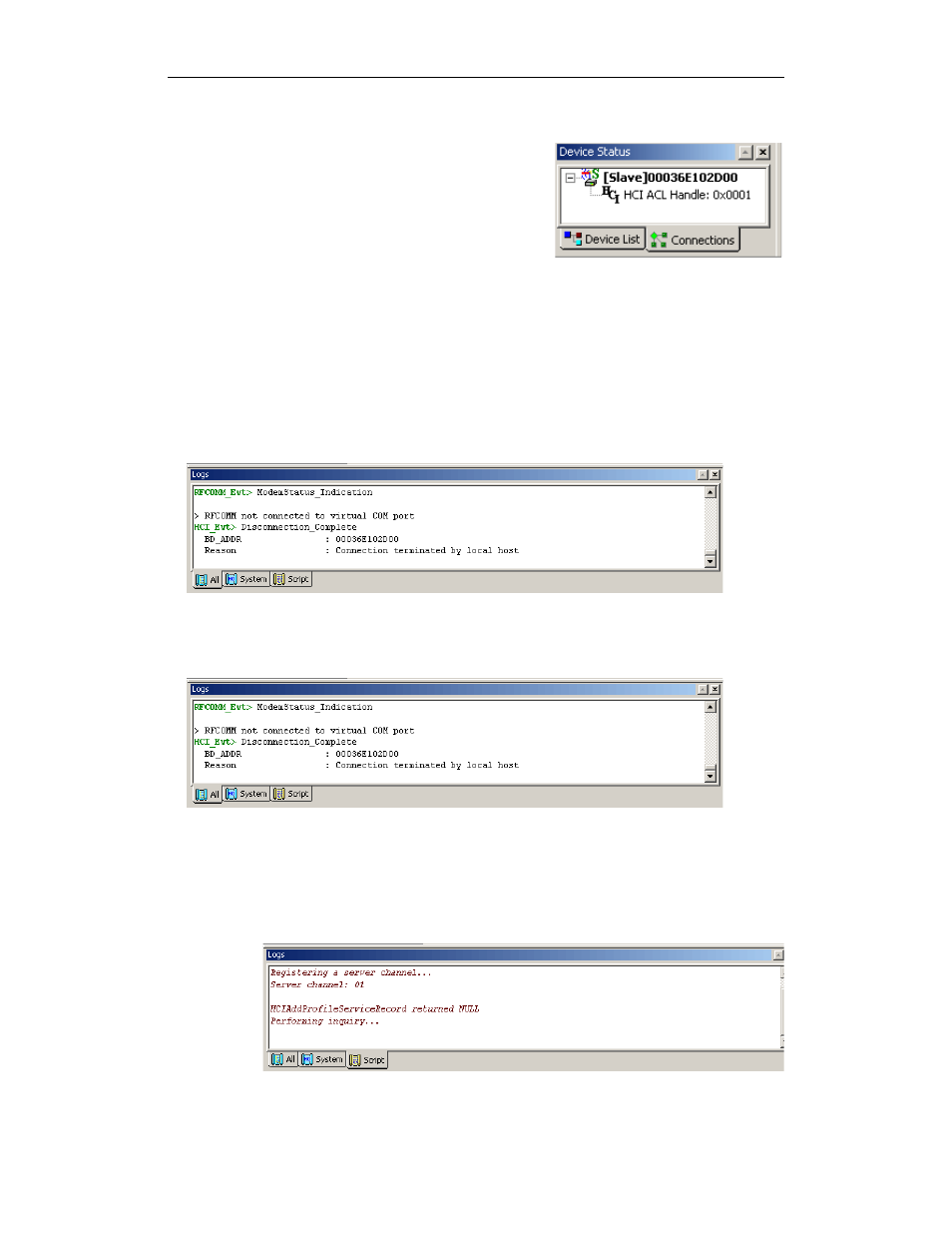

• Connections - Displays a
hierarchical list of all
connections between
Merlin’s Wand and other
devices. At the top of the list
is the address of the
connected device; below it are the various channels established
between Merlin’s Wand and the device. Symbols:
C = Connection; H = HCI ACL; S = HCI SCO; L = L2CAP;
R = RFCOMM; O = OBEX.
• At the bottom of the interface is the Logs window, which
contains tabs for the Event Log and the Script Log:
• All Log - Captures the commands and events of the
System and Scripts logs
• System Log - Maintains a log of all commands issued by
Merlin’s Wand and the events that ensue, such as a reply
by another device.
• Script Log - Maintains a record of the commands issued
by Script Manager and the events resulting from these
commands. If line numbers are referenced in the Script
Log, double-clicking on the line number will move the
cursor to that line in the Script Manager window.
