XSEL-R/S
x Other Parameters
No. Parameter Name
Initial Value
(Reference) Input Range
Remarks
49 Classification of Panel
7-Segment Display Data
0 0 to 9
0 : Controller Status Display
1 : Motor Current Indicator Display
The current pattern of each axis is displayed
instead of “Ready Status Display” and “Program
Executing Number Display”.
“Indicator Display Axis No. MIN” (on the right
end column) is to be indicated in “Other
Parameters No.50”.
2 : User Information Number Display (U001 to
U999)
User information number is displayed instead of
“Ready Status Display” and “Program
Executing Number Display” when the user
information number is other than 0.
“User Information Number Indication Global
Integral Variable Number” is to e indicated in
“Other Parameters No.50”.
3 : IA Net Station Number Display (IA00 to IA63)
IA Net Occupied Station Top Number is
displayed instead of “Ready Status Display”
only when IA Net is used.

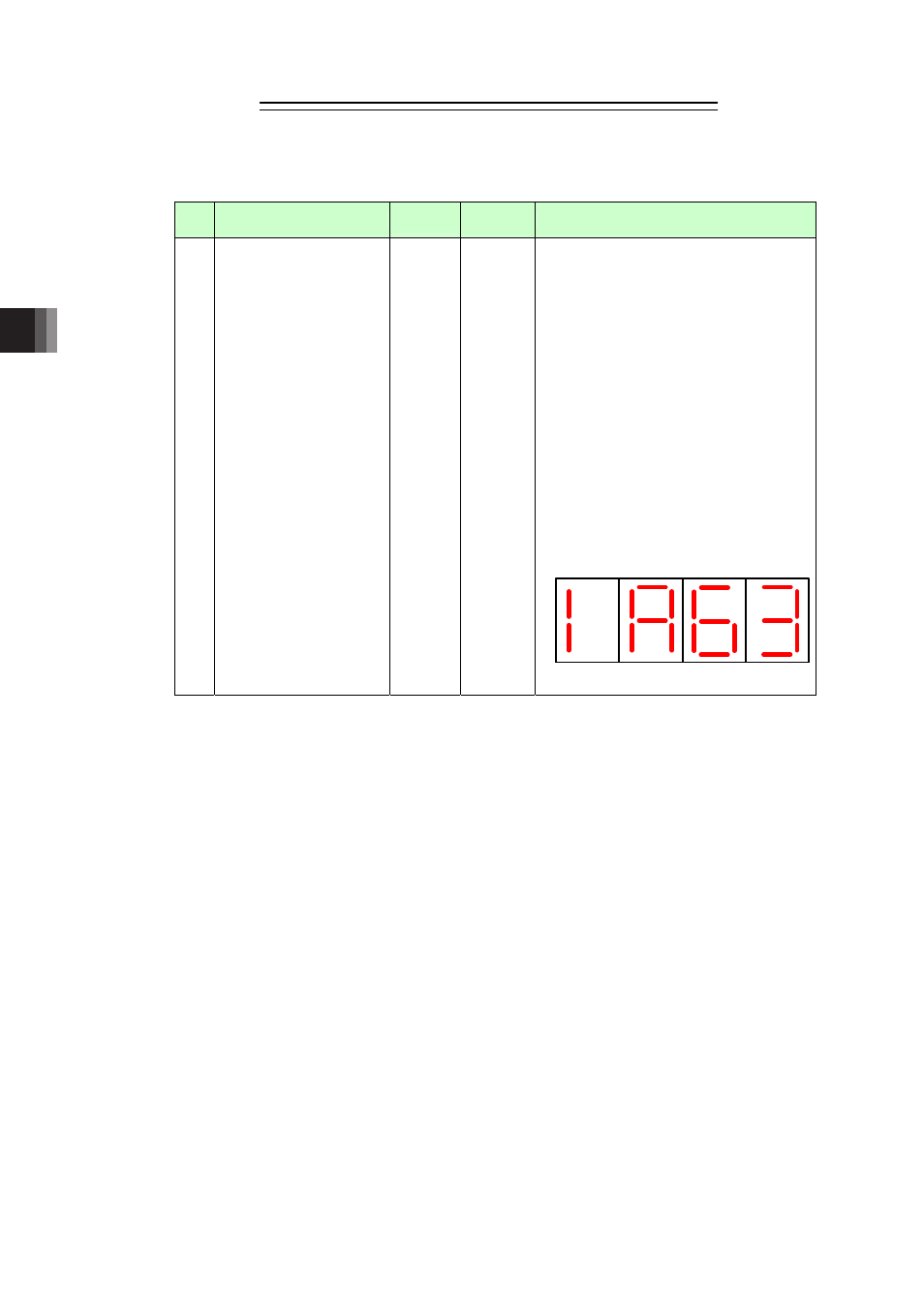

[Example] for IA Net Station No.63, the display
is as shown below.
Last 2 digits show the statin number.
