Chapter 1 Specifications Check
23
IA Net
XSEL-R/S

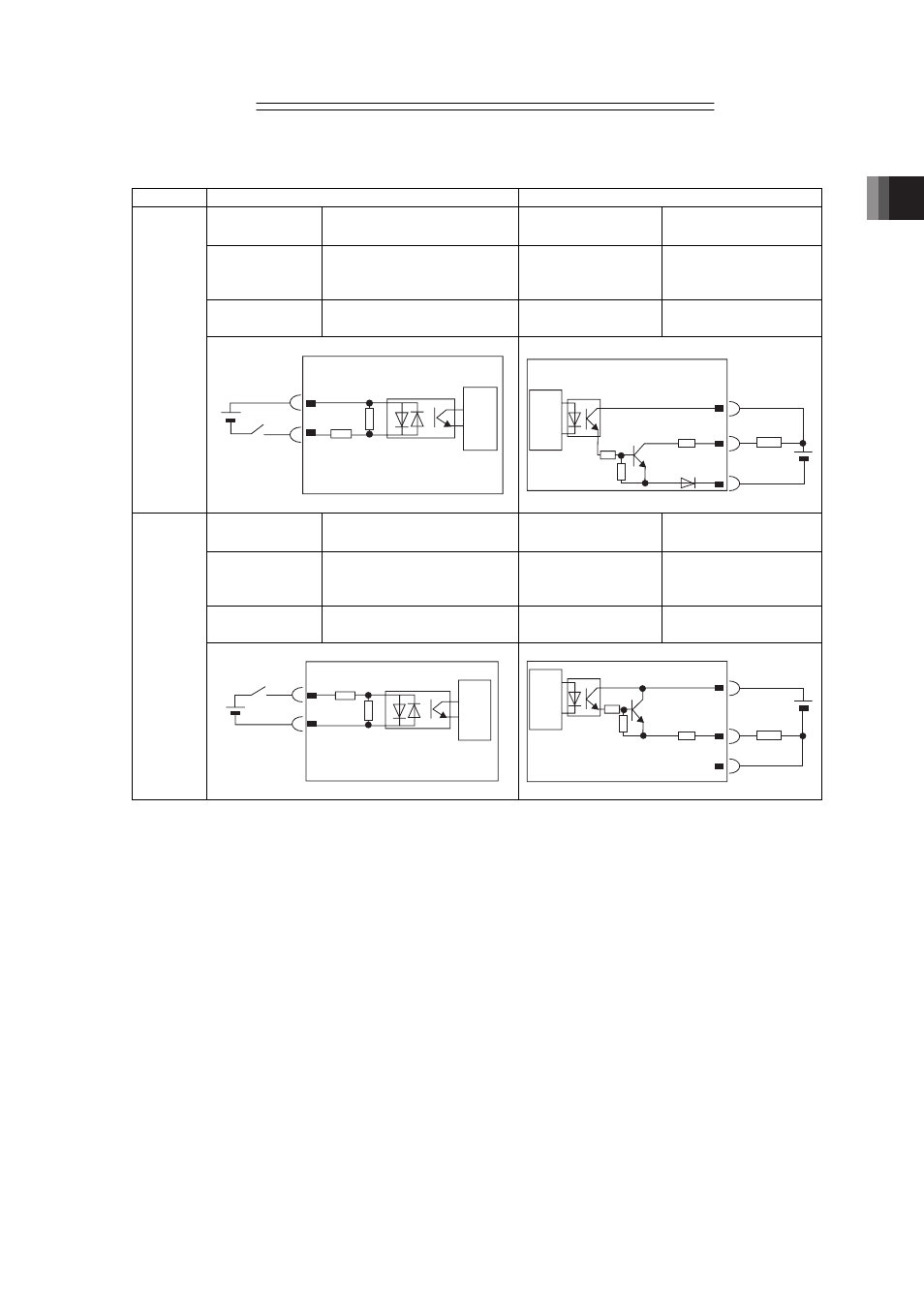

1.3 Extension I/O Unit PIO Input and Output Interface
Input section Output section
Input voltage 24V DC ± 10% Load voltage 24V DC
Input current 7mA per input
Peak load electric
current
100mA per output
Total of 8 outputs of
400mA
ON/OFF
Voltage
ON Voltage MIN 16V DC
OFF Voltage MAX 5V DC
Leakage current MAX 0.1mA/1 point
NPN
Type
Input
Terminal
P24
560
3.3K
XSEL
External Power Source
DC24V
Internal
Power
Source
Output
Terminal
P24
10
N
XSEL
External Power
Source DC24V
Load
Internal
Power
Source
Input voltage 24V DC ± 10% Load voltage 24V DC
Input current 7mA per input
Peak load electric
current
100mA per output
Total of 8 outputs of
400mA
ON/OFF
Voltage
ON Voltage MIN 8V DC
OFF Voltage MAX 19V DC
Leakage current MAX 0.1mA/1 point
PNP
Type
Input
Terminal
N
560
3.3K
XSEL
External Power Source
DC24V
Internal
Power
Source
Output
Terminal
P24
10
N
XSEL
External Power
Source DC24V
Internal
Power
Source
Load
Each terminal of input and output are isolated from internal circuit with opto-isolators.
