Chapter 3 Operation (Construction for Network)
44
IA Net
XSEL-R/S

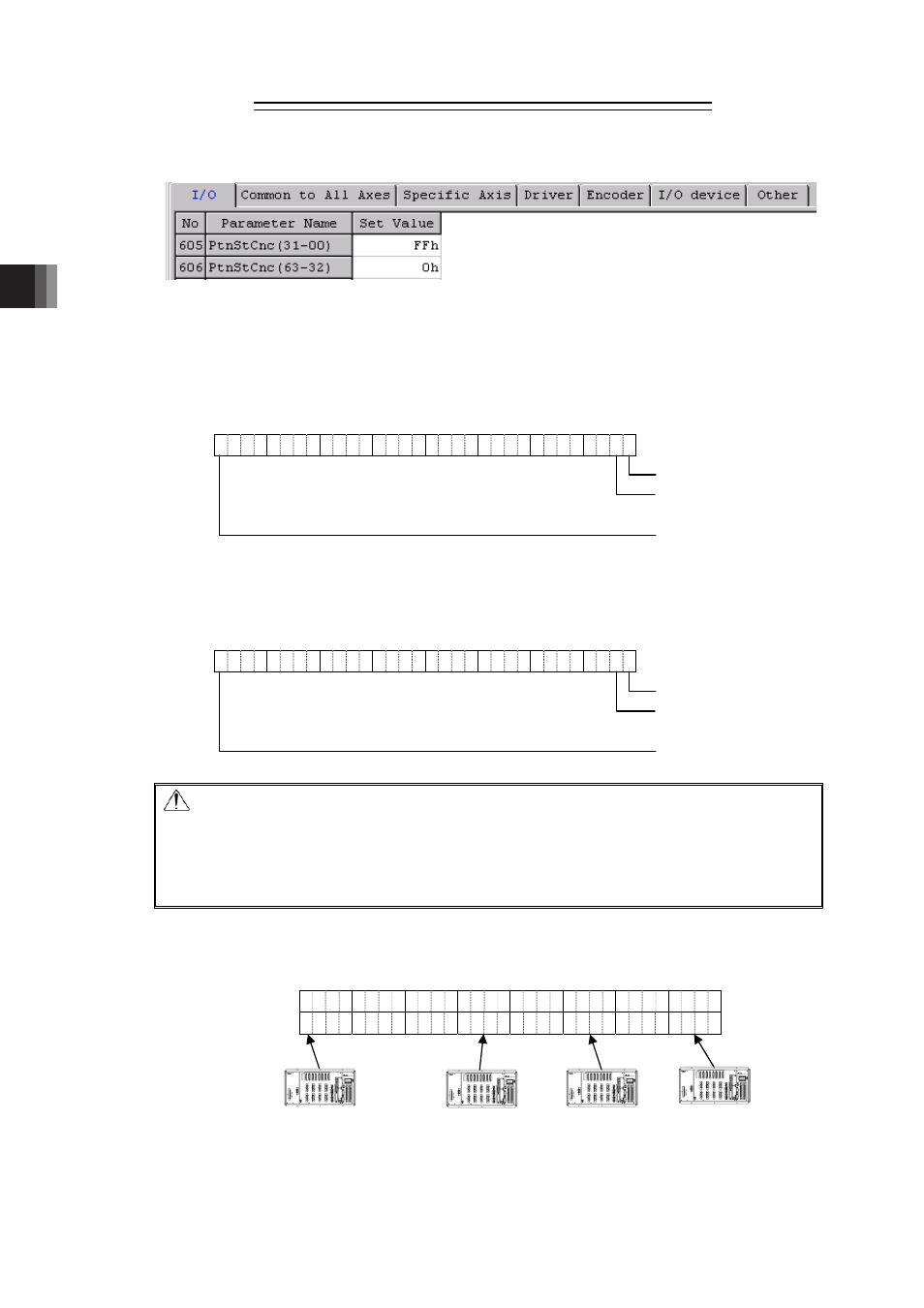

[Setting 3: Setting of All Connected Station Patterns]
To I/O Parameters No.605 and 606, set whether to connect all the stations (Station No.0 to 63)
in the IA Net network by inputting 0: Not to Use (Not Connected) or 1: Connected.The setting
value is calculated in the hexadecimal system with the bit patterns of 0 and 1 described above.
The relation between each bit and station number is as explained below:
x I/O Parameter No.605 “IA Net All Connected Station Patterns (31-00)”
x I/O Parameter No.606 “IA Net All Connected Station Patterns (63-32)”
Caution 1) With the settings of these parameters, a judgment is made to see a link error.
In case these parameters are not set properly, the judgment of a link error
cannot be executed correctly.
2) An extension I/O unit occupies four stations with multiples of 4 as the top
station number. Pay attention not to duplicate the station number when
assigning in the shared memory.
Example Shown below is an example for setting for the network construction as shown
below:
b31 b0
b31 b0
b31 b0
Station No. 31 30 29 28 27 26 2524232221201918171615141312 11 10 9 8 7 6 5 4 3 2 1 0
Settings in No.605 1 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 1 1 0 0 0 0 0 1 1 1 1
Station No.0
Station No.1
:
Station No.31
Station No.32
Station No.33
:
Station No.63 0
XSEL 1st Unit
(4 stations
occupied)
XSEL 2nd Unit
(2 stations
occupied)
XSEL 3rd Unit
(4 stations
occupied)
XSEL 4th Unit
(1 station
occupied)
