Chapter 3 Operation (Construction for Network)
45
IA Net
XSEL-R/S

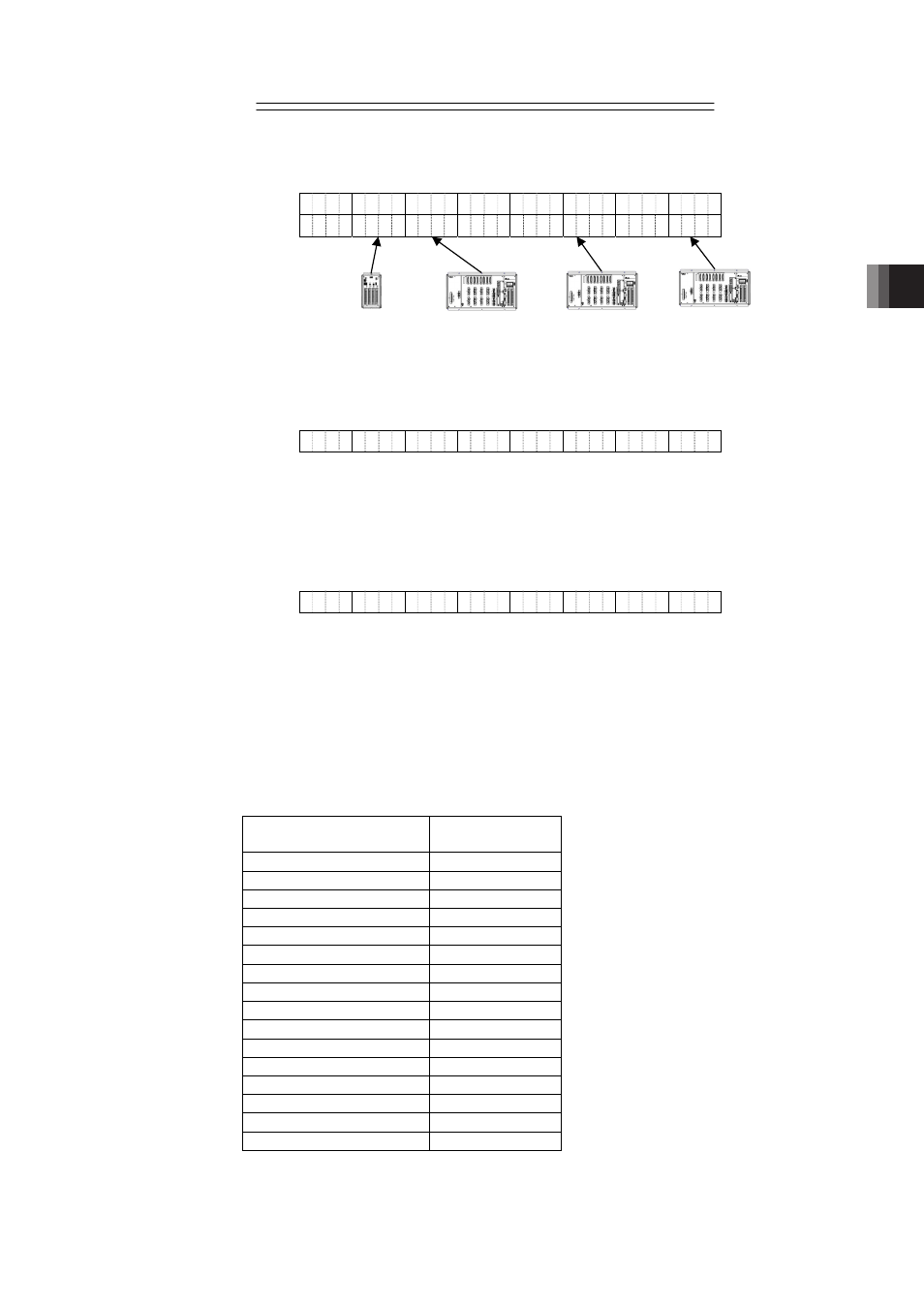

Convert the bit data set in No.605 into the hexadecimal numbers.
The value to set in No.605 is 800F060F
H
.
Convert the bit data set in No.606 into the hexadecimal numbers.
The value to set in No.606 is 0FF00C0E
H
.
Reference Matching Table for Bit Data (Binary Numbers)
and Hexadecimal Numbers
Bit Data
(Binary Numbers)
Hexadecimal
Numbers
0000 0
0001 1
0010 2
0011 3
0100 4
0101 5
0110 6
0111 7
1000 8
1001 9
1010 A
1011 B
1100 C
1101 D
1110 E
1111 F
b31 b0
Station No. 63 62 61 60 59 58 575655545352515049484746454443424140393837 36 35 34 33 32
Settings in No.606 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 1 1 1 0
Settings in No.605 1 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 1 1 0 0 0 0 0 1 1 1 1
Ļ Ļ Ļ Ļ Ļ Ļ Ļ Ļ Ļ
(Covert into
hexadecimal
numbers)
8 0 0 F 0 6 0 F
Settings in No.606 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 1 1 1 0
Ļ Ļ Ļ Ļ Ļ Ļ Ļ Ļ Ļ
(Covert into
hexadecimal
numbers)
0 F F 0 0 C 0 E
XSEL 5th Unit
(3 stations
occupied)
XSEL 6th Unit
(2 stations
occupied)
XSEL 7th Unit
(4 stations
occupied)
Extension I/O Unit
(4 stations
occupied)
