8. External Dimensions
72

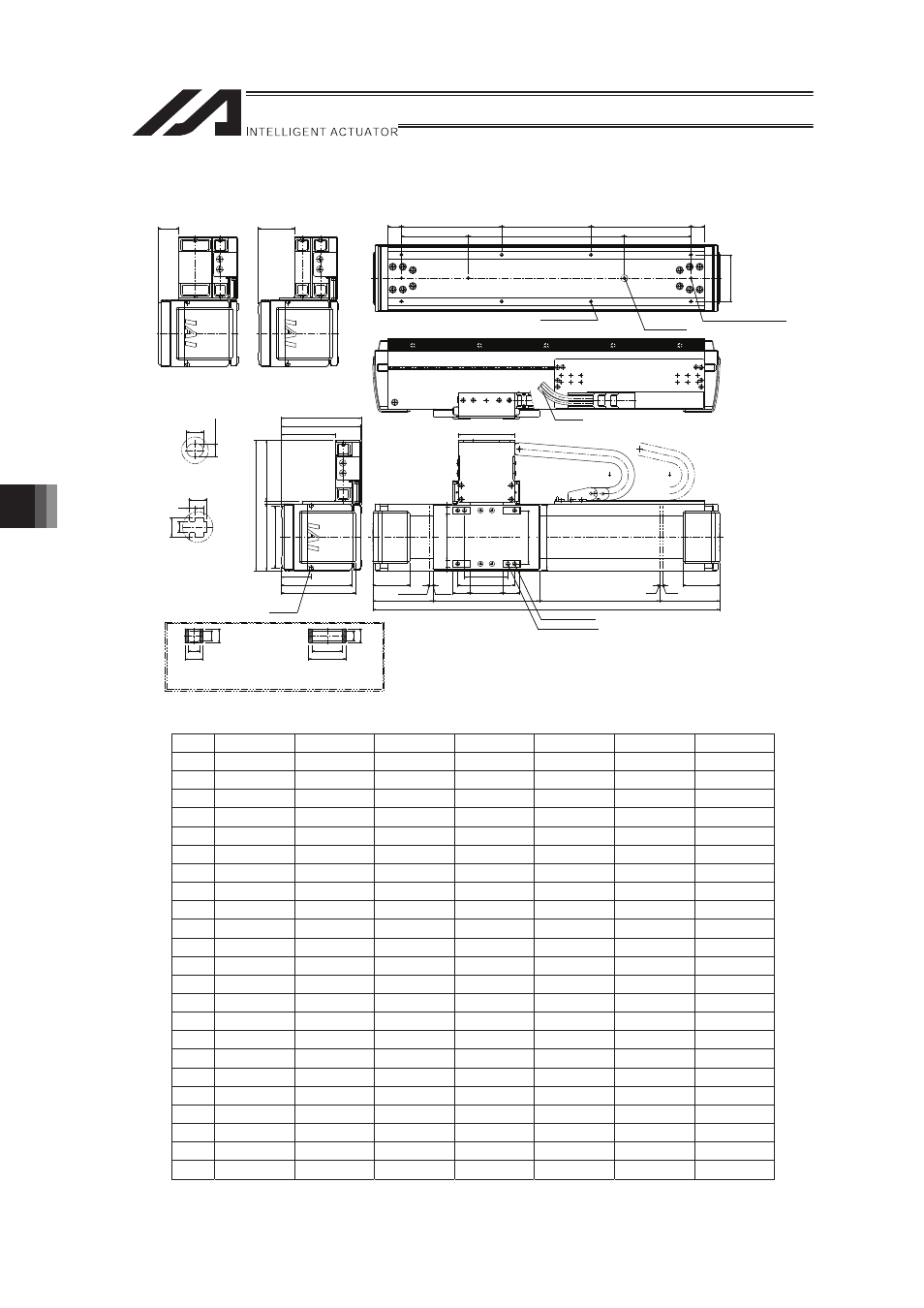

8.7.3 Horizontally Oriented Wall Mount Type (Cable Track Opposite Type)
(Option)
S10SS Horizontally Oriented Wall Mount Type (Cable Track Opposite Type) (Option)
No. st L A B C D Weight (kg)
1 90 430 1 44 8 144 8.9
2 180 520 1 134 8 234 9.7
3 270 610 1 224 8 324 10.6
4 360 700 2 14 12 414 11.4
5 450 790 2 104 12 504 12.3
6 540 880 2 194 12 594 13.1
7 630 970 2 284 12 684 13.9
8 720 1060 3 74 16 774 14.7
9 810 1150 3 164 16 864 15.6
10 900 1240 3 254 16 954 16.4
11 990 1330 4 44 20 1044 17.2
12 1080 1420 4 134 20 1134 18.1
13 1170 1510 4 224 20 1224 18.9
14 1260 1600 5 14 24 1314 19.7
15 1350 1690 5 104 24 1404 20.6
16 1440 1780 5 194 24 1494 21.4
17 1530 1870 5 284 24 1584 22.2
18 1620 1960 6 74 28 1674 23.1
19 1710 2050 6 164 28 1764 23.9
20 1800 2140 6 254 28 1854 24.7
21 1890 2230 7 44 32 1944 25.6
22 1980 2320 7 134 32 2034 26.4
23 2070 2410 7 224 32 2124 27.2
ME
195
91
4
100 93
120
119
81
111
106
44
160
5
90 st
5
90
70
100
20 20
100
10
10
25
85
50 25
31 54
SE
84 5
4
5.8 3.3
2.7
5.5
1.8
97 70 80
24
15
14 19 19 14
40
49
Cable track for user
(M type)
Cable track for user
(S type)
Detail view of G
Detail view of F
M3 T-slot
(F)
+0.012 0
L(st+340)
4-M6, depth 10
2-φ6H7, depth 10
65±0.02
ME (*) HOME
(55) (55)
(Reamer pitch: ±0.02)
A×150 P A×150 P
2-φ4H7, reamed depth 5 2-slot,
depth 5 (G)
C-M5, depth 10
(D)
(B)
Cable
*The slider goes up the ME in the home-return operation.
Pay attention to interference to peripherals.
ME : Mechanical end
SE : Stroke end
Cable Track for User Wiring
Section Dimensions (S type)
Cable Track for User Wiring
Section Dimensions (M type)
