1. Specifications Check

26

1.4.3 Cable Track for User M Type

Attachment Orientations 1 to 6 (Model: UM1 to UM6)

These are the indications when attaching M Type User Cable Track to the standard cable track.

Attachment orientation is also to be indicated. The attachment orientation of cable track is either

the four orientations in Standard Horizontal Orientation Mount or two orientations in Horizontally

Oriented Wall Mount. [Refer to “[Attachment Orientation]” in the “1.4.1 Cable Track Attachment

Orientations 2 to 6 (Model: CT2 to CT6)”]

Refer to the table below for the availability of Single Slider and Double Slider.

Option Model

Attachment Orientation

Single Slider

Double Slider

UM1

Attachment Orientation 1

UM2

Attachment Orientation 2

UM3

Attachment Orientation 3

UM4

Attachment Orientation 4

UM5

Attachment Orientation 5

UM6

Attachment Orientation 6

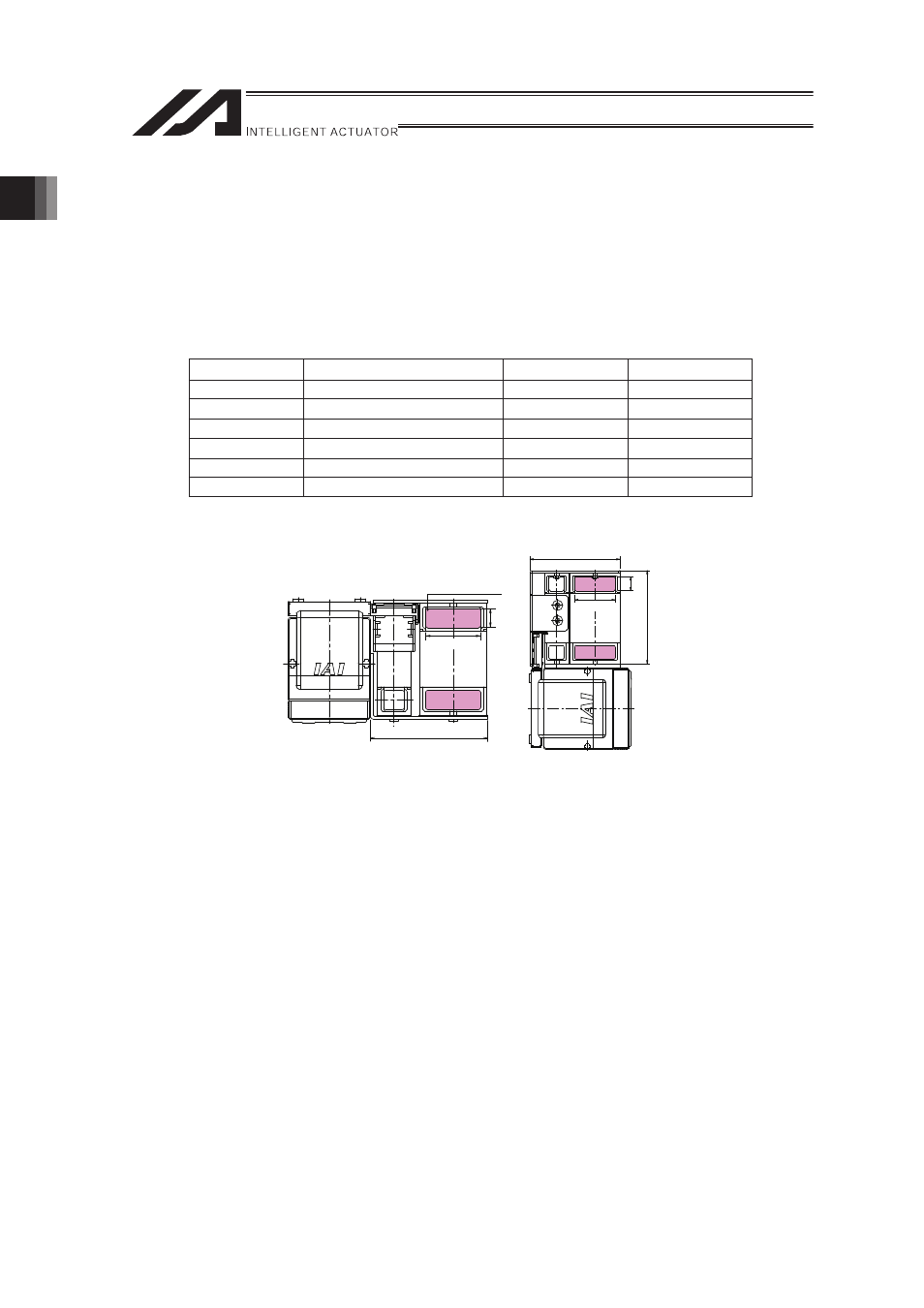

[Dimensional Drawing for M Type User Cable]

14

88

40

91

14

40

85

Cable Track for user

Horizontal Type

Horizontally Oriented

Wall Mount Type
