8. External Dimensions
63

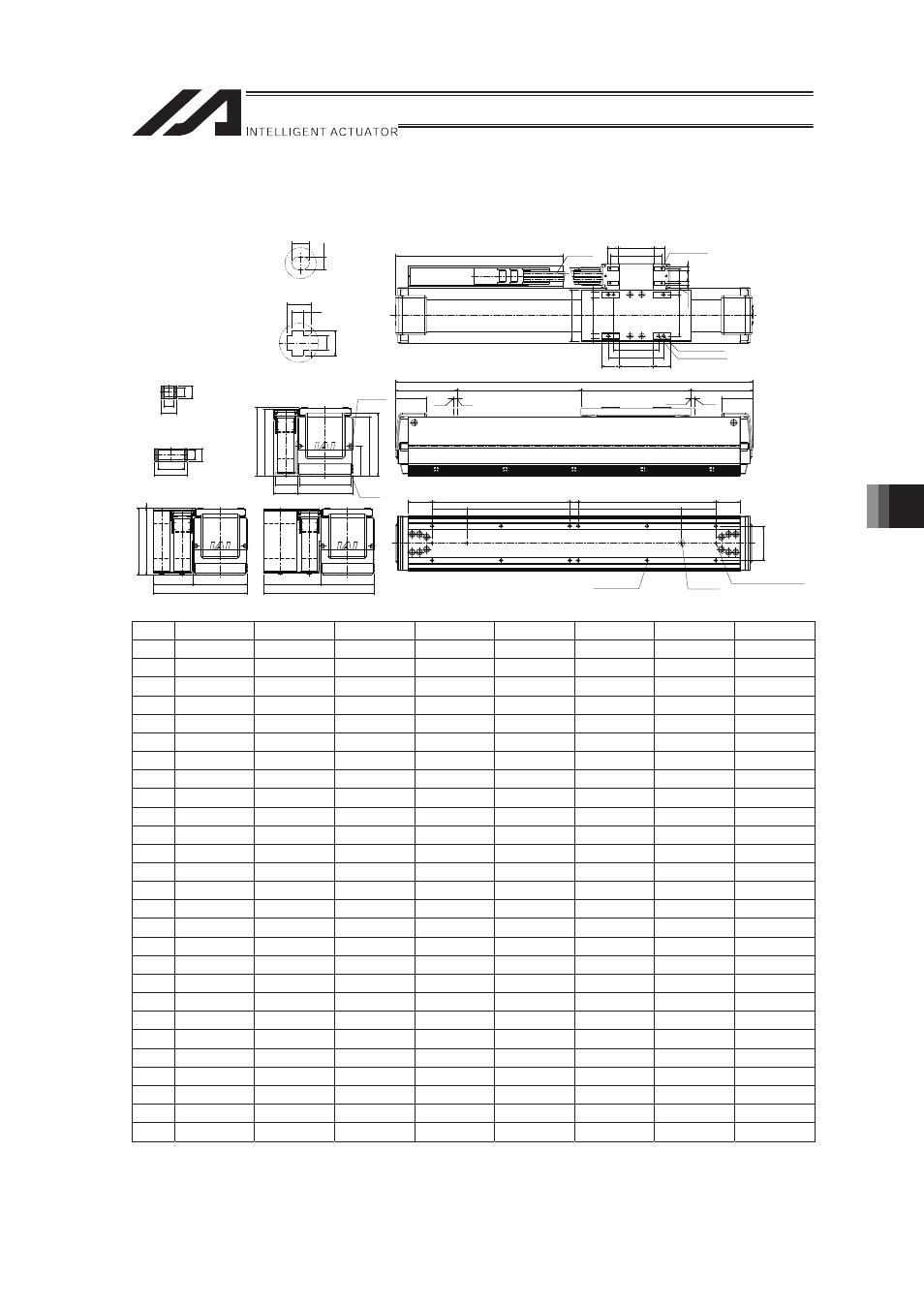

8.4 S8HS
8.4.1 Standard Type
S8HS Standard Type
No. st L A B C D E Weight (kg)
1 60 398 1 92 8 192 193 5.0
2 120 458 1 152 8 252 218 5.4
3 180 518 2 12 12 312 243 5.7
4 240 578 2 72 12 372 268 6.1
5 300 638 2 132 12 432 293 6.4
6 360 698 2 192 12 492 318 6.8
7 420 758 3 52 16 552 343 7.1
8 480 818 3 112 16 612 393 7.5
9 540 878 3 172 16 672 418 7.9
10 600 938 4 32 20 732 443 8.2
11 660 998 4 92 20 792 468 8.6
12 720 1058 4 152 20 852 493 8.9
13 780 1118 5 12 24 912 543 9.3
14 840 1178 5 72 24 972 568 9.6
15 900 1238 5 132 24 1032 593 10.0
16 960 1298 5 192 24 1092 618 10.4
17 1020 1358 6 52 28 1152 643 10.7
18 1080 1418 6 112 28 1212 693 11.1
19 1140 1478 6 172 28 1272 718 11.4
20 1200 1538 7 32 32 1332 743 11.8
21 1260 1598 7 92 32 1392 768 12.1
22 1320 1658 7 152 32 1452 793 12.5
23 1380 1718 8 12 36 1512 843 12.9
24 1440 1778 8 72 36 1572 868 13.2
25 1500 1838 8 132 36 1632 893 13.6
26 1560 1898 8 192 36 1692 918 13.9
27 1620 1958 9 52 40 1752 943 14.3
52
5
0 +0.012 4
2.7 1.8
5.5
3.3 5.8
60 80
140
1
99 100
165
85 80
19 14
15
24
49
40
14 19
32
80 35
86 91
74
43
97 100
Cable 75
16 52 16
E
21
6
15
6
80
25 50 25
75
8
8
5 (45)
89 160 st 89
(45) 5
L(st+338)
ME SE ME
35 (B) 35
50 (D) 50
50
16.5
Detail view of G
Detail view of F
Reference
surface
Cable track for user (S type) Cable track for user (M type)
M3 T-slot
(F)
A×100 P A×100 P
2-φ4H7, reamed depth 5 2-slot,
depth 5 (G) C-M5, depth 10
HOME
65±0.02 4-M5, depth 10
2-φ4H7, depth 8
(Reamer pitch: ±0.02)
4-M3, depth 5
*The slider goes up the ME
in the home-return operation.
Pay attention to interference
to peripherals.
ME : Mechanical end
SE : Stroke end
Cable Track for User Wiring
Section Dimensions (S type)
Cable Track for User Wiring
Section Dimensions (M type)
