6. Maintenance and Inspection

53

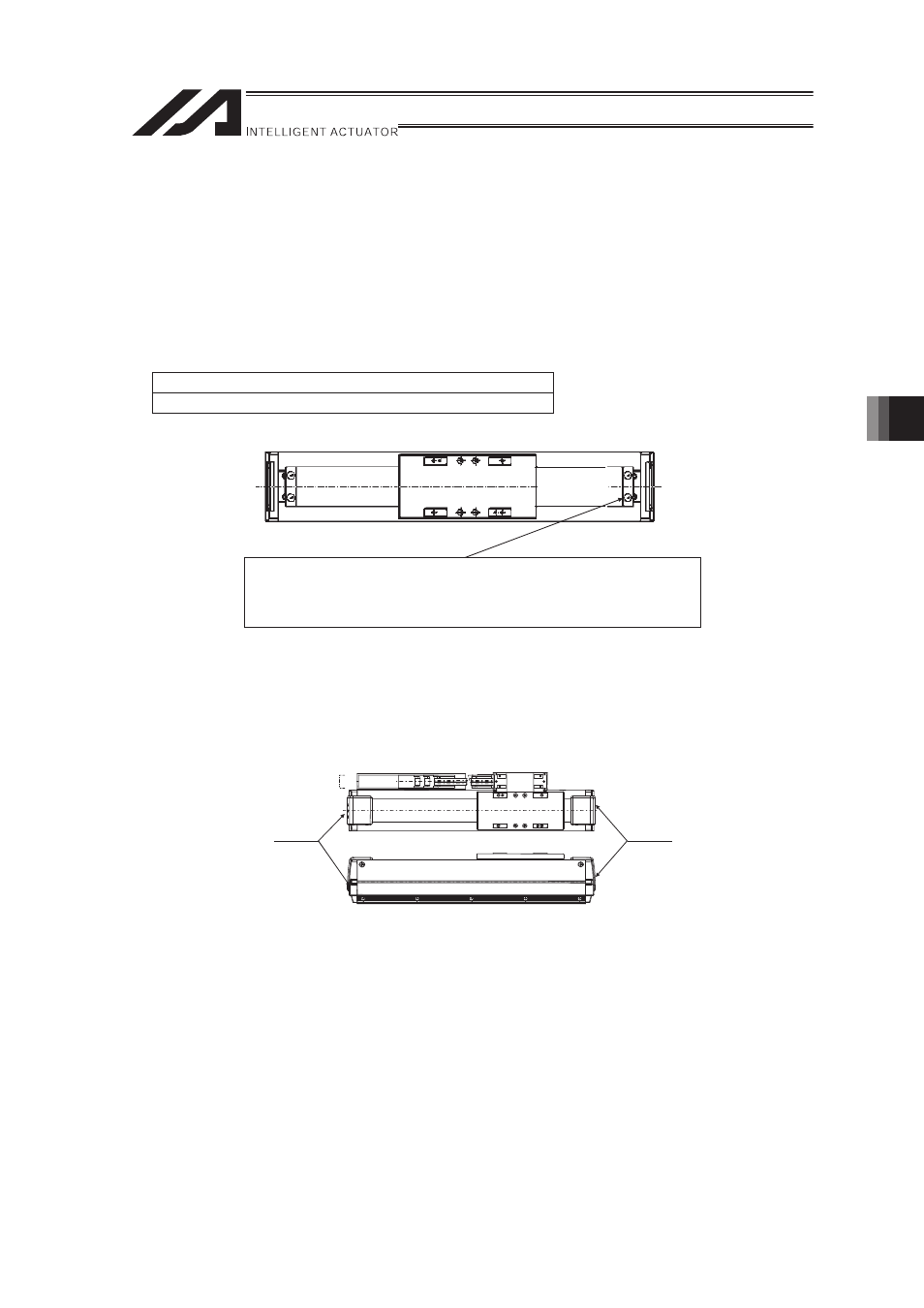

6.6.3 Operation Check

1) Move the slider to check the tension of the stainless sheet.

Move the slider to check the tension. Specifically, check if the stainless sheet is positioned

uniformly on the right and left without presenting meandering or waving over the entire stroke

range.

If the stainless sheet is not uniformly positioned on the right and left or is waving, repeat the

adjustment.

2) Securely tighten the thin-head screws that have been loosened with a 2.5mm-sized hex

wrench to affix the stainless steel sheet in position.

Tightening torque for thin-head screws (reference value)

359 N•cm (36.7 kgf•cm)

Alternately tighten the two thin-head screws that have been tightened loosely

until both screws are tightened to a uniform torque. Ensure uniformity of

torque, because if the two screws are not tightened uniformly, the sheet may

meander or lift.

Move the slider to check once again if the stainless sheet is tensioned properly. Lastly, remove

the check lines using alcohol, etc.

3) Install the right and left covers. To install each cover, hold the right and left sides and push in

the cover.

Covers

Covers
