6. Maintenance and Inspection

50

Replace the stainless steel sheet with the procedures from 6.6.1 to 6.6.3.

Adjust the tension of the stainless steel sheet with the procedures in 6.6.2 and 6.6.3.

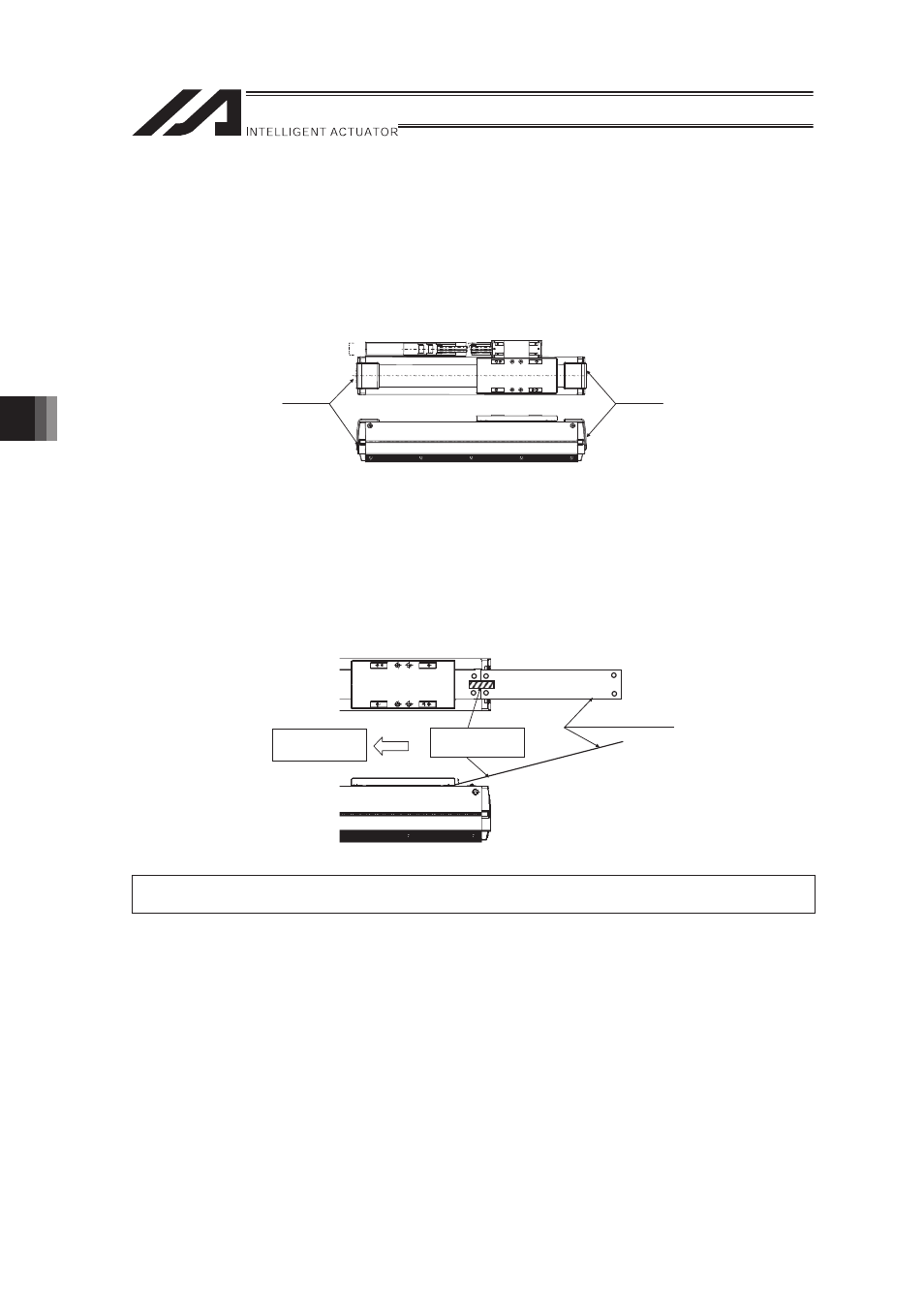

6.6.1 Replacement Procedure for Stainless Sheet

Replace the degraded stainless steel sheet with a new one by following the steps described below.

1) Remove the right and left covers. To remove each cover, hold both ends and pull out the cover

slowly.

Covers

Covers

2) Check a new stainless sheet to confirm absence of scratches or soiling.

3) Loosen the screws affixing the damaged stainless steel sheet with a 2.5mm-sized hex wrench,

and remove the retainer plates.

4) Connect the damaged stainless sheet and new stainless sheet using adhesive tape.

5) Slowly pull out the damaged stainless sheet.

6) Confirm that the new stainless sheet has been installed in the slider.

Slowly pull out

the sheet.

Connect using

adhesive tape.

New stainless sheet

Connect the damaged stainless sheet and new stainless sheet using adhesive tape, and then

slowly pull out the damaged stainless sheet so that the new sheet takes its position.
