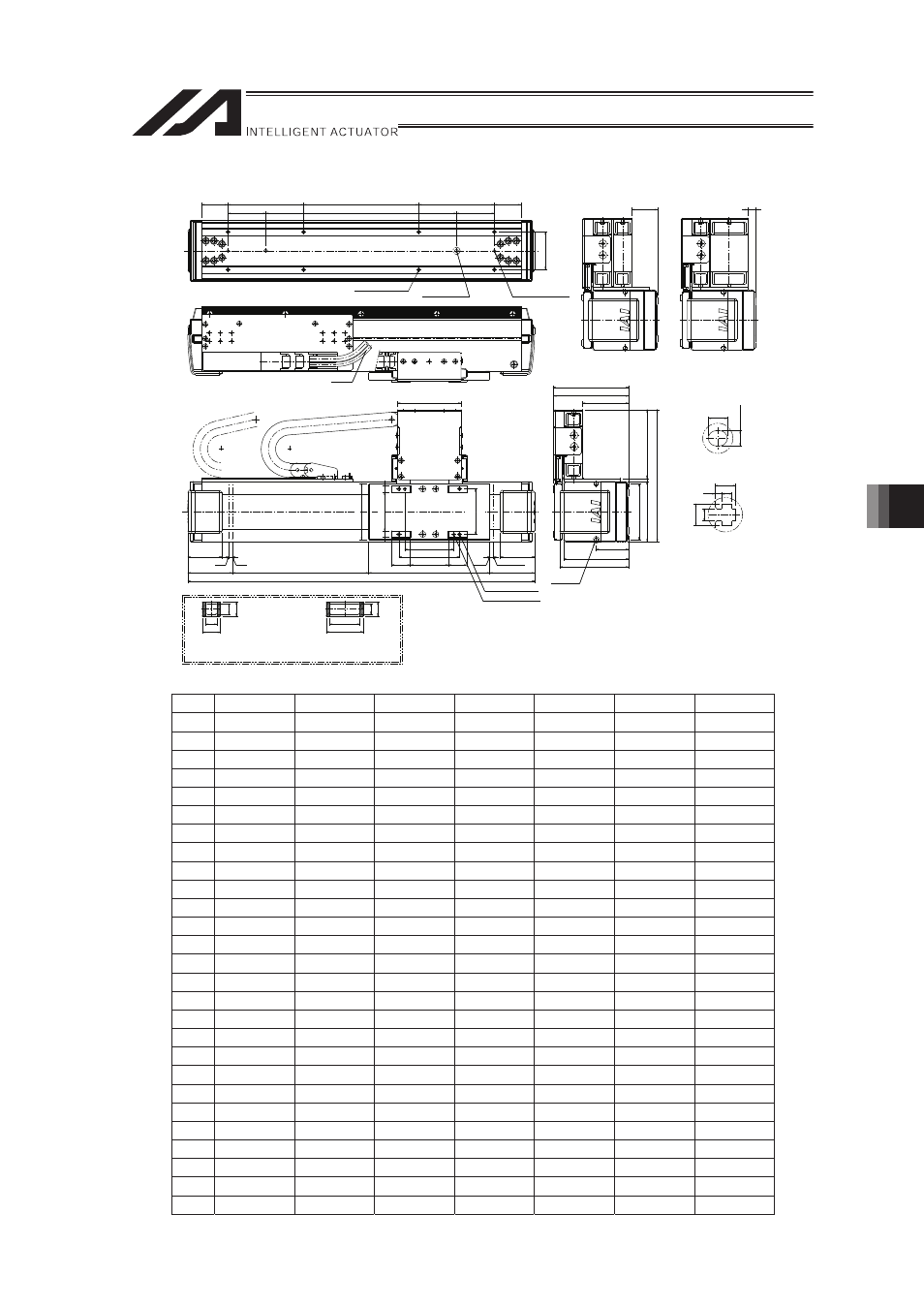

8. External Dimensions

61

8.3.2 Horizontally Oriented Wall Mount Type (Standard)(Option)

S8SS Horizontally Oriented Wall Mount Type (Standard) (Option)

No.

st

L

A

B

C

D

Weight (kg)

1

60

338

1

32

8

132

4.9

2

120

398

1

92

8

192

5.2

3

180

458

1

152

8

252

5.6

4

240

518

2

12

12

312

5.9

5

300

578

2

72

12

372

6.3

6

360

638

2

132

12

432

6.6

7

420

698

2

192

12

492

7.0

8

480

758

3

52

16

552

7.4

9

540

818

3

112

16

612

7.7

10

600

878

3

172

16

672

8.1

11

660

938

4

32

20

732

8.4

12

720

998

4

92

20

792

8.8

13

780

1058

4

152

20

852

9.2

14

840

1118

5

12

24

912

9.5

15

900

1178

5

72

24

972

9.9

16

960

1238

5

132

24

1032

10.2

17

1020

1298

5

192

24

1092

10.6

18

1080

1358

6

52

28

1152

10.9

19

1140

1418

6

112

28

1212

11.3

20

1200

1478

6

172

28

1272

11.7

21

1260

1538

7

32

32

1332

12.0

22

1320

1598

7

92

32

1392

12.4

23

1380

1658

7

152

32

1452

12.7

24

1440

1718

8

12

36

1512

13.1

25

1500

1778

8

72

36

1572

13.4

26

1560

1838

8

132

36

1632

13.8

27

1620

1898

8

192

36

1692

14.2

11

34

50

50

(D)

35

(B)

50

35

175

91

4

80

74

91

86

43

100

99

61

ME

SE

5

(45)

(45)

5

59

st

59

160

8

8

25

50

25

80

84

Cable

24

15

14 19

19

14

40

49

75

52

60

5

4

5.5

2.7

1.8

5.8 3.3

+0.012

0

Cable track for user

(S type)

Cable track for user

(M type)

Detail view of G

Detail view of F

M3 T-slot

(F)

4-M5, depth 10

2-φ4H7, depth 8

ME (*)

HOME

65±0.02

L(st+278)

(Reamer pitch: ±0.02)

A×100

P

A×100

P

2-φ4H7,

reamed depth 5

2-slot,

depth 5 (G)

C-M5, depth 10

*The slider goes up the ME in the home-return operation.

Pay attention to interference to peripherals.

ME

: Mechanical end

SE

: Stroke end

Cable Track for User Wiring

Section Dimensions (S type)

Cable Track for User Wiring

Section Dimensions (M type)
