73

Evolver 303 Dual Purge Robotic Atomizers - Parts Identification

Fluid Coils (Separate Sales Parts Only)

If purchasing spare parts, they must be modified as

explained.

To ensure proper sealing and holding, the fittings

require that the ends of the fluid coils have a groove

cut into them as shown (see Figure 37). Use groove

cutter A11567-00 by sliding the end of the tool over

the tubing until it bottoms out. Hold the tubing

in one hand and the tool in the other. Make three

complete revolutions of the tool, on the tubing, in

the direction of the arrow stamped on the tool. To

remove the tool, hold the tube and the main body of

the tool with one hand, slide the rear portion of the

tool back until it stops. Pull out the tubing from the

end of the tool. By pulling back the rear portion of

the tool, it relieves the pressure of the cutting edge

off of the tubing before sliding it out. Trim off ends

to dimensions shown. End should be cut off square.

Slide the fitting and ferrules onto the tube as shown.

The tapered ferrule must go past the newly cut groove

to properly lock into place when installed.

Tighten nuts into manifolds by hand until it stops.

Using a 9/16" end-wrench, tighten 1/4-1/2 turn.

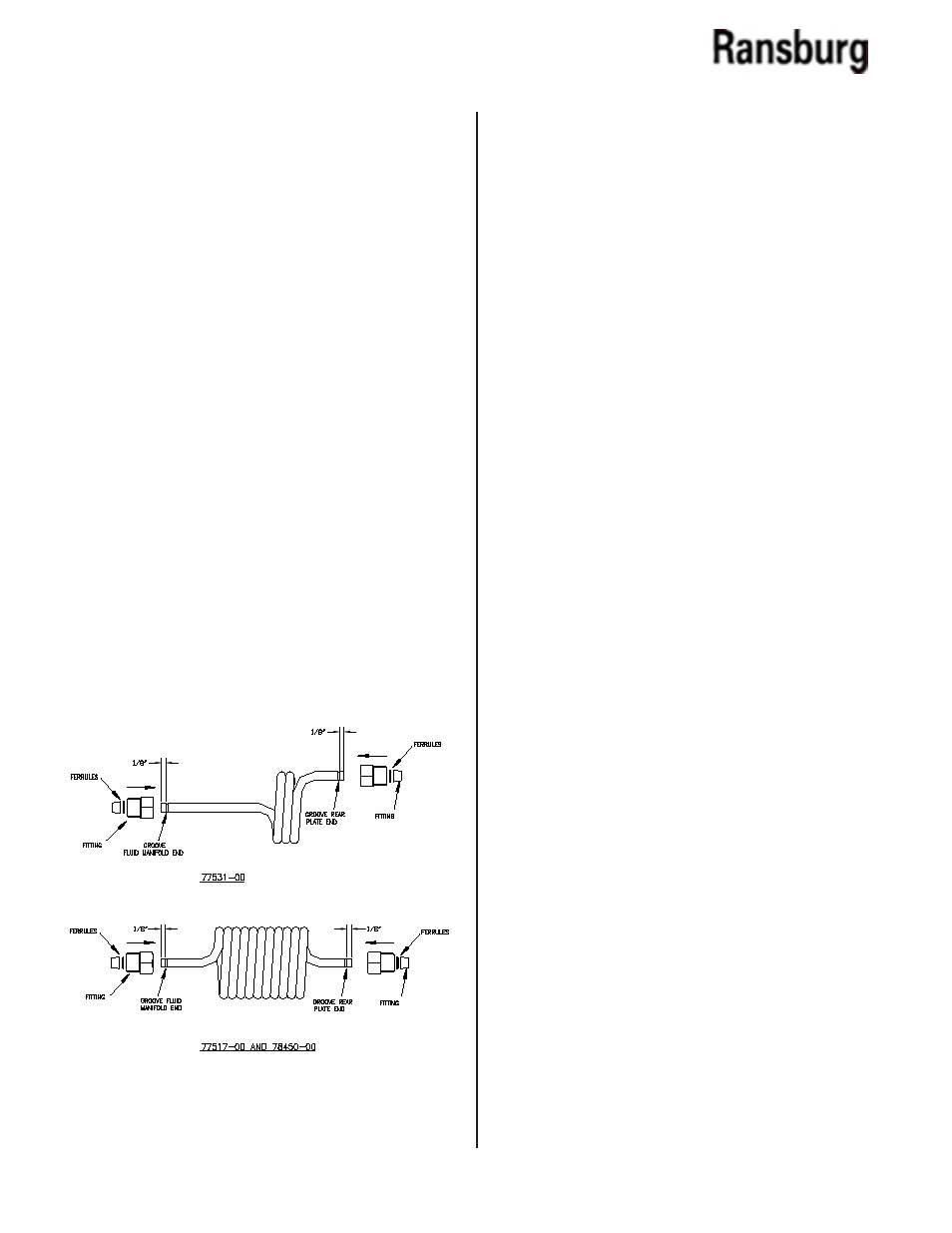

Figure 37: Fluid Coils

NOTES
