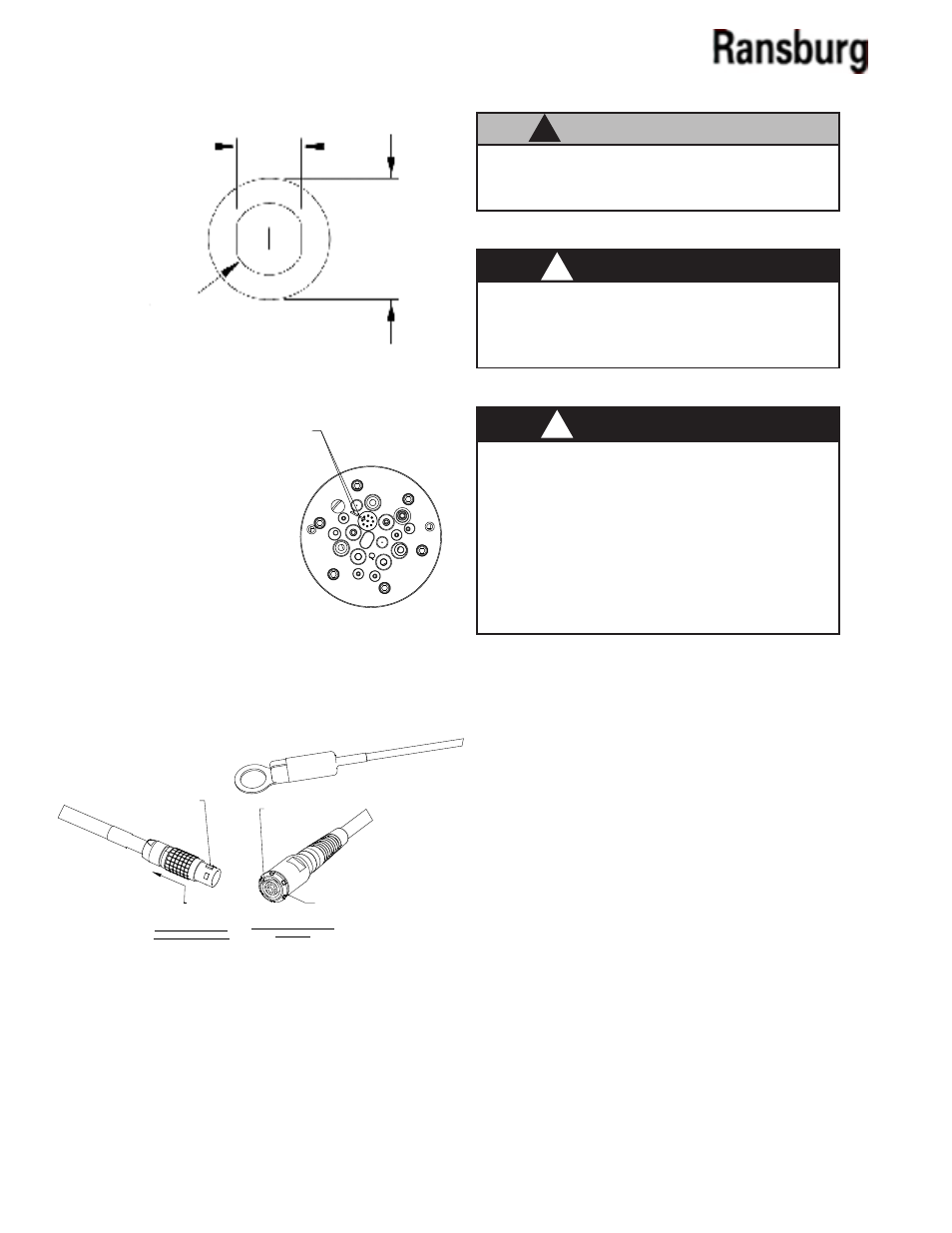

Evolver 303 Dual Purge Robotic Atomizers - Installation

Figure 7: Robot Plate

ALIGN TIMING MARKS ON ROBOT PLATE

AND LOW VOLTAGE CABLE CONNECTOR AS SHOWN.

TIGHTEN SET SCREW TO 5-10 LBS./IN (0.56-1.13 Nm) TORQUE

ROBOT PLATE

(ATOMIZER SIDE)

>

Do not exceed 100-ft. combined length of

the low voltage cables.

C A U T I O N

!

>

If a non-explosion proof junction box/termi-

nal strip is used, it must be located outside the

hazardous area.

W A R N I N G

!

>

Install and route the hoses and cable so that

they are NOT exposed to temperatures in excess

of 120

°

F. Ensure that all hose and cable bends

are NOT LESS THAN a 6-inch (15cm) radius and

are not subjected to more than 360

°

of torsional

twist. Failure to comply with these parameters

could cause equipment malfunctions that might

create HAZARDOUS CONDITIONS!

W A R N I N G

!

Figure 8: Quick-Disconnect Cables

FEMALE KEY SLOT

RAISED MALE KEY

PUSH TO RELEASE

BULKHEAD AND MICROPAK

CABLE END

MALE CONNECTOR AND

APPLICATOR CABLE END

CONNECT HERE TO BULKHEAD OR

ATTACH GROUND CABLE HERE

OPTIONAL GROUND CABLE

0.53"

(13.49mm)

0.59"

(15.00mm)

1.00"

(25.40mm)

Figure 6: Bulkhead Cut-Out Diagram

AA-08-01.1
