48

Evolver 303 Dual Purge Robotic Atomizers - Maintenance

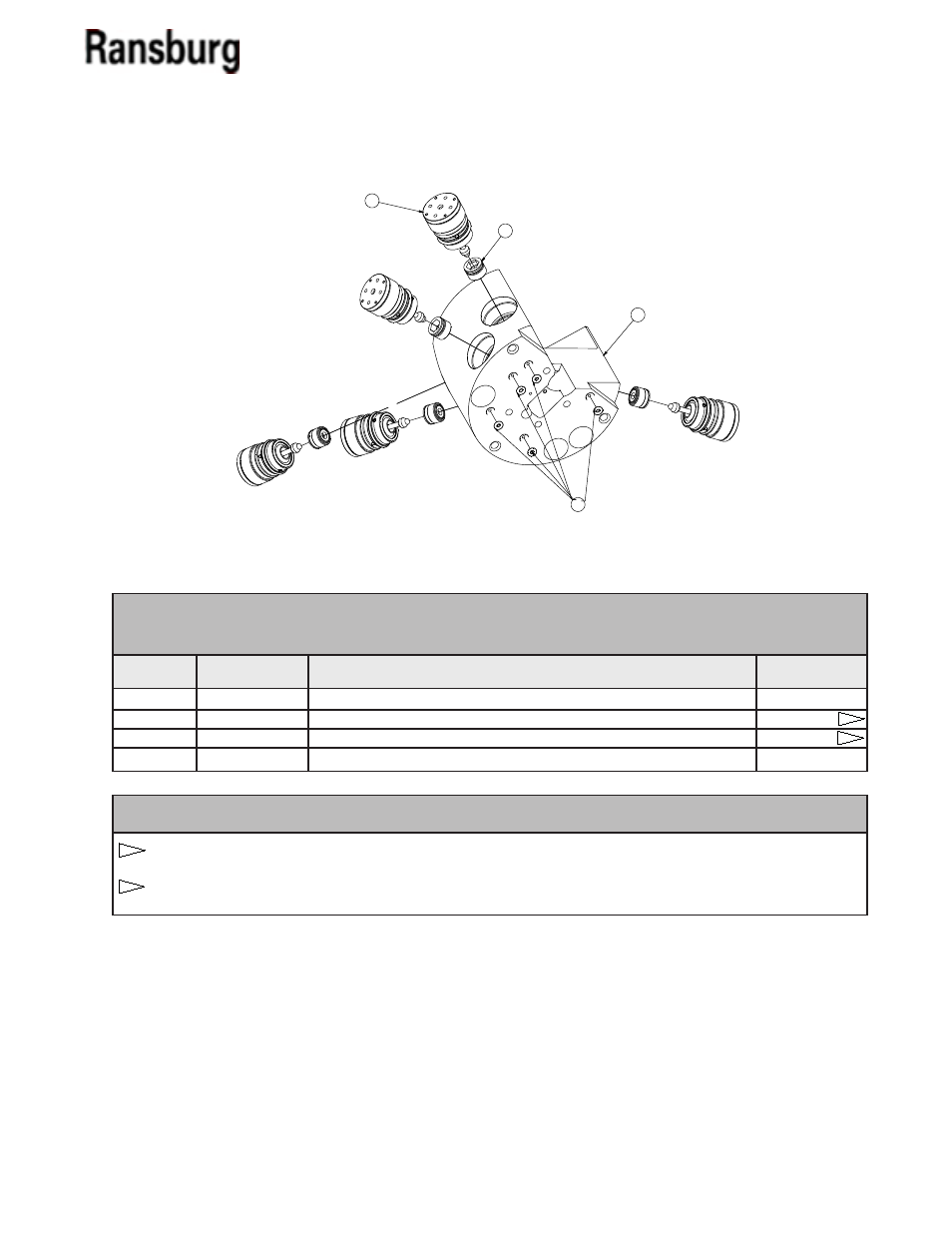

Figure 24: A12376-00 Dual Purge Valve Manifold Disassembly

1

A12286-00

Valve, Manifold, RMA-303 Dual Purge

1

2

77367-00

Seat, Valve

5

3

78949-00

Assembly, Valve

5

4

79001-38

O-Ring, Solvent Proof

5

Item #

A12376-00 DUAL PURGE VALVE MANIFOLD DISASSEMBLY -

PARTS LIST (Figure 24)

Part #

Description

Qty

2

1

Install assemblies as shown. Apply A11545-00 petroleum jelly to o-rings. Torque to 15-20 lbs•in (1.70-2.3

Nm) after valve is down.

Install valve seat assemblies as shown. Apply A11545-00 petroleum jelly to o-rings. Torque to 15-20 lbs•in

(1.70-2.3 Nm)

PARTS LIST BULLET DEFINITION TABLE - (Figure 24)

1

2

3

1

4

2

AA-08-01.1
