71

Evolver 303 Dual Purge Robotic Atomizers - Parts Identification

75777-01

Single Head Spray Applicator

75777-02

Dual Head Spray Applicator

75777-03

Robot Wrist Flange

75777-XX SPRAY

APPLICATOR COVERS

Part #

Description

The 74035, Test Air Cap and Gauge Assembly, is

designed for use with a Test Station or while the ap-

plicator is connected to the robot or reciprocator. The

test air cap is comprised of two air pressure gauges,

pressure gauge stand, special 74061-XX air caps, and

all required tubing and fittings.

The air cap has two tapped holes for small barbed

tube fittings. The fittings are located so that the

gauges connected to them will measure the actual

cap pressure of the atomization and pattern air.

Using this test cap will assure uniform atomization

and pattern quality, regardless of air supply tube

lengths from one applicator to another.

73896-01 Electrode and Air Cap

Protector

This is a plastic cylinder that fits over the air cap

retainer. The protector keeps the electrode and other

spray head parts from being damaged during booth

cleaning and at other times when the spray applica-

tor is not in use.

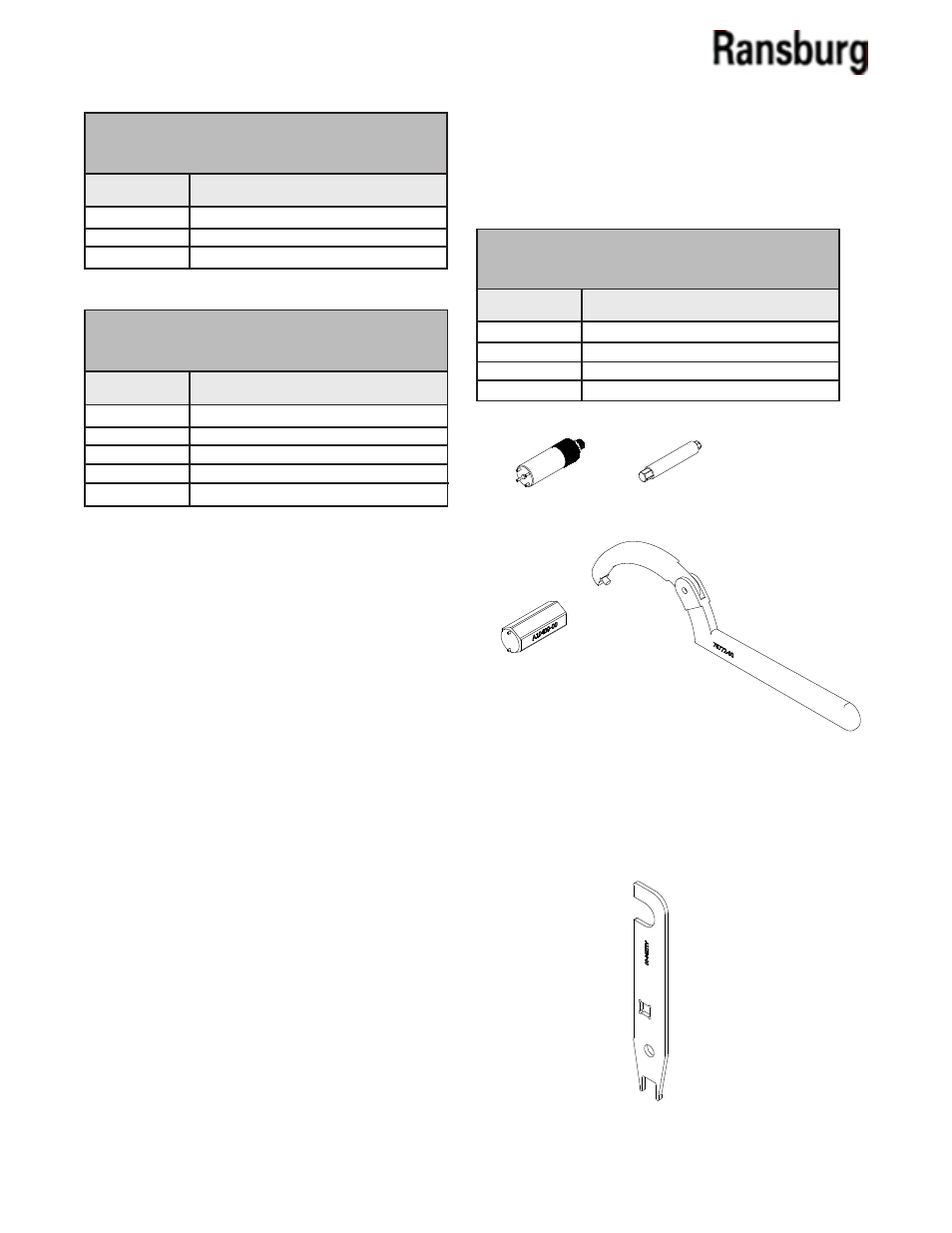

Figure 35: A11284-00 Support and Rod Tool

79203-00 Tool Kit

Provided with each applicator is a tool kit to aid in

the disassembly and assembly of the applicator dur-

ing servicing.

74035-21

#65R-1 Test Cap

74035-22

#98-1 Test Cap

74035-23

#63-1 Test Cap

74035-24

#48-1 Test Cap

74035-25

#481-1 Test Cap

74035-XX TEST AIR CAPS AND

GAUGE ASSEMBLY

Part #

Description

A11922-00

Valve Removal Tool

A10766-00

Valve Seat Removal Tool

76772-00

Retaining Ring Spanner

A10400-00

Seal Carrier Tool

79203-00 TOOL KIT

Part #

Description

Figure 34: 79203-00 Tool Kit

The A11284-00 support and rod removal tool is also

available.

A11284-00

A11922-00

A10766-00

A10400-00

76772-00

AA-08-01.1
