Evolver 303 Dual Purge Robotic Atomizers - Parts Identification
79151-00
Needle Shaft
1
7723-06
Piston, U-Cup
1
79001-28
O-Ring, Solvent Proof
1
79001-29
O-Ring, Solvent Proof
1
13076-13
O-Ring
1
RME-38
Spring
1
RME-32
Seal
1
79001-01
O-Ring, Solvent Proof
4
79001-04
O-Ring, Solvent Proof
1
79001-06
O-Ring, Solvent Proof
3
79001-05
O-Ring, Solvent Proof
1
A10411 SPRAY HEAD
REPAIR KIT
Part #
Description
Qty

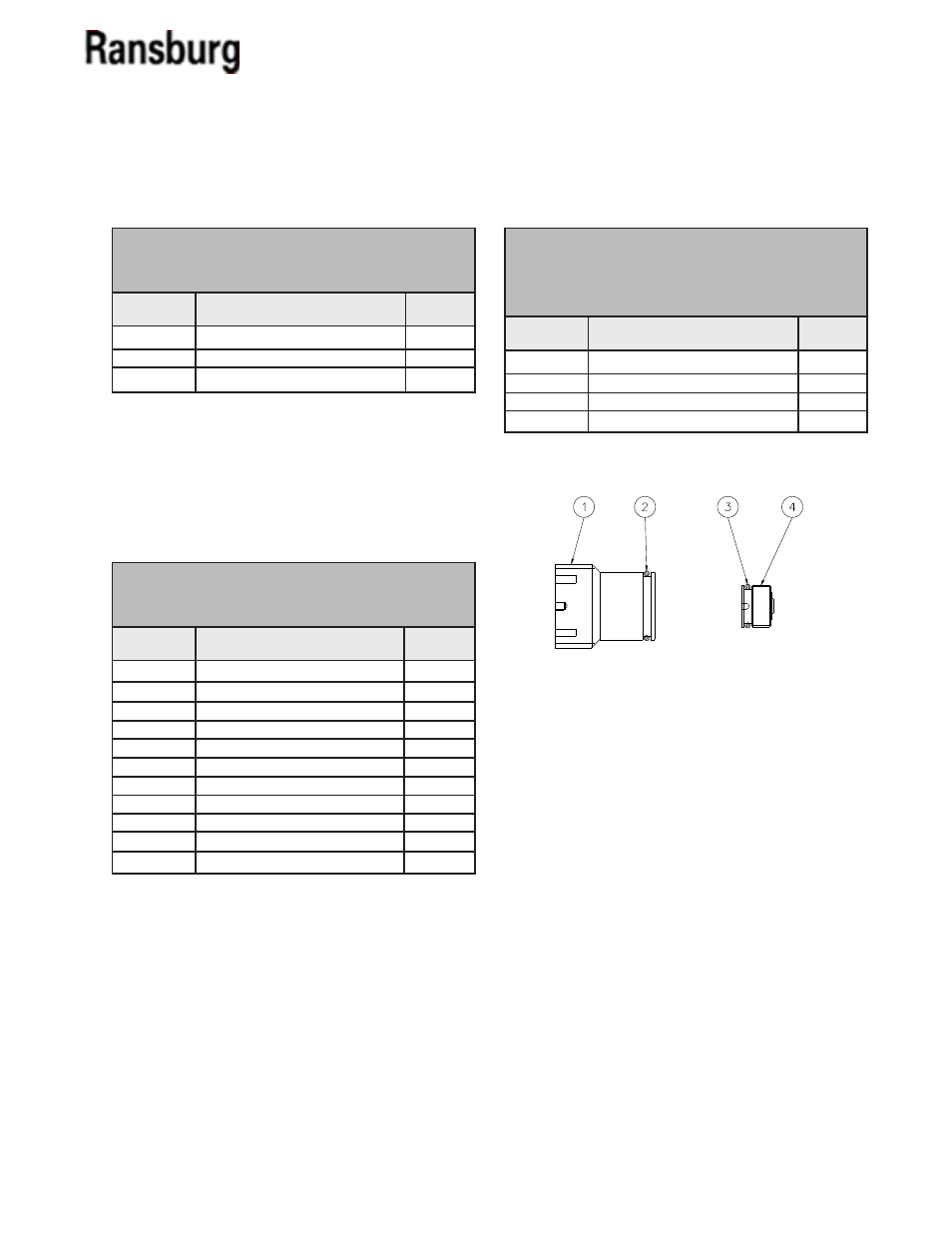

Figure 36: 77620-00 Valve Plug Assembly
A10411-00 Spray Head Repair Kit
Available for purchase as a kit for the common spray
head parts that require replacement. This kit contains
parts for one applicator head.
77620-00 Valve Plug Kit
Available for purchase is a Valve Plug Kit than can
be used in place of valves and seats to convert the
applicator to a single purge applicator.
79244-00
Plug
1
77618-00
Plug Seat
1
79001-19
O-Ring, Solvent Proof
1
79001-14
O-Ring, Solvent Proof
1
77620-00 VALVE PLUG KIT
(Optional - Use In Place Of
Valve & Seat)
Part #
Description
Qty
A10410-00 Spray Head O-Ring Kit
Available for purchase as a kit containing all of the
o-rings used for a single Evolver 303 dual purge spray
head. This kit can be purchased to replace o-rings.
79001-04
O-Ring, Solvent Proof
1
79001-06
O-Ring, Solvent Proof
1
79001-05
O-Ring, Solvent Proof
1
A10410-00 SPRAY HEAD
O-RING KIT
Part #
Description
Qty
