Evolver 303 Dual Purge Robotic Atomizers - Parts Identification

59

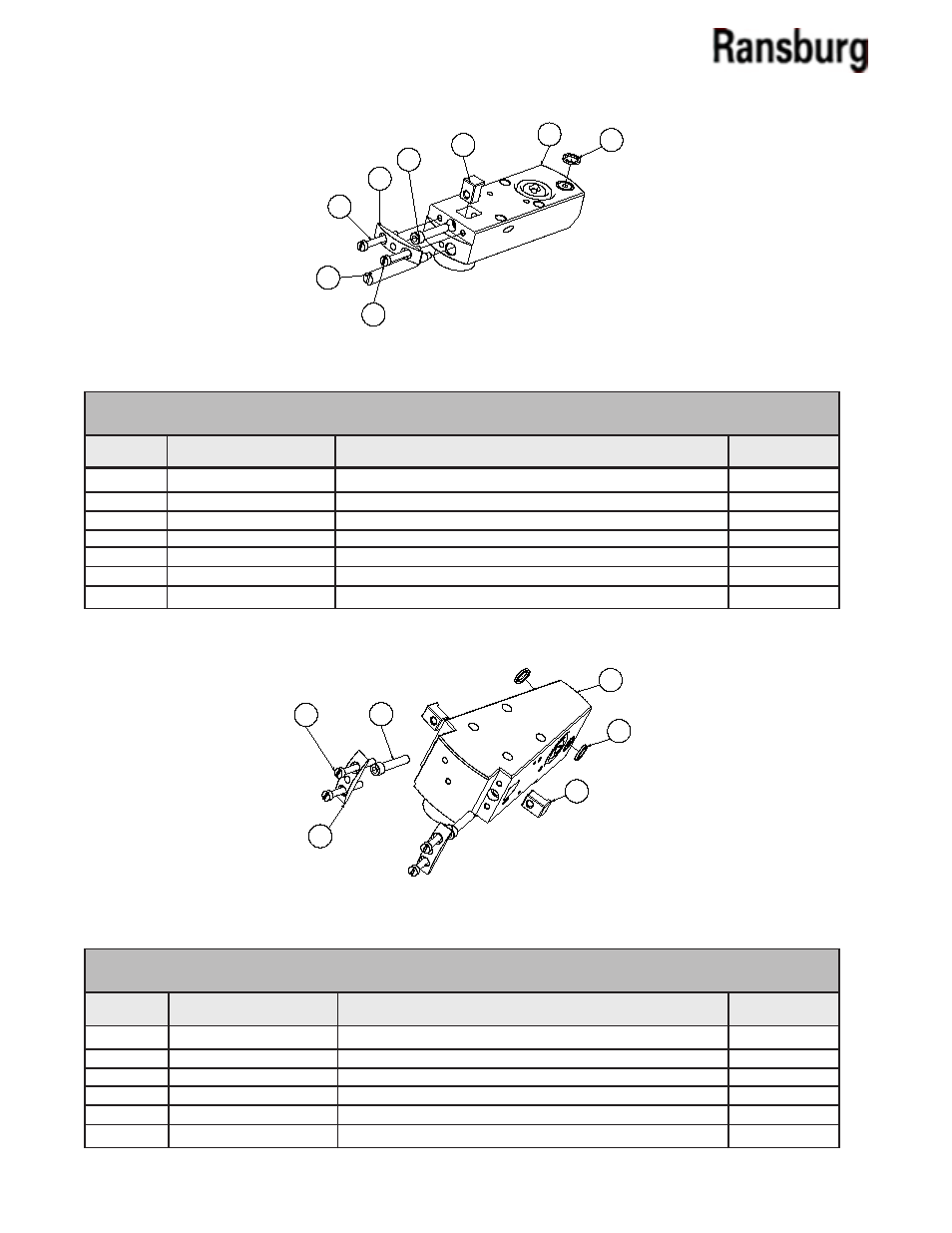

Figure 29: 79180-00 Single Head 90

°

6

1

7

2

3

4

5

5

1

79189-00

Assembly, Mounting Block 90

° Single Head

1

2

79173-00

Block, Locking

1

3

79174-00

Screw, Nylon 1/4-20 X 1-1/4" Long

1

4

79184-00

Plate, Retention

1

5

79149-00

Screw, Retaining #10-32 X .50" Long NY

2

6

79194-00

Plug, Fluid Flush

1

7

A10612

Square Cut Ring, Solvent Proof

1

Item #

Part #

Description

Qty

79180-00 SINGLE HEAD 90

° - PARTS LIST (Figure 29)

Figure 30: 79224-00 Dual Head 90

°

6

4

1

3

2

5

1

79227-00

Assembly, Mounting Block 90

° Dual Head

1

2

79173-00

Block, Locking

2

3

79174-00

Screw, Nylon 1/4-20 X 1-1/4" Long

2

4

79184-00

Plate, Retention

2

5

79149-00

Screw, Retaining #10-32 X .50" Long NY

4

6

A-10612

Square Cut Ring, Solvent Proof

2

Item #

79224-00 DUAL HEAD 90

° - PARTS LIST (Figure 30)

Part #

Description

Qty

AA-08-01.1
